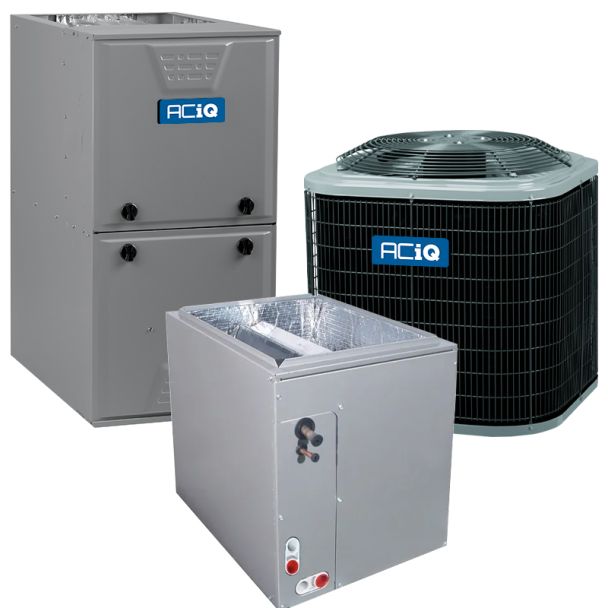

Aciq R5A5S60AKAWA / EAM5X60M24A / N96MSN1402422A Gas Furnace and Air Conditioner System 140,000 BTU (5 Ton Pack, Multi-Positional) Replacement N95ESN1402422A

Product Description

Aciq R5A5S60AKAWA / EAM5X60M24A / N96MSN1402422A is a matched HVAC package that combines a 140,000 BTU 96% AFUE multi-positional gas furnace, a 5 ton 13.8 SEER2 air conditioner condenser, and a 5 ton multi-positional cased evaporator coil. The furnace uses an ECM blower and is field-convertible to propane; the condenser is a single-stage scroll unit pre-charged with R454B for a 15-foot line set; the coil includes a factory-installed TXV.

• Furnace: 140,000 BTU input, 96% AFUE, ECM blower, single-stage burner, upflow/downflow/horizontal multi-positional, field-convertible to propane
• Condenser: 5 ton (60,000 BTU), 13.8 SEER2, single-stage scroll compressor, pre-charged with R454B (A2L) for 15-foot line set, 208/230 V 1ph 60 Hz
• Evaporator coil: 5 ton multi-positional cased A-coil with factory-installed TXV, sweat connections (3/8" liquid, 7/8" suction), UL listed

Product Highlights

Matched 5-ton HVAC package with 140,000 BTU 96% AFUE furnace, 13.8 SEER2 R454B pre-charged condenser, multi-positional cased evaporator coil with TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A5S60AKAWA / EAM5X60M24A / N96MSN1402422A

Technical Specifications

• Package MPNs: R5A5S60AKAWA / EAM5X60M24A / N96MSN1402422A
• Manufacturer Brand: Aciq
• Furnace MPN: N96MSN1402422A
• Furnace Heating BTU: 140,000
• Furnace AFUE: 96%
• Furnace Blower Motor: ECM
• Furnace Maximum CFM: 2105
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Burner Stages: Single
• Furnace Fuel Type: Natural Gas (field-convertible to Propane)
• Furnace Dimensions (H x W x D): 35" x 24.5" x 29.5"
• Furnace Weight: 179 lb
• Furnace AHRI Certificate Number: 213148528
• Furnace Replaces: N95ESN1402422A
• Condenser MPN: R5A5S60AKAWA
• Condenser Cooling BTU: 60,000
• Condenser Tonnage: 5 Ton
• Condenser SEER2: 13.8
• Condenser Refrigerant: R454B (A2L)
• Condenser Compressor Type: Scroll
• Condenser Stages: Single Stage
• Condenser Refrigerant Charge: Pre-charged for 15' line set
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 7/8"
• Condenser Electrical / Input Voltage: 208/230 V, 1 Phase, 60 Hz
• Condenser Max Breaker Size: 50 Amps
• Condenser Min Breaker Size: 31.1 Amps
• Condenser Sound Level (dBA): 75
• Condenser Motor RPM: 1100
• Condenser Dimensions (H x W x D): 38 7/16" x 31 3/16" x 31 3/16"
• Condenser Weight: 215 lb
• Coil MPN: EAM5X60M24A
• Coil Tonnage: 5 Ton
• Coil Configuration: Multi-positional (works upflow/downflow/horizontal)
• Coil Style: A-Coil (cased evaporator coil)
• Coil Connection Type: Sweat
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 7/8"
• Coil Dimensions (H x W x D): 35" x 24 1/2" x 20 5/8"
• Coil Weight: 103 lb
• Coil Certification: UL Listed
