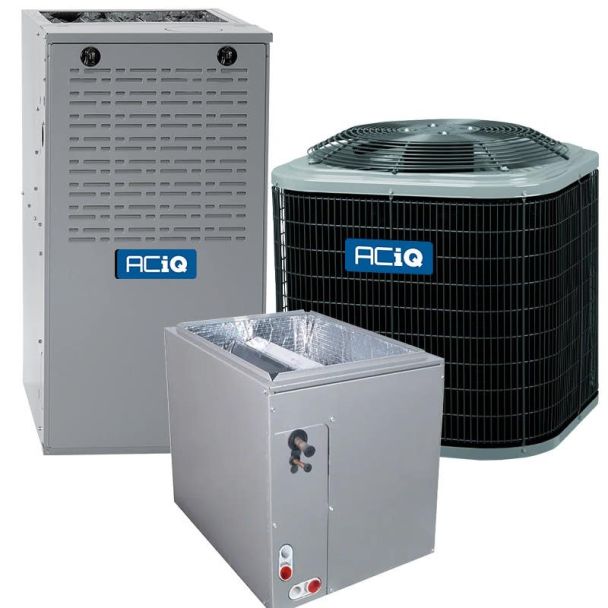

Aciq R5A5S60AKAWA / EAM5X60M24A / N80MSN1552420A 5 Ton 14.5 SEER2 154,000 BTU Multi-Positional System Replaces R4A5S60AKAWA

Product Description

The Aciq R5A5S60AKAWA / EAM5X60M24A / N80MSN1552420A is a matched 5 ton HVAC package that combines a 154,000 BTU 80% AFUE multi-positional gas furnace, a 5 ton air conditioner condenser pre-charged with R454B refrigerant, and a multi-positional cased evaporator coil with factory-installed TXV. The condenser uses a single-stage scroll compressor with a SEER2 rating (see specifications) and the furnace features a multi 18-speed constant torque blower and silicon nitride hot surface direct ignition.

• Matched package: R5A5S60AKAWA condenser, EAM5X60M24A cased coil, N80MSN1552420A furnace for 5 ton systems
• Furnace: 154,000 BTU input, 80% AFUE, multi-positional (upflow/downflow/horizontal), multi 18-speed constant torque blower, direct ignition
• Condenser and coil: 5 ton capacity, condenser pre-charged with R454B for 15' line set, single-stage scroll compressor, coil with factory TXV

Product Highlights

Matched 5 ton HVAC package with R454B refrigerant, multi-positional installation, single-stage scroll condenser, and factory TXV coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A5S60AKAWA / EAM5X60M24A / N80MSN1552420A

Technical Specifications

• Brand: Aciq
• MPN / Models (package): R5A5S60AKAWA / EAM5X60M24A / N80MSN1552420A
• Package Tonnage: 5 Ton
• Furnace Model: N80MSN1552420A
• Furnace Input BTU: 154,000 BTU
• Furnace AFUE: 80%
• Furnace Output BTU (approx): 123,200 (after 80% efficiency)
• Furnace Configuration: Multi-positional (Upflow/Downflow/Horizontal)
• Furnace Blower Motor: Multi 18-Speed Constant Torque (MCT)
• Furnace Max CFM: 1965
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane)
• Furnace Dimensions (H x W x D): 33.33" x 24.5" x 29"
• Condenser Model: R5A5S60AKAWA
• Condenser Cooling BTU: 60,000 BTU (5 Ton nominal)
• Condenser SEER2: 13.8 (note: product title lists 14.5 SEER2 — source inconsistency)
• Condenser Compressor Type: Scroll (single-stage)
• Condenser Refrigerant: R454B (A2L) - factory pre-charged for 15' line set
• Condenser Max CFM: 3900
• Condenser Decibel Level: 75 dBA
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 50 Amps
• Condenser Min Breaker Size: 31.1 Amps
• Condenser Dimensions (H x W x D): 38.44" x 31.19" x 31.19"
• Coil Model: EAM5X60M24A
• Coil Tonnage: 5 Ton
• Coil Configuration: Multi-positional (upflow/downflow/horizontal)
• Coil Refrigerant: R454B
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 7/8"
• Coil Style: A-Coil (cased)
• Coil Connection: Sweat
• Coil Dimensions (H x W x D): 35" x 24.5" x 20.63"
• Coil Feature: Factory-installed TXV kit
• AHRI Certificate Number (furnace): 213146216
• Exhaust Flue Requirement (furnace): Metal
• Certifications (coil): UL Listed
• Notes on Refrigerant Safety: Condenser uses A2L refrigerant (R454B) and must be paired with compatible components equipped with leakage detection per safety requirements
• Replaces (condenser): R4A5S60AKAWA
• Replaces (coil): EAM4X60L21A
• Furnace Equivalent (carrier): 58SB0A155E24--20
• Product ID: 171036
