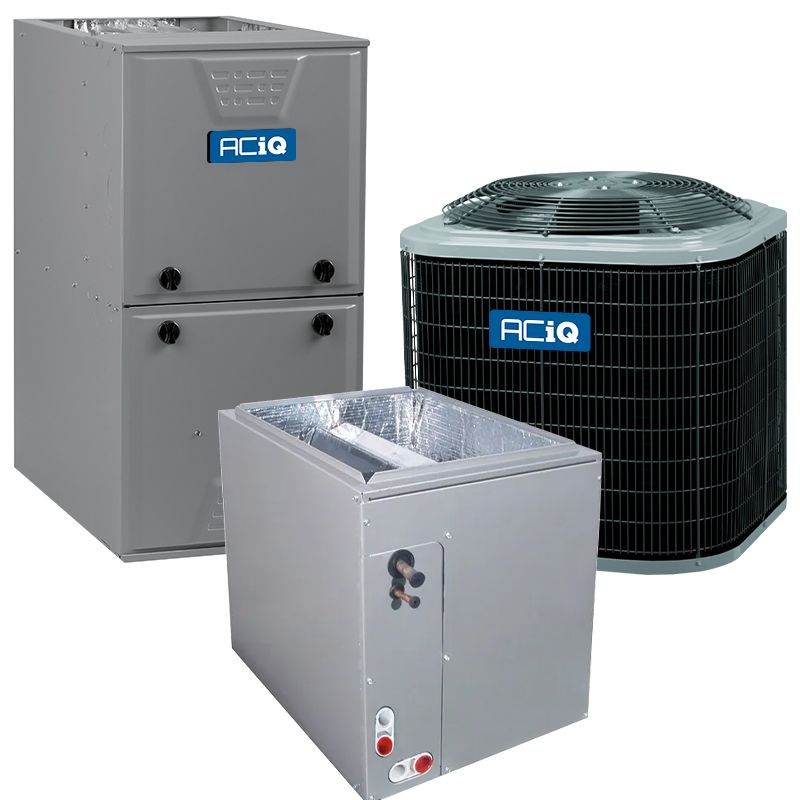

Aciq R5A5S60AKAWA / EAM5X60M24A / G96VTN1202422 Gas Furnace and Air Conditioner System 120,000 BTU (5 Ton)

Product Description

Aciq R5A5S60AKAWA / EAM5X60M24A / G96VTN1202422 is a matched 5-ton HVAC system bundle that includes a 120,000 BTU 96% AFUE two-stage gas furnace, a 5 ton 13.8 SEER2 condenser precharged with R454B, and a 5 ton multi-positional 24.5 in evaporator coil with factory TXV. The furnace provides variable speed blower operation and multi-positional installation; the condenser uses a scroll compressor and is precharged for a 15-foot line set.

• Furnace: 120,000 BTU input, 96% AFUE, two-stage burner, variable speed blower, 120 V electrical, multi-positional installation
• Condenser: 5 ton, 13.8 SEER2, scroll compressor, precharged with R454B for 15 ft line set, single-stage design, 208/230 V electrical
• Coil: 5 ton A-coil (cased) multi-positional evaporator with factory-installed TXV, sweat connections, 3/8 in liquid and 7/8 in suction line sizes

Product Highlights

Matched 5-ton system: 120,000 BTU 96% AFUE furnace, 13.8 SEER2 R454B condenser, and multi-positional TXV-equipped coil with specified electrical and line sizes.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A5S60AKAWA / EAM5X60M24A / G96VTN1202422

Technical Specifications

• Brand: Aciq
• Bundle Models (MPN): R5A5S60AKAWA / EAM5X60M24A / G96VTN1202422
• Package Components: Furnace (G96VTN1202422), Condenser (R5A5S60AKAWA), Evaporator Coil (EAM5X60M24A)
• Furnace Model: G96VTN1202422
• Furnace Heating BTU: 120,000 BTU
• Furnace AFUE: 96%
• Furnace Blower Motor: Variable speed
• Furnace Burner Stages: Two
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Electrical: 120 V, 1 Phase, 60 Hz
• Furnace Maximum CFM: 2190
• Furnace Dimensions (H x W x D): 35 in x 24.5 in x 29.5 in
• Furnace Weight: 190 lbs
• Furnace Exhaust Flue Requirement: Plastic / PVC
• Condenser Model: R5A5S60AKAWA
• Condenser Tonnage: 5 Ton
• Condenser Cooling BTU: 60,000 BTU
• Condenser SEER2: 13.8
• Condenser Compressor Type: Scroll (single-stage)
• Condenser Refrigerant: R454B (A2L) - precharged for 15 ft line set
• Condenser Maximum CFM: 3900
• Condenser Decibel Level: 75 dBA
• Condenser Motor RPM: 1100
• Condenser Electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser Max Breaker Size: 50 Amps
• Condenser Min Breaker Size: 31.1 Amps
• Condenser Dimensions (H x W x D): 38 7/16 in x 31 3/16 in x 31 3/16 in
• Condenser Weight: 215 lbs
• Coil Model: EAM5X60M24A
• Coil Tonnage: 5 Ton
• Coil Configuration: Multi-Positional
• Coil Style: A-coil (cased)
• Coil Refrigerant: R454B
• Coil Liquid Line: 3/8 in
• Coil Suction Line: 7/8 in
• Coil Connection: Sweat
• Coil Dimensions (H x W x D): 35 in x 24.5 in x 20 5/8 in
• Coil Weight: 103 lbs
• Coil Certification: UL Listed
• Package Components Summary: Matched 5-ton system: 120,000 BTU 96% AFUE furnace, 13.8 SEER2 R454B condenser, and multi-positional TXV-equipped coil with specified electrical and line sizes.
