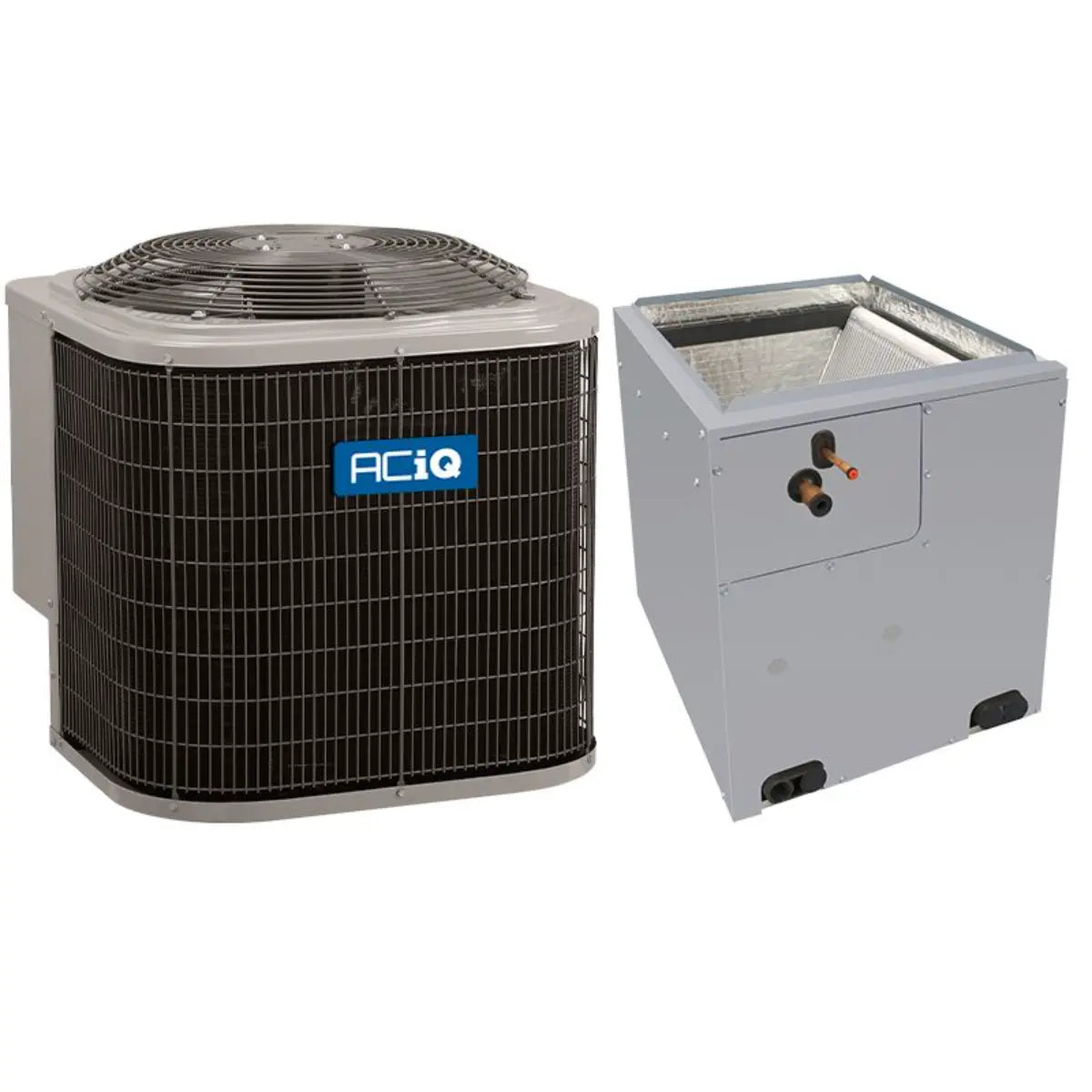

Aciq R5A5S60AKAWA / EAM5X60M24A 5 Ton 13.8 SEER2 Air Conditioner With Multi-Positional 24.5 inches Cased Coil (24.5 inches Coil) R4A5S60AKAWA / EAM4X60L21A

Product Description

Aciq R5A5S60AKAWA / EAM5X60M24A is a packaged 5-ton air conditioning solution that pairs a 13.8 SEER2 single-stage condenser with a 24.5 inch multi-positional cased evaporator coil. The condenser is pre-charged with R454B for a 15-foot line set and delivers 60,000 BTU cooling via a single-stage scroll compressor. The coil includes a factory-installed TXV kit and sweat connections for upflow, downflow, or horizontal installation.

• Condenser: 5 Ton, 60,000 BTU, 13.8 SEER2, single-stage scroll compressor, pre-charged for 15 ft line set (R454B)
• Evaporator coil: multi-positional A-coil, factory-installed TXV, sweat connections, liquid line 3/8" and suction line 7/8", UL listed
• Electrical and performance: 208/230 V, 1 Phase, 60 Hz; maximum airflow 3,900 CFM; condenser sound level 75 dBA

Product Highlights

5 Ton, 60,000 BTU cooling; R454B pre-charge for 15 ft line set; multi-positional 24.5" evaporator coil with factory TXV; 208/230 V single-phase operation

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A5S60AKAWA / EAM5X60M24A

Technical Specifications

• Brand: Aciq
• MPN: R5A5S60AKAWA / EAM5X60M24A
• Condenser MPN: R5A5S60AKAWA
• Coil MPN: EAM5X60M24A
• Tonnage: 5 Ton
• Cooling Capacity: 60,000 BTU
• SEER2 (Efficiency): 13.8
• Refrigerant: R454B (A2L)
• Compressor Type: Scroll
• Compressor Stages: Single Stage
• Maximum CFM: 3900
• Sound Level (dBA): 75
• Motor RPM: 1100
• Input Voltage: 208/230 V, 1 Phase, 60 Hz
• Power Phase: 1 Phase
• Condenser Dimensions (H x W x D): 38 7/16" x 31 3/16" x 31 3/16"
• Condenser Weight: 215.00 lbs
• Coil Dimensions (H x W x D): 35" x 24 1/2" x 20 5/8"
• Coil Weight: 103.00 lbs
• Coil Configuration: Multi-Positional (Upflow/Downflow/Horizontal)
• Coil Style: A-Coil
• Coil Connection: Sweat
• Coil Factory Features: Factory-installed TXV kit
• Liquid Line Size: 3/8"
• Suction Line Size: 7/8"
• Factory Charge: Pre-charged for 15 ft line set
• Filter Drier: Included (field-installed)
• Certifications: UL Listed (coil)
• Replaces Condenser: R4A5S60AKAWA
• Replaces Coil: EAM4X60L21A
• Max Breaker Size: 50 Amps
• Min Breaker Size: 31.1 Amps
