Aciq R5A5S48AKAWA / FTMA5B48L0CA 15.2 SEER2 variable speed air conditioner split system 4 ton (multi-positional) R5A5S48AKAAA

Product Description

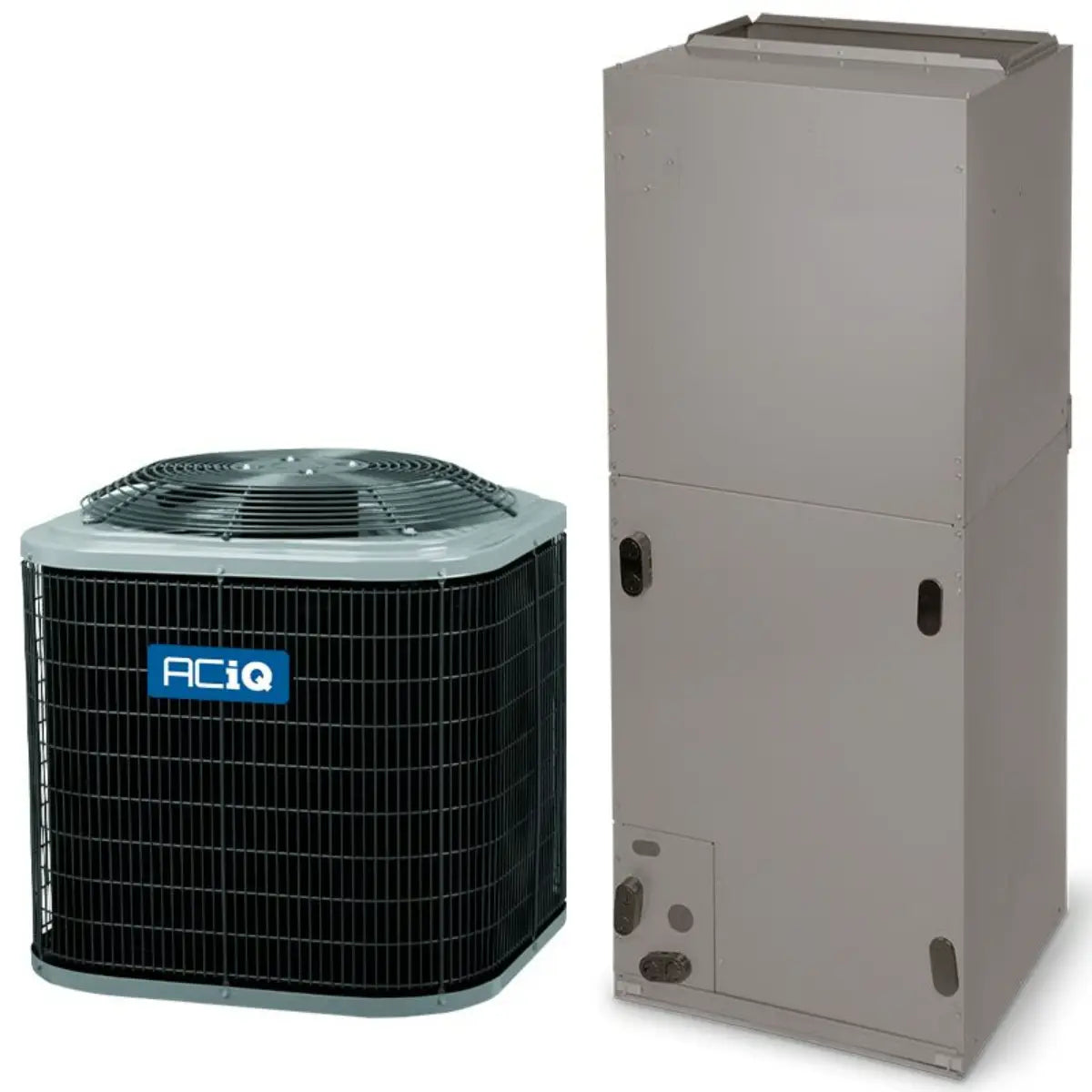

ACiQ R5A5S48AKAWA / FTMA5B48L0CA is a complete 4-ton split air conditioning system consisting of a 13.8 SEER2 condenser and a multi-positional variable-speed air handler, certified for R454B refrigerant and factory pre-charged for a 15-foot line set. The condenser is a single-stage scroll compressor rated at 48,000 BTU; the air handler includes a variable-speed blower, TXV, corrosion-resistant aluminum coil, washable filter, and insulated cabinet for upflow, downflow, or horizontal installation.

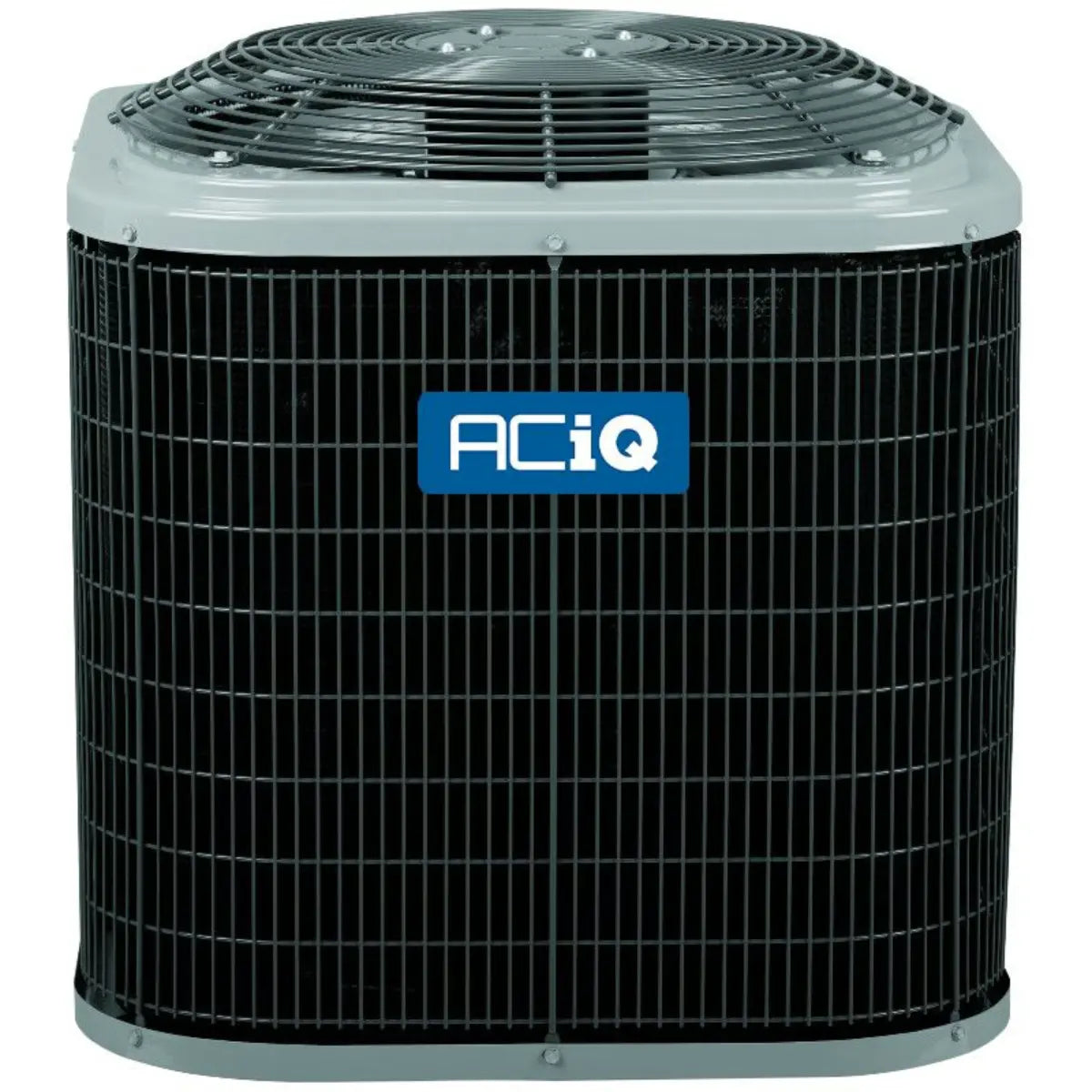

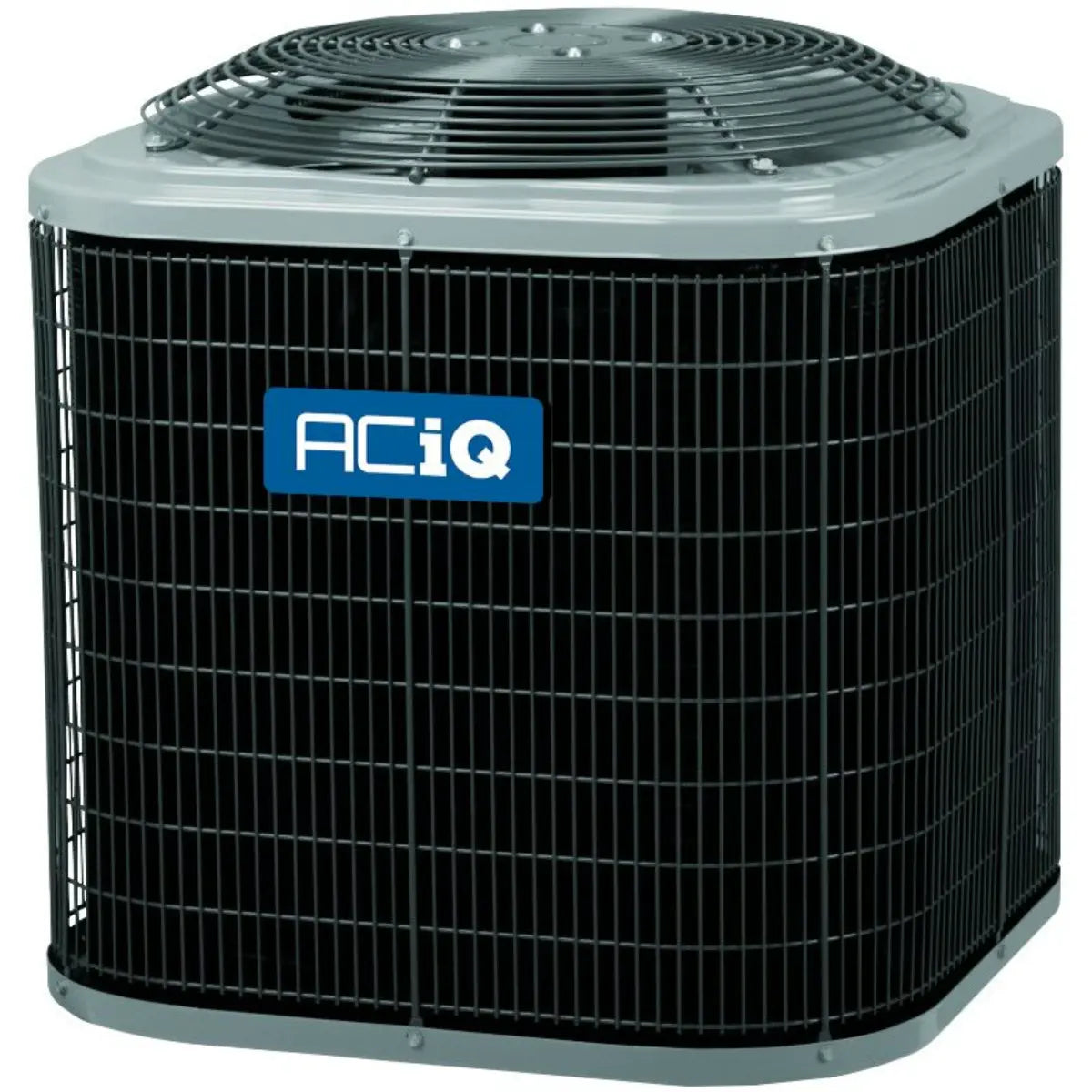

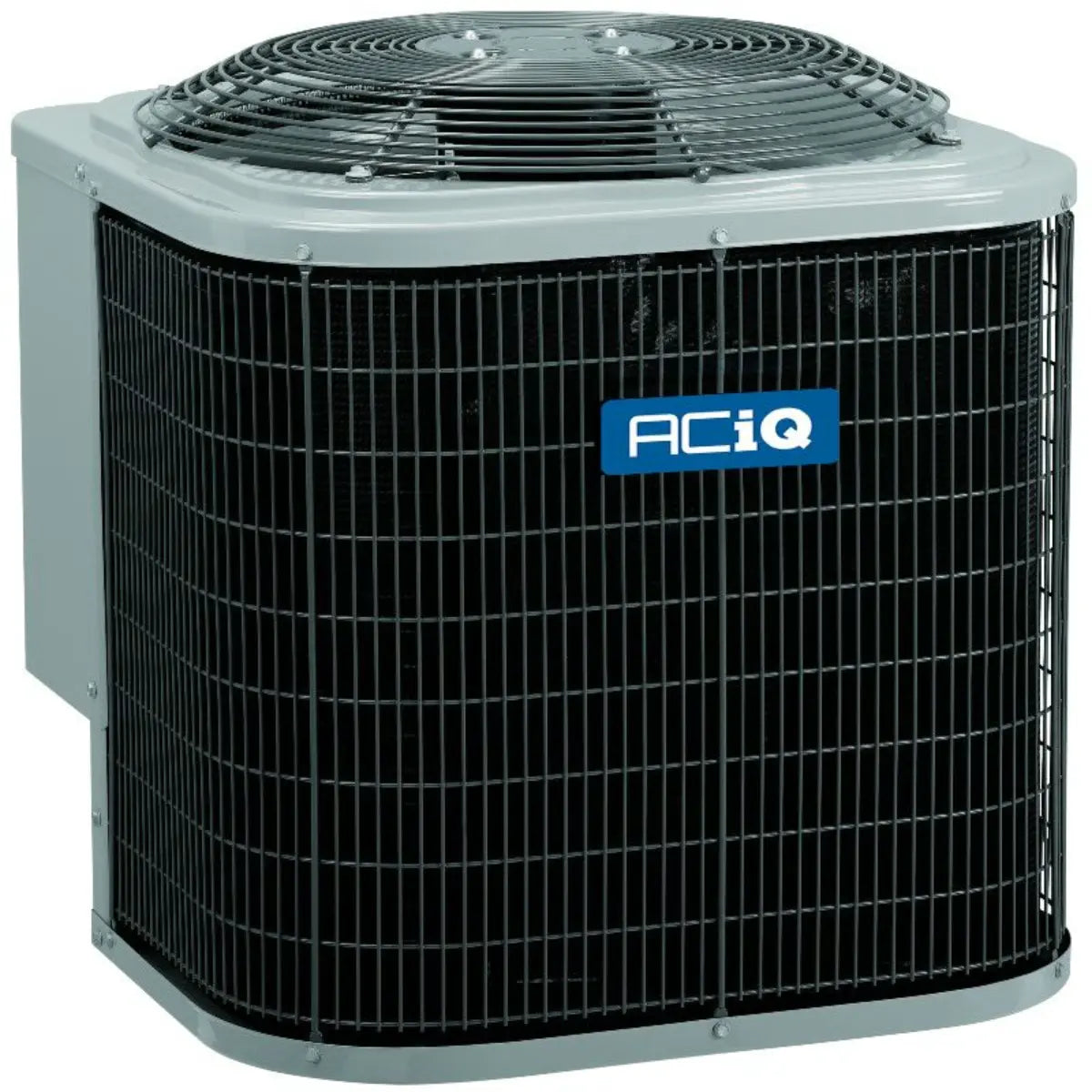

• Condenser: R5A5S48AKAWA — 48,000 BTU, 13.8 SEER2, scroll compressor, pre-charged for 15 ft line set

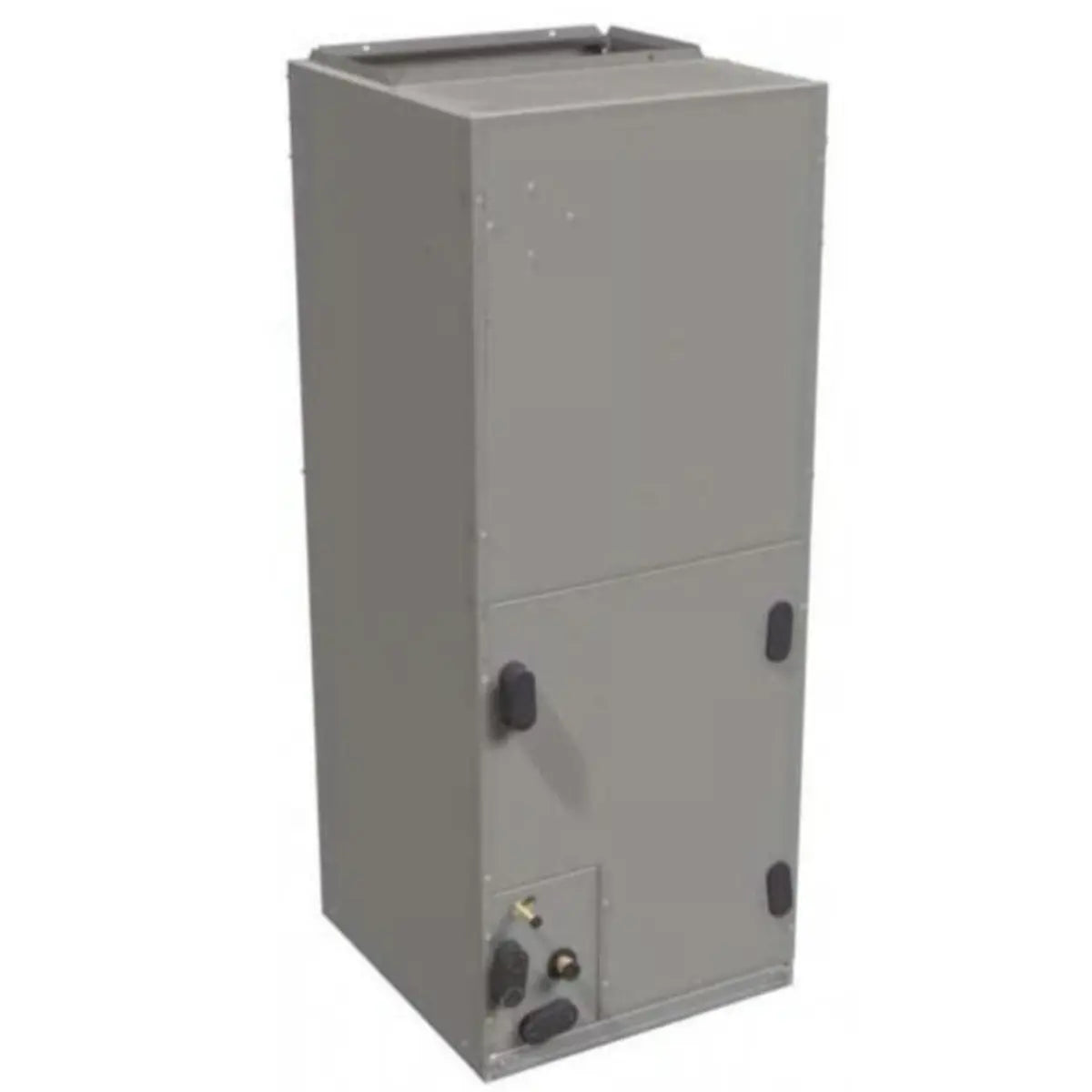

• Air handler: FTMA5B48L0CA — multi-positional variable-speed blower, factory TXV, all-aluminum coil, washable filter
• Refrigerant and safety: Uses R454B (A2L) low-GWP refrigerant; air handler includes factory-installed refrigerant leak dissipation

Product Highlights

Complete 4-ton split cooling system (condenser + multi-positional air handler) certified for R454B, system rated 15.2 SEER2, condenser 13.8 SEER2, factory pre-charged for 15-foot line set.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A5S48AKAWA / FTMA5B48L0CA

Technical Specifications

• Brand: ACiQ
• Model / MPN: R5A5S48AKAWA / FTMA5B48L0CA
• System Type: Split air conditioner system (Condenser + Air Handler)
• Tonnage: 4 Ton
• System SEER2: 15.2
• Condenser SEER2: 13.8
• Cooling Capacity (BTU): 48,000
• Refrigerant: R454B (A2L)
• Condenser Model: R5A5S48AKAWA
• Air Handler Model: FTMA5B48L0CA
• Compressor Type: Scroll (single stage)
• Maximum Airflow (CFM): 3100
• Sound Level (dBA): 75 dBA
• Input Voltage: 208/230 V
• Phase: 1 Phase
• Frequency: 60 Hz
• Condenser Max Breaker Size: 50 Amps
• Condenser Min Breaker Size: 29.1 Amps
• Air Handler Max Breaker Size: 7.1 Amps
• Liquid Line Size: 3/8"
• Suction Line Size: 7/8"
• Condenser Weight: 198.00 lbs
• Condenser Dimensions (H x W x D): 31 11/16" x 31 3/16" x 31 3/16"
• Air Handler Weight: 168.00 lbs
• Air Handler Dimensions (H x W x D): 53 7/16" x 21 1/8" x 22 1/16"
• Air Handler Configuration: Multi-Positional (upflow, downflow, horizontal)
• Air Handler Features: Variable-speed ECM blower, factory-installed TXV, fully insulated cabinet, sloped corrosion-free drain pan, washable filter, modular cabinet
• Coil Material: Corrosion-resistant all-aluminum coil (air handler)
• Filter: Washable; compatible with standard-size filters
• Factory Pre-Charged Line Set: Pre-charged for 15-foot line set (additional refrigerant required for longer line sets)
• Includes: Filter drier (included, field-installed)
• Certifications: UL Listed
• Optional Heat Kits: Electric heat kits available up to 20 kW
• AHRI Number: 216636824
• Replaces: R4A5S, R5A5S48AKAAA; FTMA4B48L0CA
