Aciq R5A5S18AKAWA / FTMA5X24L0BA 1.5 Ton 16 SEER2 Variable Speed Air Conditioner Split System (Multi-Positional) R4A5S18AKAWA

Product Description

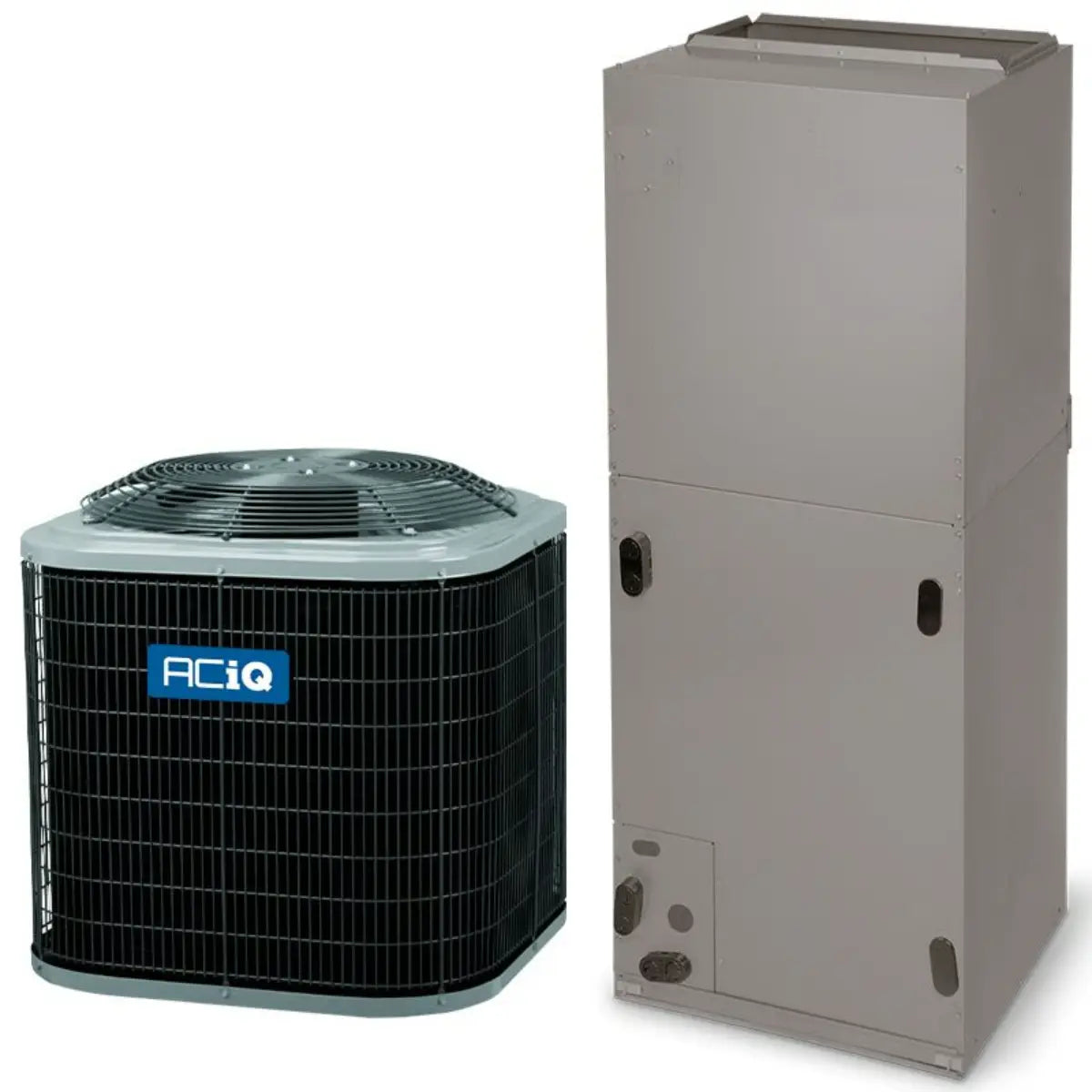

Aciq R5A5S18AKAWA / FTMA5X24L0BA is a matched split air conditioning system comprising a 1.5 ton outdoor condenser and a 2 ton multi-positional variable-speed air handler. The condenser is single-stage with a scroll compressor, rated 14.3 SEER2 and 18,000 BTU, pre-charged with R454B for a 15 ft line set; the air handler includes a variable-speed blower, TXV, factory-installed refrigerant leak dissipation, corrosion-resistant aluminum coil, and a washable filter.

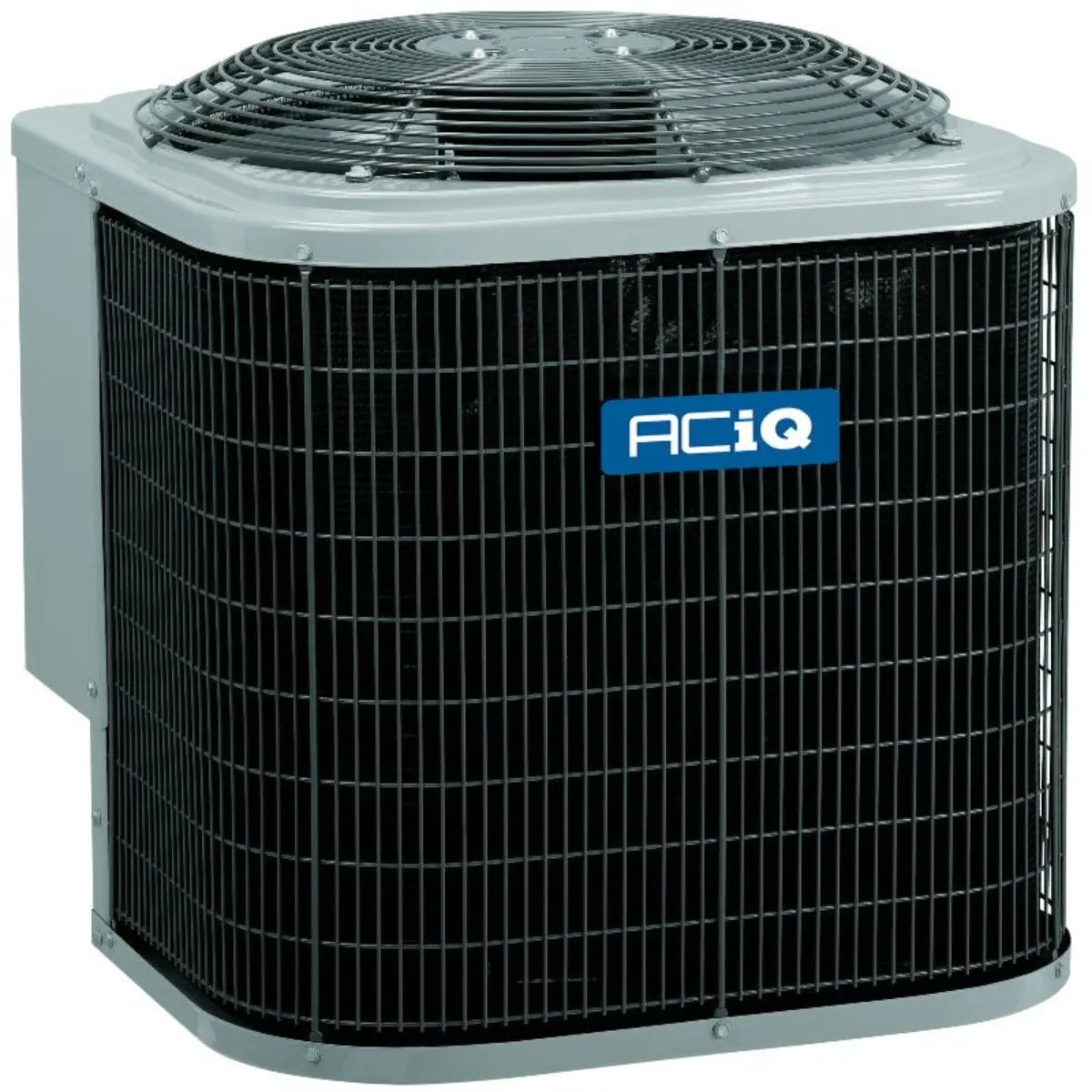

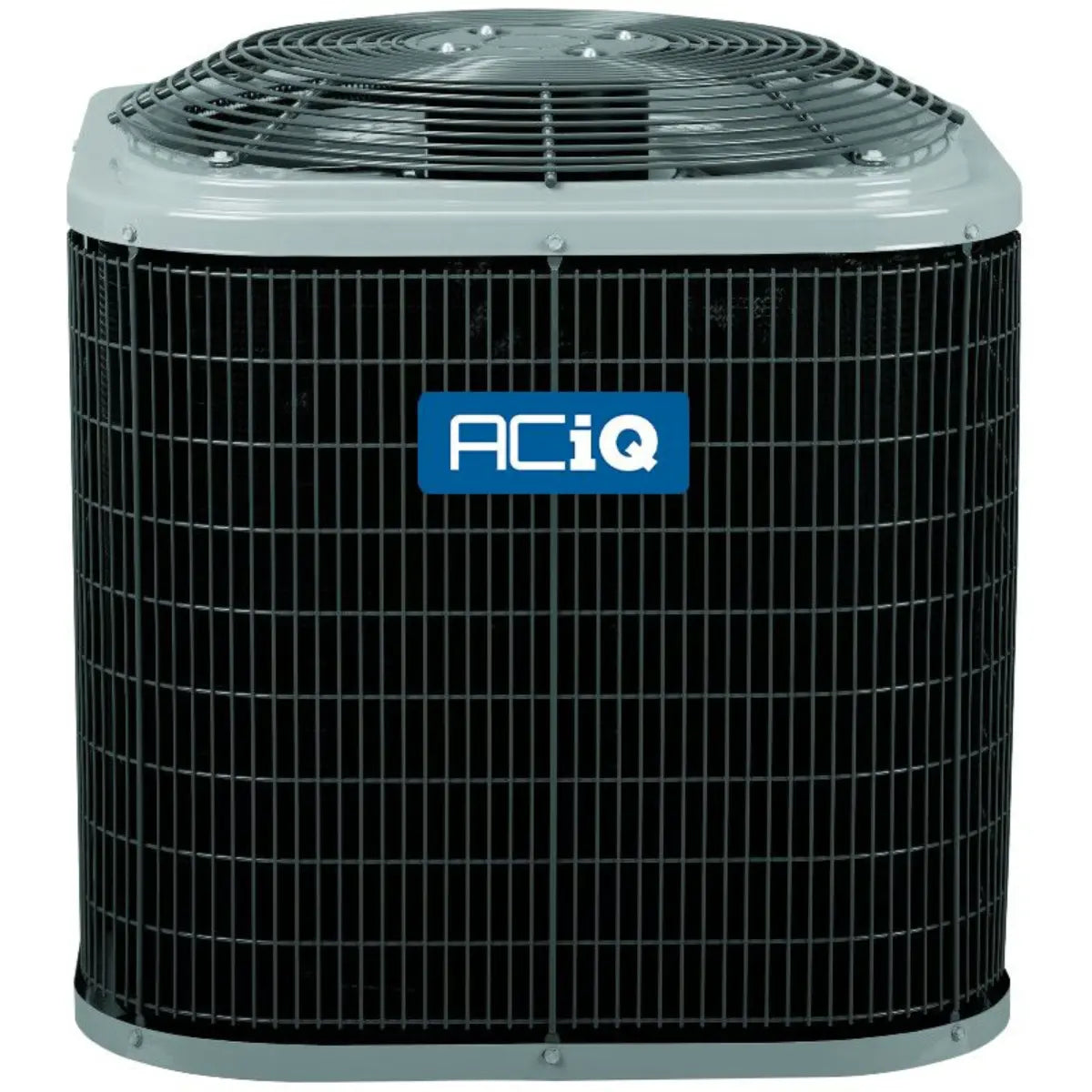

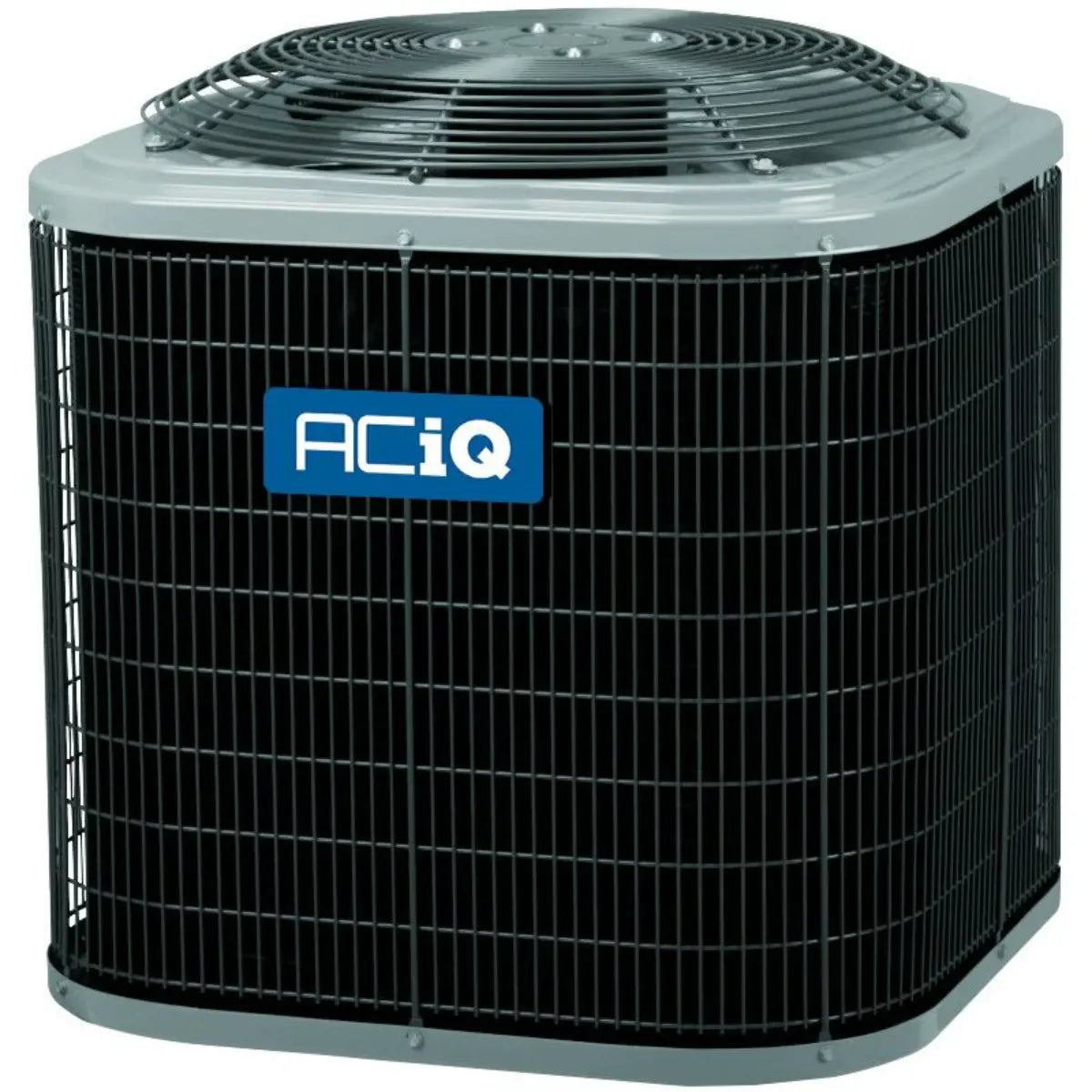

• Condenser: 1.5 ton, single-stage scroll compressor, 14.3 SEER2, 18,000 BTU, pre-charged for 15 ft with R454B

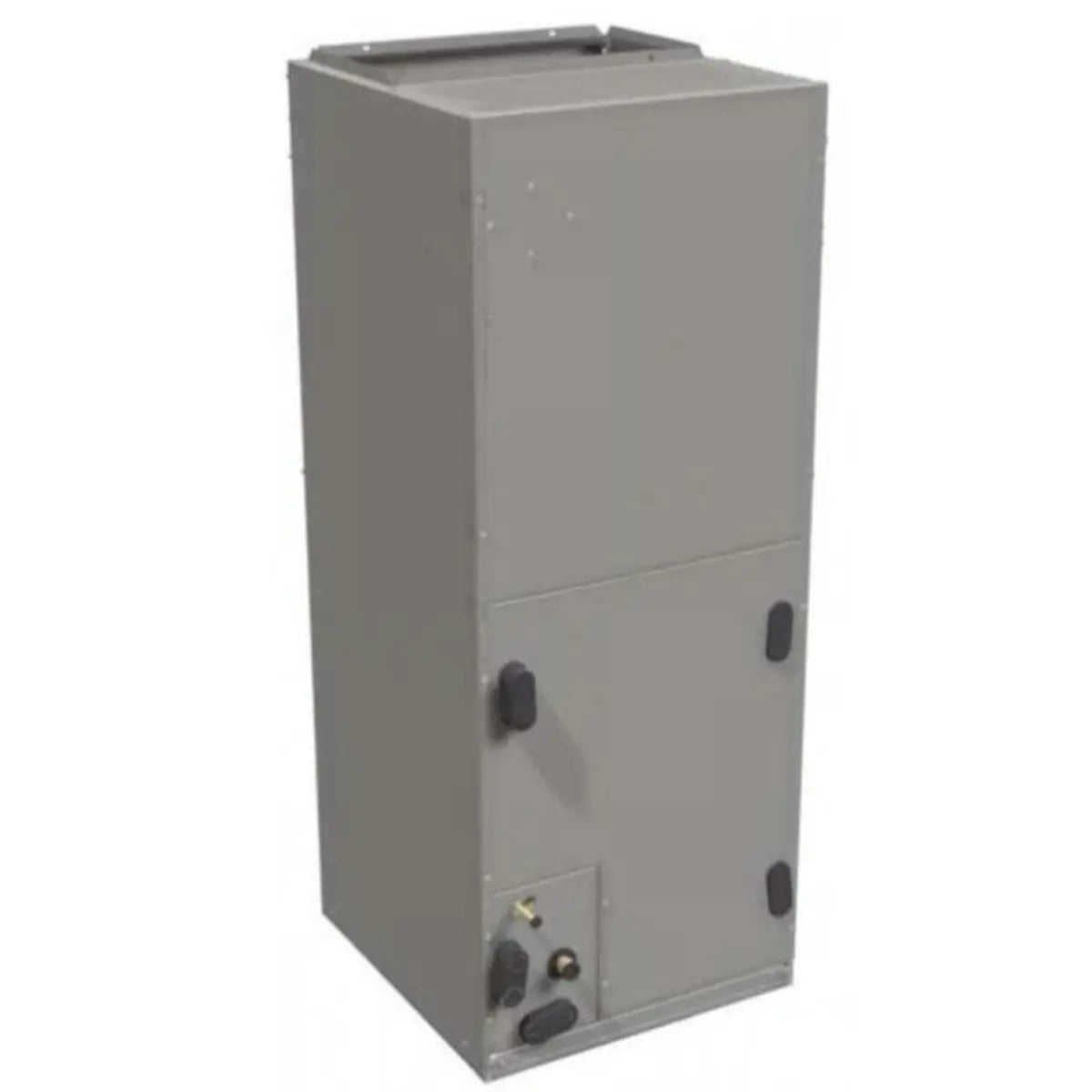

• Air handler: 2 ton multi-positional unit with variable-speed blower, thermostatic expansion valve (TXV), and factory-installed refrigerant leak dissipation
• Durable condenser cabinet with reinforced corners, included field-installable filter drier, corrosion-resistant aluminum coil, washable filter, and corrosion-free sloped drain pan

Product Highlights

Matched 1.5 ton condenser and 2 ton multi-positional variable-speed air handler pre-charged for 15 ft with R454B

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A5S18AKAWA / FTMA5X24L0BA

Technical Specifications

• Brand: Aciq
• MPN: R5A5S18AKAWA / FTMA5X24L0BA
• Condenser model: R5A5S18AKAWA
• Air handler model: FTMA5X24L0BA
• Condenser tonnage: 1.5 Ton
• Air handler tonnage: 2 Ton
• Condenser SEER2: 14.3
• Condenser cooling capacity: 18,000 BTU
• Compressor type: Scroll
• Condenser stages: Single stage
• Refrigerant: R454B (A2L)
• Pre-charged line set length: 15 ft
• Condenser maximum CFM: 2300
• Condenser sound level: 72 dBA
• Condenser motor RPM: 825
• Condenser horsepower: 1/12 HP
• Condenser liquid valve size: 3/8 in
• Condenser suction valve size: 5/8 in
• Electrical (condenser): 208/230 V, 1 phase, 60 Hz
• Electrical (air handler): 208/230 V, 1 phase, 60 Hz
• Condenser max breaker size: 15 Amps
• Condenser min breaker size: 10.9 Amps
• Air handler max breaker size: 15 Amps
• Air handler min breaker size: 5.0 Amps
• Air handler configuration: Multi-positional
• Air handler liquid line size: 3/8 in
• Air handler suction line size: 3/4 in
• Air handler features: Variable-speed blower; thermostatic expansion valve (TXV); factory-installed refrigerant leak dissipation; corrosion-resistant aluminum coil; washable filter; fully insulated cabinet; corrosion-free sloped drain pan
• Condenser dimensions (H x W x D): 31.6875 in x 31.1875 in x 31.1875 in
• Air handler dimensions (H x W x D): 42.6875 in x 17.625 in x 22.0625 in
• Condenser weight: 149 lbs
• Air handler weight: 124 lbs
• Certifications: AHRI certified; UL Listed
• Filter drier: Field-installed filter drier included
• Condenser replaces: R4A5S18AKAWA
