Aciq R5A5S18AKAWA FHMA5X18L0AA 1.5 Ton 15.5 SEER2 Air Conditioner Split System (Multi-Positional)

Product Description

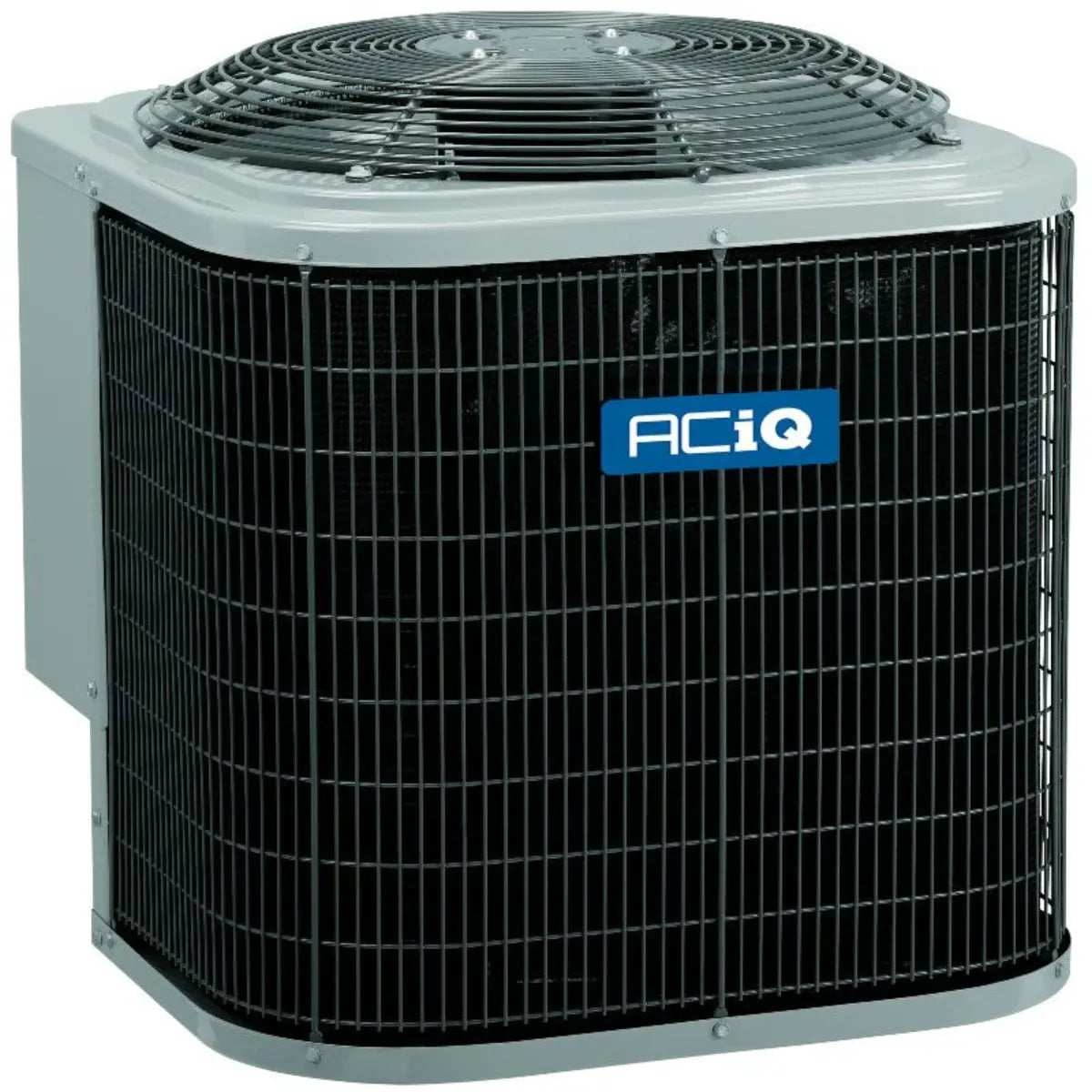

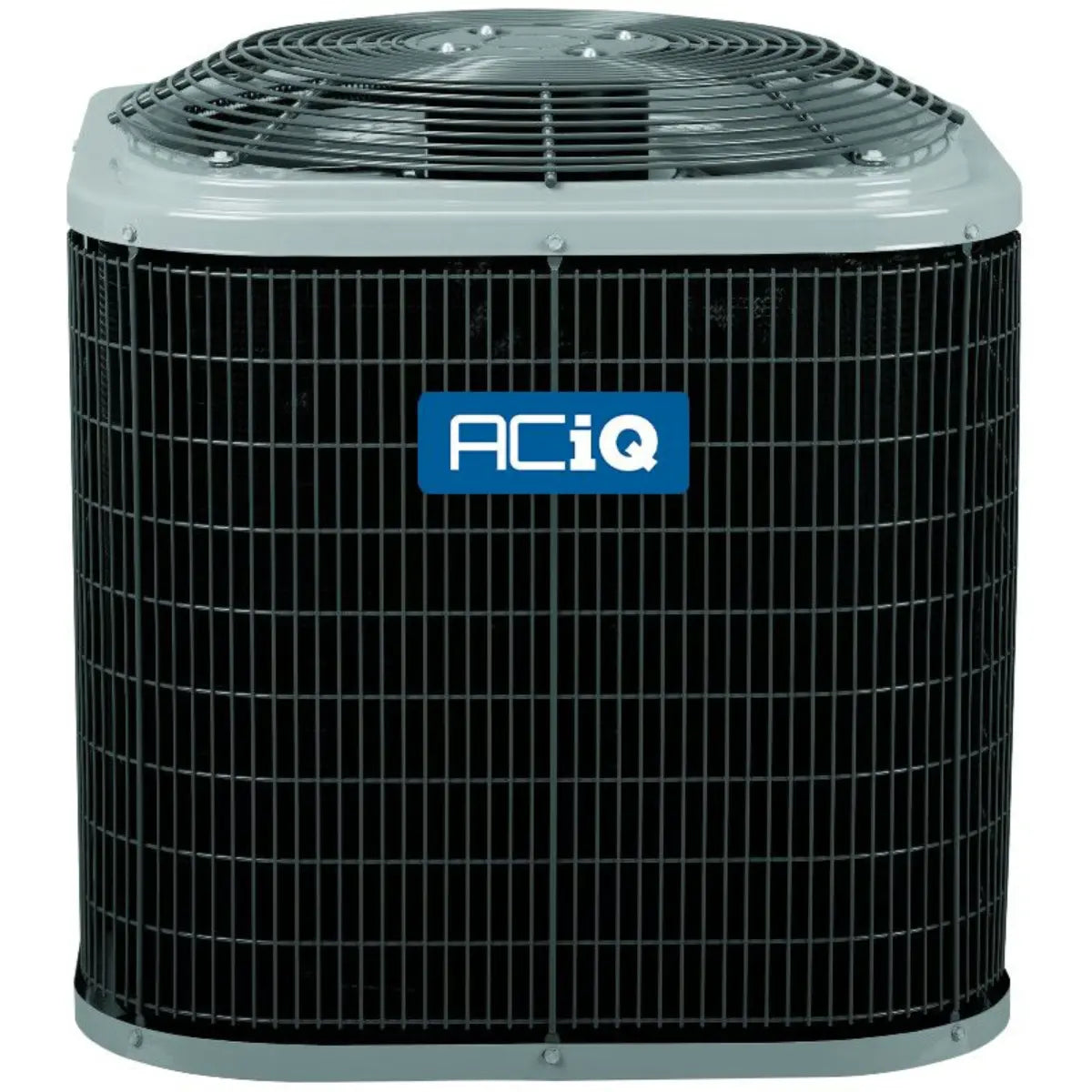

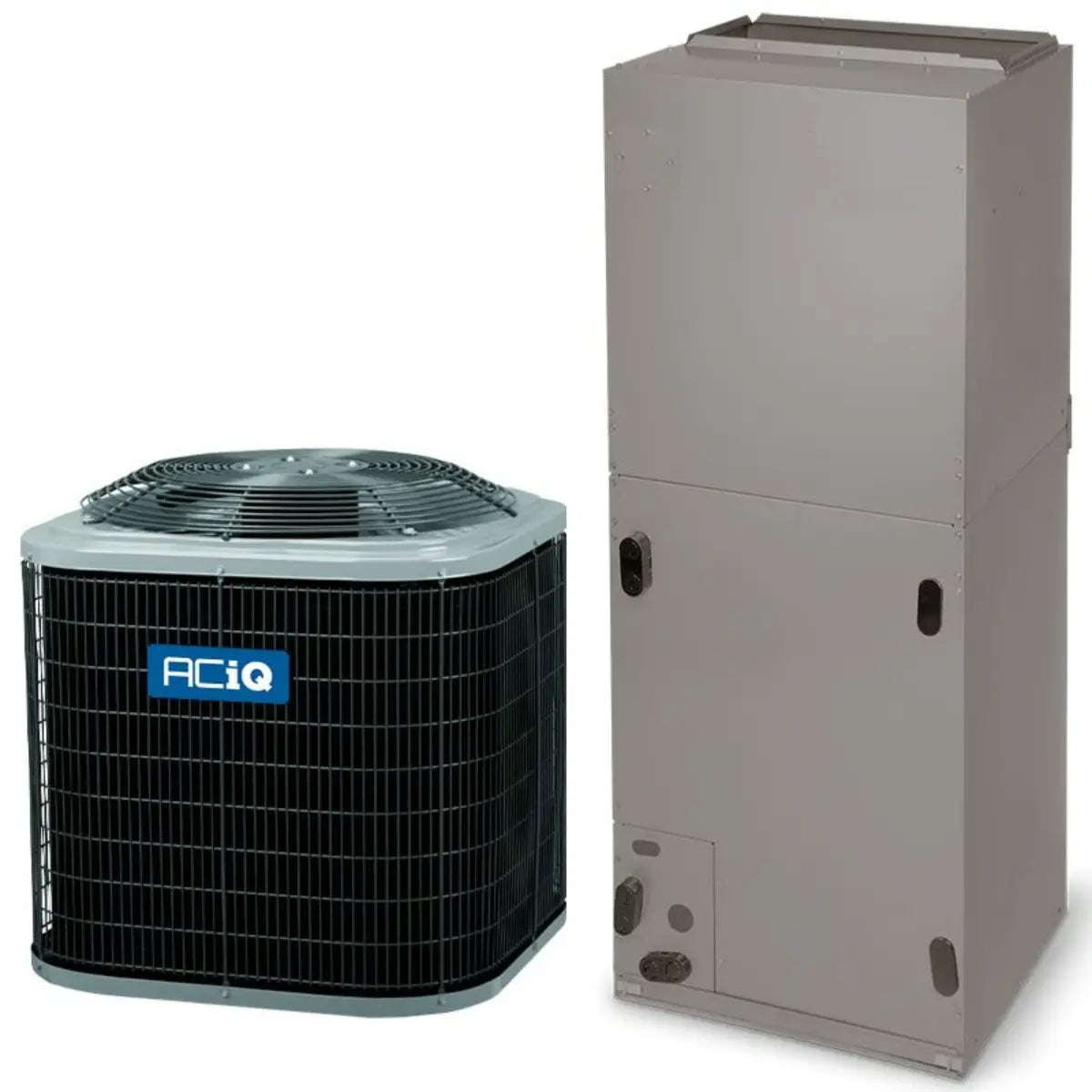

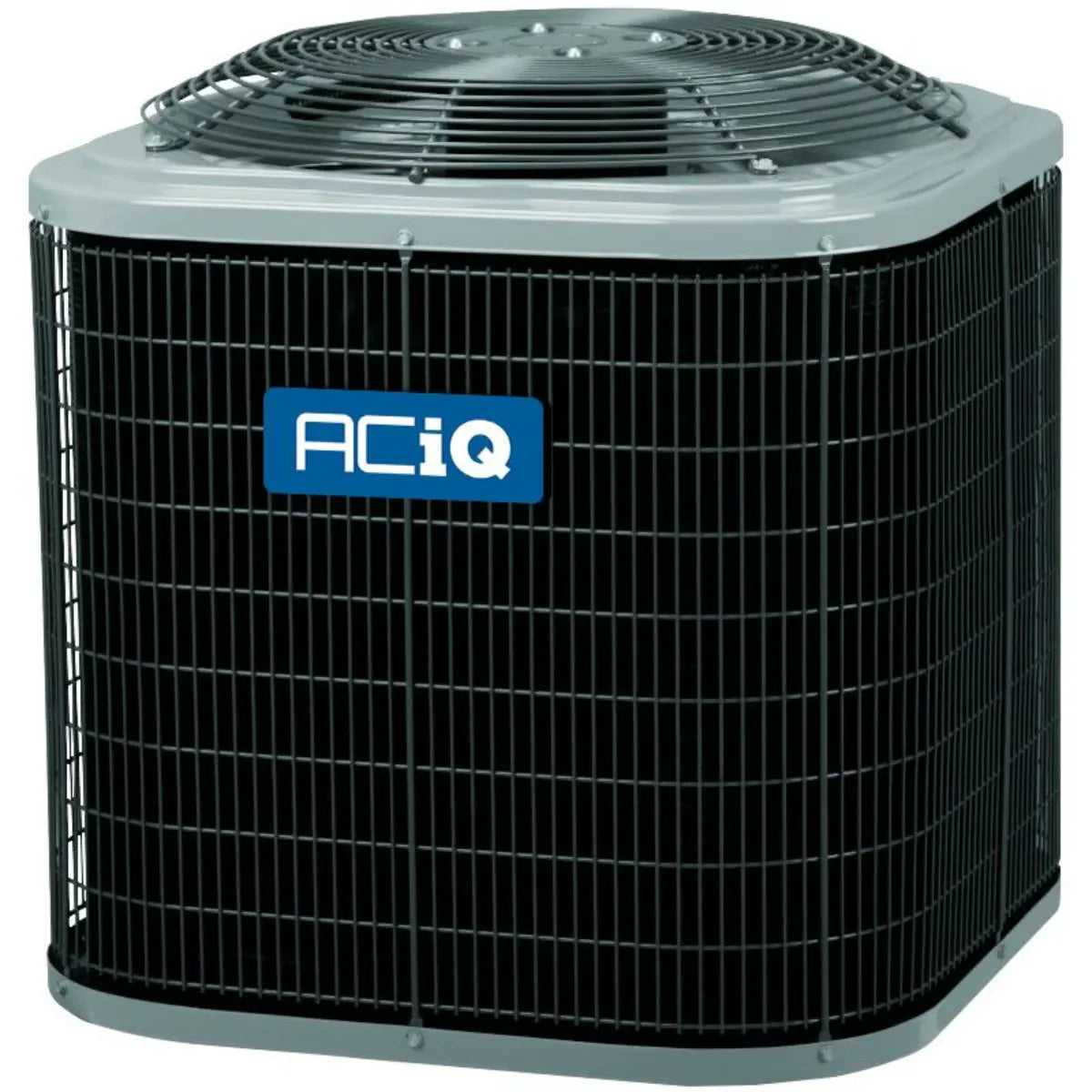

Aciq R5A5S18AKAWA / FHMA5X18L0AA is a matched 1.5 ton split air conditioning system pairing an R5A5S18AKAWA condenser with a FHMA5X18L0AA multi-positional air handler, certified for R454B refrigerant. The condenser uses a single-stage scroll compressor and is factory pre-charged for a 15-foot line set; the air handler features a 5-speed ECM blower and a factory-installed TXV for modulated refrigerant control.

• Condenser: 1.5 ton, single-stage scroll compressor, pre-charged for 15 ft line set, SEER2 14.3

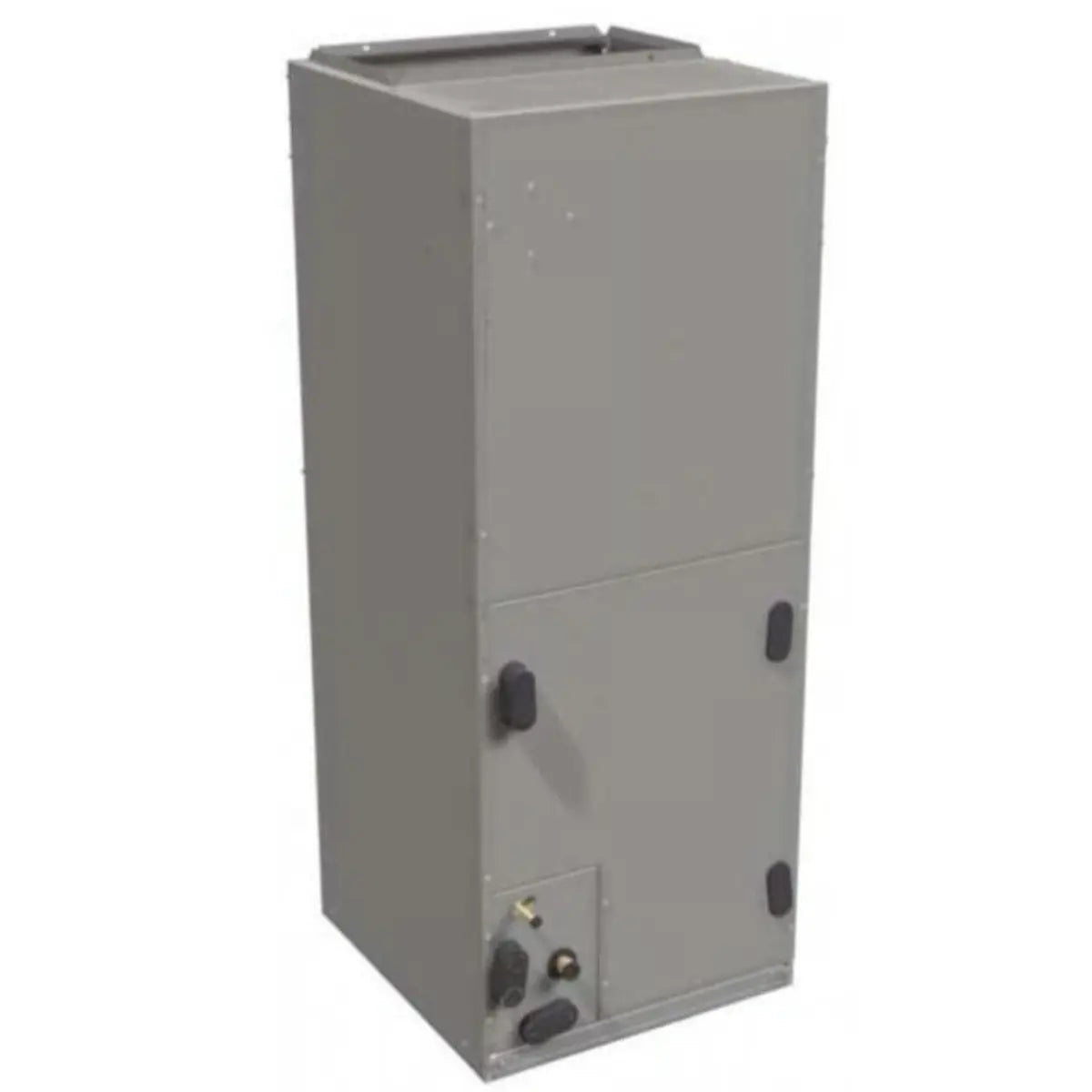

• Air handler: multi-positional (upflow/downflow/horizontal) with multi-tap 5-speed ECM blower and factory-installed TXV
• Electrical: 208/230 V 1 Phase 60 Hz; matched system certified for R454B (A2L) refrigerant

Product Highlights

Matched 1.5 ton condenser and multi-positional air handler certified for R454B; pre-charged 15 ft line set; factory TXV and multi-speed ECM blower.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A5S18AKAWA / FHMA5X18L0AA

Technical Specifications

• Brand: Aciq
• Model / MPN: R5A5S18AKAWA / FHMA5X18L0AA
• System type: Split system (condenser + air handler)
• Capacity (Tonnage): 1.5 Ton
• SEER2 (Condenser): 14.3
• Refrigerant: R454B (A2L)
• Compressor Type: Scroll (single stage)
• Blower Motor (Air Handler): Multi-tap 5-Speed ECM
• Maximum CFM (Air Handler): 525
• Condenser sound level: 72 dBA
• Condenser refrigerant charge: Pre-charged for 15' line set
• Pre-charged refrigerant line set length: 15 feet (factory pre-charged)
• Filter size (Air Handler): 13" x 20"
• Liquid line size: 3/8"
• Suction line size: 5/8"
• Input Voltage: 208/230 V, 1 Phase, 60 Hz
• Condenser max breaker size: 15 Amps
• Condenser min breaker size: 10.9 Amps
• Air handler max breaker size: 15 Amps
• Air handler min breaker size: 3.6 Amps
• Air handler horsepower: 1/3 HP
• Air handler configuration: Multi-positional (upflow/downflow/horizontal)
• Air handler features: Factory-installed TXV kit; fully insulated cabinet; compatible with AC-only and heat pump condensers
• Connection type: Sweat
• Condenser motor RPM: 825
• Condenser dimensions (H x W x D): 31 11/16" x 31 3/16" x 31 3/16"
• Air handler dimensions (H x W x D): 42 11/16" x 14 5/16" x 22 1/16"
• Condenser weight: 149.00 lbs
• Air handler weight: 120.00 lbs
