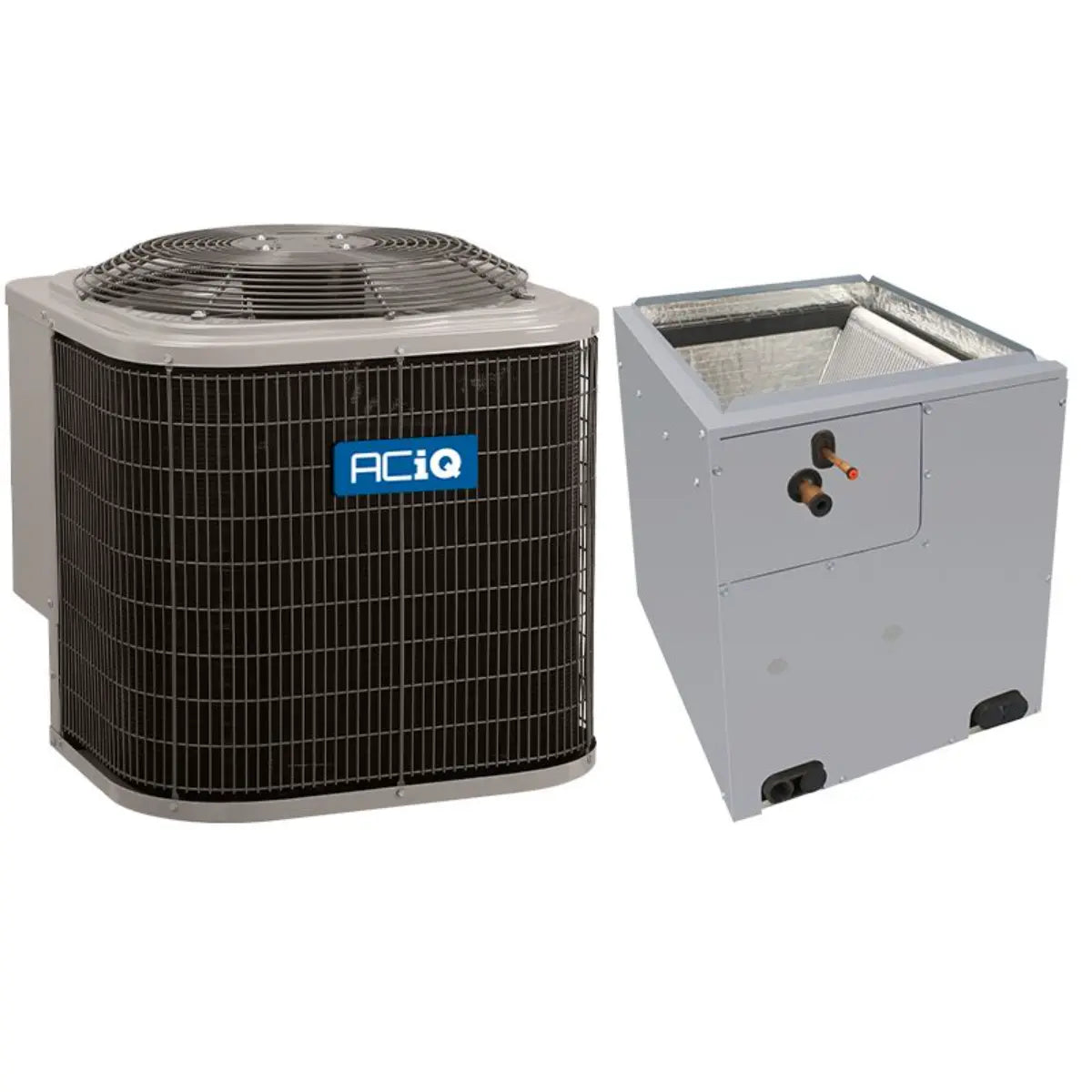

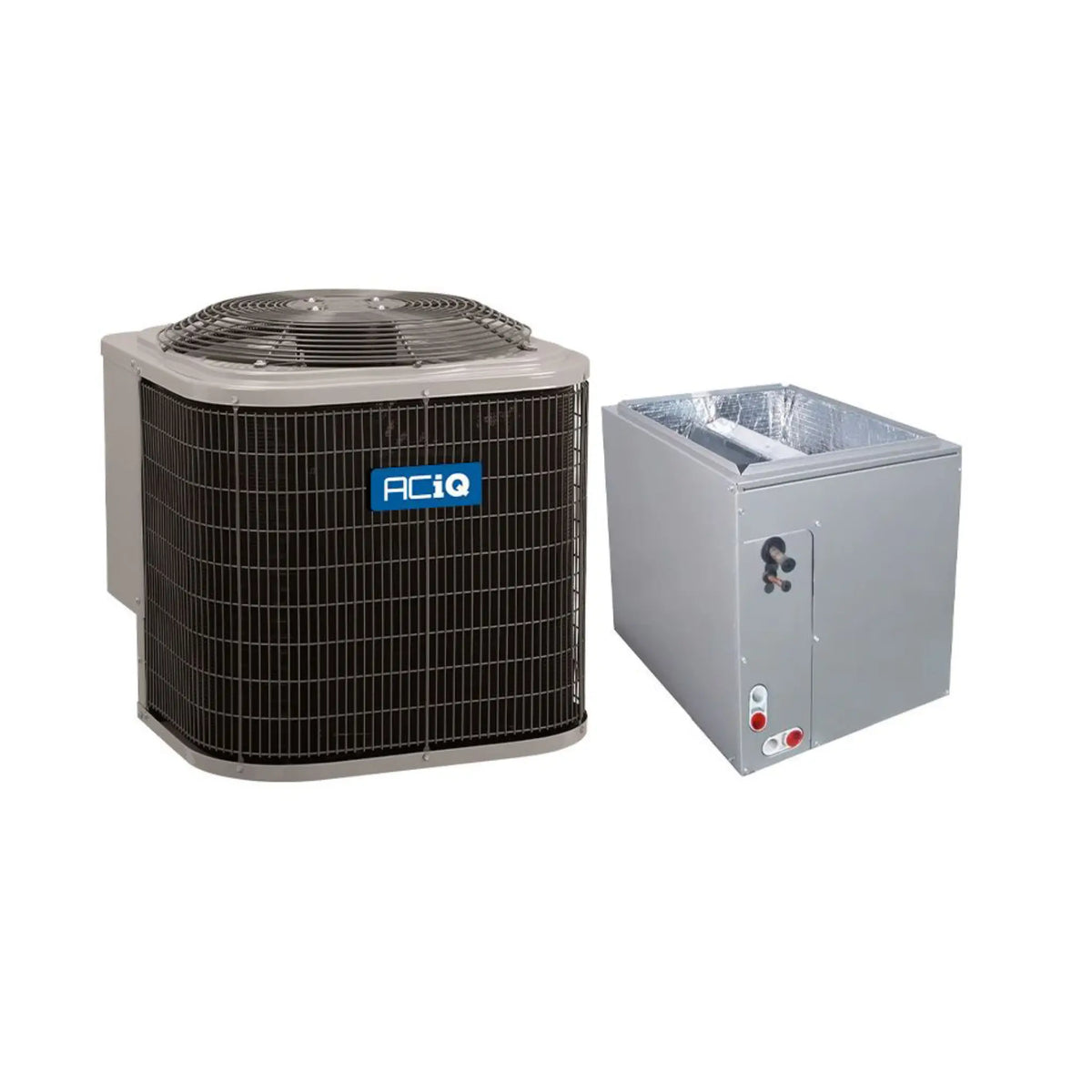

Aciq R5A4S60AKANA / EAM5X61M21A 5 Ton 13.4 SEER2 Air Conditioner with 21 inches Multi-Positional Cased Coil (replaces R4A4S60AKANA / EAM4X60L24A)

Product Description

The Aciq R5A4S60AKANA / EAM5X61M21A is a matched 5 ton cooling package that pairs an outdoor single-stage condenser with a 21" multi-positional evaporator cased coil. The condenser is pre-charged with R454B for a 15-foot line set, uses a scroll compressor, and is rated 13.4 SEER2 and 60,000 BTU with 208/230 V 1 phase, 60 Hz electrical. The coil includes a factory-installed TXV and the package includes a field-install filter drier.

• Condenser pre-charged with R454B for a 15-foot line set; single-stage scroll compressor; 13.4 SEER2, 60,000 BTU
• Multi-positional 21" evaporator cased coil with factory-installed TXV; sweat connections; compatible with upflow, downflow, horizontal installations
• Electrical: 208/230 V, 1 phase, 60 Hz; max airflow 4000 CFM; UL listed

Product Highlights

Matched 5 ton R454B package with 21" multi-positional coil, single-stage scroll condenser, factory pre-charge for 15' line set

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S60AKANA / EAM5X61M21A

Technical Specifications

• Brand: Aciq
• MPN: R5A4S60AKANA / EAM5X61M21A
• Model: R5A4S60AKANA / EAM5X61M21A
• System Type: Matched condenser and evaporator cased coil package
• Tonnage: 5 Ton
• Cooling Capacity (BTU): 60,000
• SEER2: 13.4
• EER2: 11.0-13.5
• Refrigerant: R454B
• Refrigerant Charge: Pre-charged for 15' line set
• Compressor Type: Scroll
• Condenser Stages: Single Stage
• Maximum Airflow (CFM): 4000
• Decibel Level (dBA): 74
• Input Voltage: 208/230 V
• Phase: 1
• Frequency: 60 Hz
• Max Breaker Size: 50 Amps
• Min Breaker Size: 31.1 Amps
• Connection Type: Sweat
• Liquid Line Size: 3/8"
• Suction Line Size: 1 1/8" (condenser) / 7/8" (coil)
• Coil Configuration: Multi-Positional (upflow, downflow, horizontal)
• Coil Style: A-Coil
• Coil Liquid Line: 3/8"
• Coil Suction Line: 7/8"
• Factory-installed TXV: Yes (coil)
• Filter Drier Included: Yes (field-installed)
• Condenser Dimensions (H x W x D): 31 11/16" x 31 3/16" x 31 3/16"
• Condenser Weight: 204 lb
• Coil Dimensions (H x W x D): 35" x 21" x 20 5/8"
• Coil Weight: 100 lb
• Condenser Replaces: R4A4S60AKANA
• Coil Replaces: EAM4X60L24A
• Certifications: UL Listed
