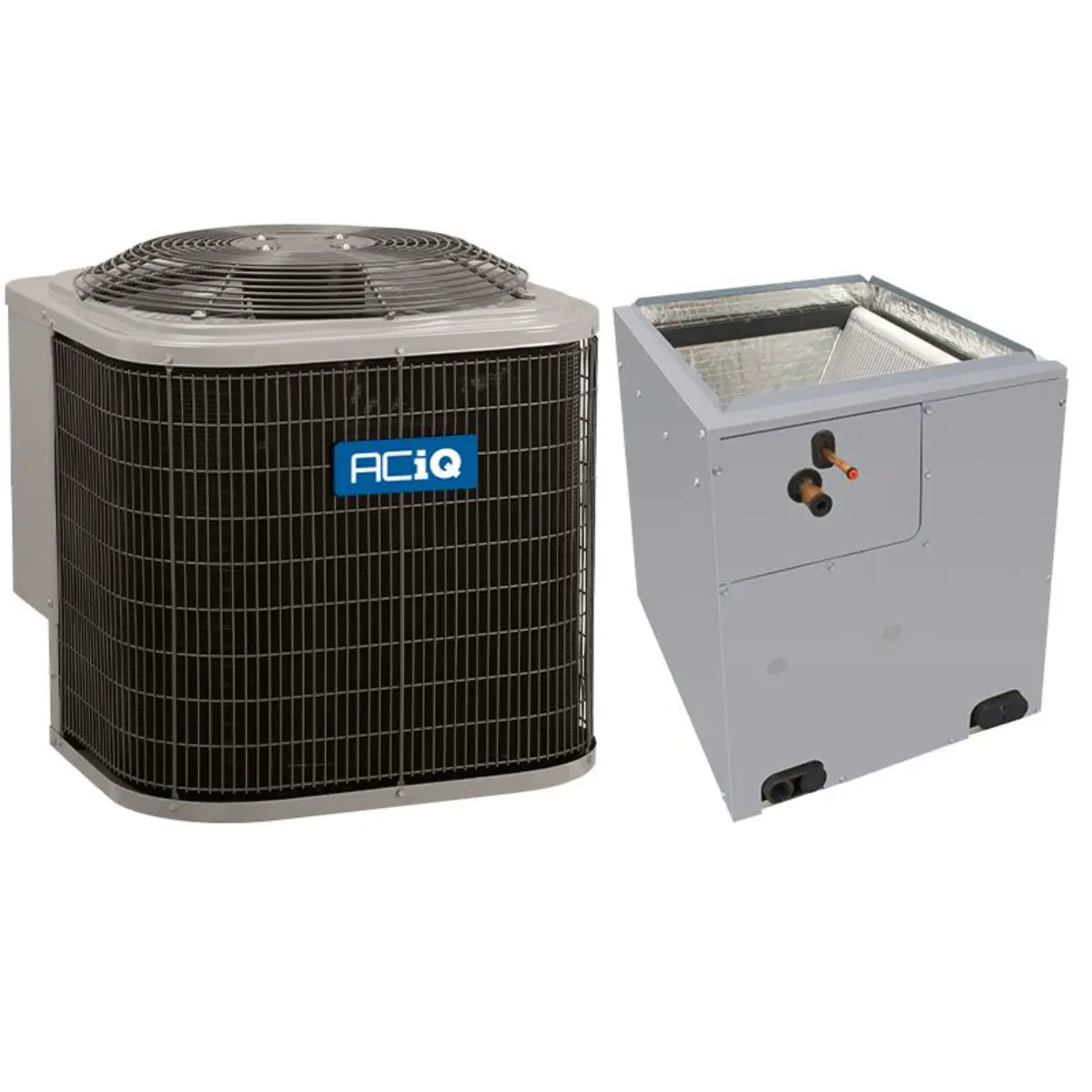

Aciq R5A4S60AKANA / EAM5X60M24A 5 Ton 13.4 SEER2 Air Conditioner With 24.5 inches Multi-Positional Cased Coil R5A4S60AKANA / EAM5X60M24A

Product Description

ACIQ R5A4S60AKANA / EAM5X60M24A is a 5-ton AC-only system package combining a R5A4S60AKANA condenser and an EAM5X60M24A 24.5-inch multi-positional cased evaporator coil. The condenser delivers 60,000 BTU cooling at 13.4 SEER2 with a single-stage scroll compressor and is factory pre-charged with R454B for a 15-foot line set. The coil includes a factory-installed TXV and sweat connections; a field-installable filter drier is provided. Electrical rating is 208/230 V, 1 Phase, 60 Hz.

• 5 Ton (60,000 BTU) cooling capacity; 13.4 SEER2 with single-stage scroll compressor and 4,000 CFM maximum airflow.
• Pre-charged with R454B for a 15-foot line set; filter drier included (field-installed); condenser liquid valve 3/8" and suction valve 1 1/8".
• 24.5" multi-positional evaporator coil with factory-installed TXV, sweat connections; UL listed.

Product Highlights

5 Ton (60,000 BTU) 13.4 SEER2; R454B pre-charged for 15' line set; 24.5" multi-positional coil with TXV; single-stage scroll compressor; UL listed.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S60AKANA / EAM5X60M24A

Technical Specifications

• Brand: ACIQ
• MPN: R5A4S60AKANA / EAM5X60M24A
• Condenser model: R5A4S60AKANA
• Coil model: EAM5X60M24A
• System type: AC-only
• Tonnage: 5 Ton
• Cooling capacity (BTU): 60,000
• SEER2: 13.4
• EER2: 11.0-13.5
• Refrigerant: R454B
• Factory refrigerant charge: Pre-charged for 15-foot line set
• Compressor type: Scroll
• Condenser stages: Single stage
• Maximum airflow (CFM): 4000
• Input Voltage: 208/230 V
• Phase: 1 Phase
• Frequency: 60 Hz
• Max breaker size: 50 Amps
• Min breaker size: 31.1 Amps (Minimum Circuit Amps / MCA)
• Filter drier: Included (field-installed)
• Liquid valve size (condenser): 3/8"
• Suction valve size (condenser): 1 1/8"
• Connection type: Sweat
• Certification: UL Listed
• Condenser weight: 204.00 lbs
• Coil weight: 103.00 lbs
• Condenser dimensions (H x W x D): 31.6875 x 31.1875 x 31.1875 inches
• Coil dimensions (H x W x D): 35.0 x 24.5 x 20.625 inches
• Coil configuration: Multi-Positional (upflow/downflow/horizontal)
• Coil TXV: Factory-installed
• Noise level: 74 dBA
• Motor RPM: 1100
• Horsepower: 1/4 HP
• Equivalent models: Carrier: 24ABB360ABN3; Tempstar: R4A360GKH; Bryant: 113ANA060000 (condenser) / Carrier: CAPMP2414ALA; Tempstar: EAM4X24L14A; Bryant: CAPMP2414ALA (coil)
