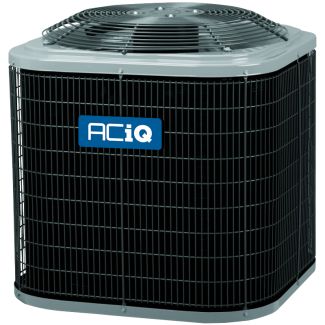

ACIQ R5A4S60AKANA 5 Ton 13.4 SEER2 Central Air Conditioner Condenser - R454B Single Stage

Product Description

The ACIQ R5A4S60AKANA is a five-ton central air conditioner condenser designed for efficiency and reliability. This unit has a cooling capacity of sixty thousand BTU, making it suitable for various residential and commercial applications. It operates using the R454B refrigerant, adhering to modern compliance standards. This single-stage condenser boasts a SEER2 efficiency rating of 13.4, which contributes to energy savings over time.

• Cooling capacity: 60,000 BTU
• Electrical specifications: 208/230V single phase
• Ten years parts warranty available with registration

Product Highlights

This unit features a scroll compressor for smooth operation and an attractive design for mounting in outdoor spaces.

Product Information

Standard Information

• Brand/Manufacturer: ACIQ
• Weight: 204 lbs

Technical Specifications

• Refrigerant Charge: 15 feet
• Refrigerant: R454B
• SEER2 (Efficiency): 13.4
• Compressor Type: Scroll
• Condenser Stages: Single stage
• Cooling BTU: 60000
• Maximum CFM: 4000
• Decibel Level (dBA): 74
• Motor RPM: 1100
• Horsepower: 1/4 HP
• Liquid Valve Size: 3/8 inches
• Suction Valve Size: 1 1/8 inches
• Max Breaker Size: 50 Amps
• Min. Breaker Size: 31.1 Amps
• Connection: Sweat
• Certification: UL Listed
• Height: 31 11/16 inches
• Width: 31 3/16 inches
• Depth: 31 3/16 inches
• Warranty: 10 years parts warranty
