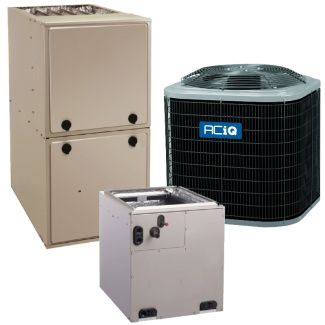

ACIQ R5A4S48AKANA Furnace & AC System - 100,000 BTU Multi-Positional

Product Description

The ACIQ R5A4S48AKANA is a multi-positional heating and cooling system. It combines a four-ton air conditioner with a high-efficiency gas furnace. This unit is designed to provide optimal indoor climate control while reducing energy consumption.

• Four Ton Capacity
• Cooling Output of Forty-Eight Thousand BTU
• Includes Heating Efficiency of Ninety-Two Percent AFUE

Product Highlights

Ideal for central air applications, the R5A4S48AKANA system efficiently cools and heats spaces while maximizing comfort. Its compact design suits various installation configurations.

Product Information

Standard Information

• Brand: ACIQ
• Replaces: R4A4S48AKANA

Technical Specifications

• Refrigerant Charge: 15 feet
• Weight: 192 pounds
• Cooling BTU: 48000
• Maximum CFM: 3000
• Decibel Level: 77 dBA
• Motor RPM: 1100
• Horsepower: 1/5 HP
• Refrigerant: R454B
• SEER2: 13.4
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Electrical: 208/230v, 1 Phase, 60 Hz
• Height: 28 1/4 inches
• Width: 31 3/16 inches
• Depth: 31 3/16 inches
• Warranty: 10 Years Parts with Online Registration
