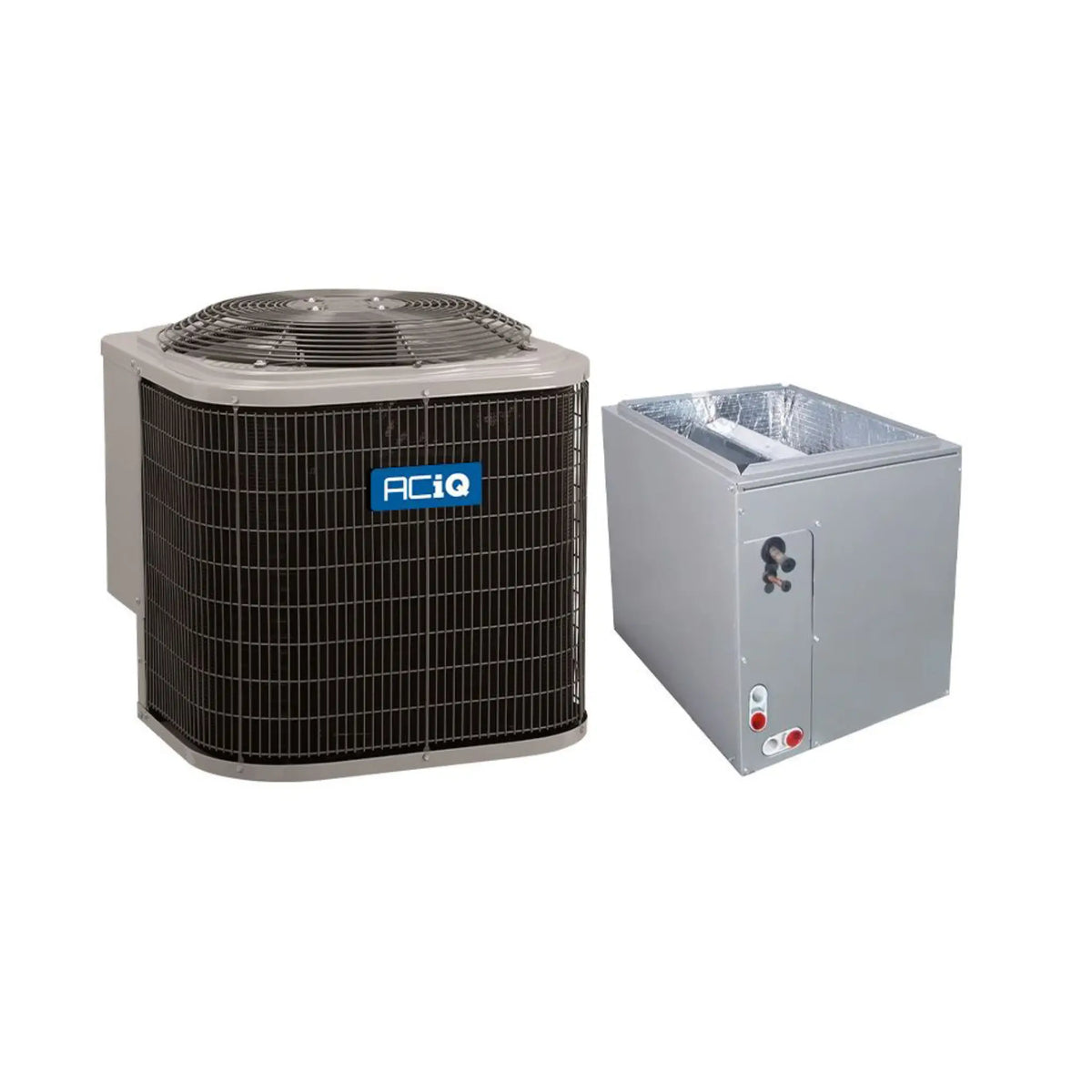

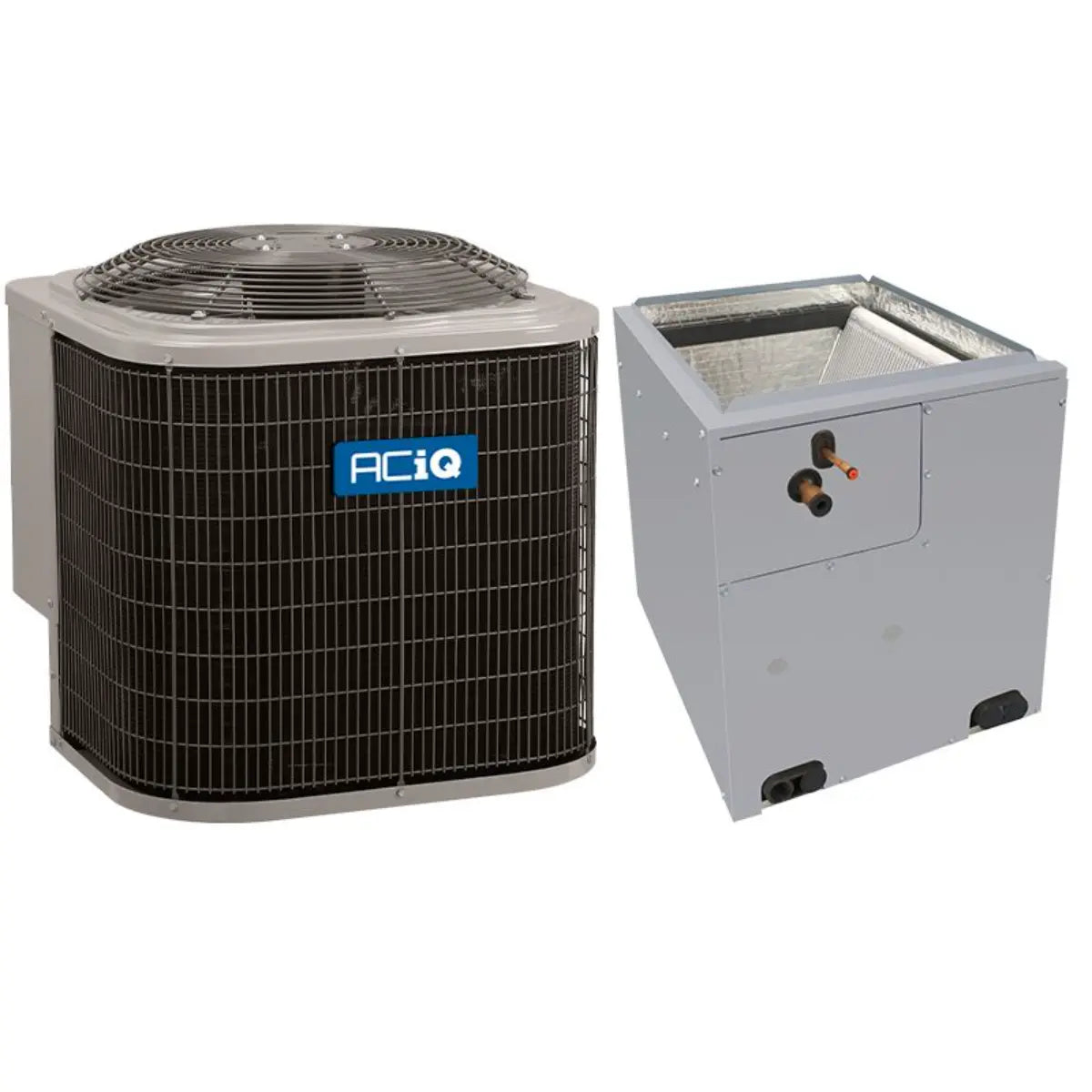

Aciq R5A4S48AKANA/EAM5X60M24A 4 Ton 13.4 SEER2 Air Conditioner with 24.5-inch Multi-Positional Cased Coil (Replaces R4A4S48AKANA)

Product Description

The Aciq R5A4S48AKANA / EAM5X60M24A is a matched air conditioner condenser and cased evaporator coil set that pairs a 4-ton 13.4 SEER2 single-stage scroll condenser pre-charged with R454B and a 24.5-inch multi-positional evaporator coil with factory-installed TXV. The condenser is pre-charged for a 15-foot line set and is rated for 208/230 V single-phase operation with a maximum airflow around 3,000 CFM; both components are UL listed.

• 4-ton 13.4 SEER2 condenser with single-stage scroll compressor, pre-charged for a 15-foot line set with R454B; includes field-installed filter drier.
• EAM5X60M24A 24.5-inch multi-positional cased evaporator coil with factory-installed TXV; sweat connections: 3/8-inch liquid, 7/8-inch suction.
• Electrical and performance: 208/230 V 1 Phase 60 Hz input, up to 3000 CFM, 77 dBA sound level; both units UL listed.

Product Highlights

Matched 4-ton condenser and 24.5-inch multi-positional coil, pre-charged R454B for 15-foot line set, UL listed.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S48AKANA / EAM5X60M24A

Technical Specifications

• Brand: Aciq
• MPN: R5A4S48AKANA / EAM5X60M24A
• Condenser Model: R5A4S48AKANA
• Coil Model: EAM5X60M24A
• Condenser Tonnage: 4 Ton
• SEER2 (Efficiency): 13.4
• Cooling Capacity: 48,000 BTU
• Refrigerant: R454B
• Precharged Line Length: 15 ft
• Compressor Type: Scroll
• Stages: Single Stage
• Maximum CFM: 3000
• Noise Level: 77 dBA
• Condenser Height: 28 1/4 inches
• Condenser Width: 31 3/16 inches
• Condenser Depth: 31 3/16 inches
• Coil Height: 35 inches
• Coil Width: 24 1/2 inches
• Coil Depth: 20 5/8 inches
• Condenser Weight: 192 lbs
• Coil Weight: 103 lbs
• Input Voltage: 208/230 V 1 Phase 60 Hz
• Motor RPM: 1100
• Max Breaker Size: 40 Amps
• Min Breaker Size: 22.7 Amps
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Connection Type: Sweat
• Filter Drier: Included (field-installed)
• Coil Configuration: Multi-Positional (upflow/downflow/horizontal)
• Coil TXV: Factory-installed TXV
• Certification: UL Listed
• Condenser Equivalent Models: Carrier 24ABB348ABN3; Tempstar R4A348GKH; Bryant 113ANA048000
• Coil Equivalent Models: Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
• Condenser Replaces: R4A4S48AKANA
• Coil Replaces: EAM4X60L21A
• Refrigerant Charge Condition: Pre-charged for 15 ft line set (R454B)
