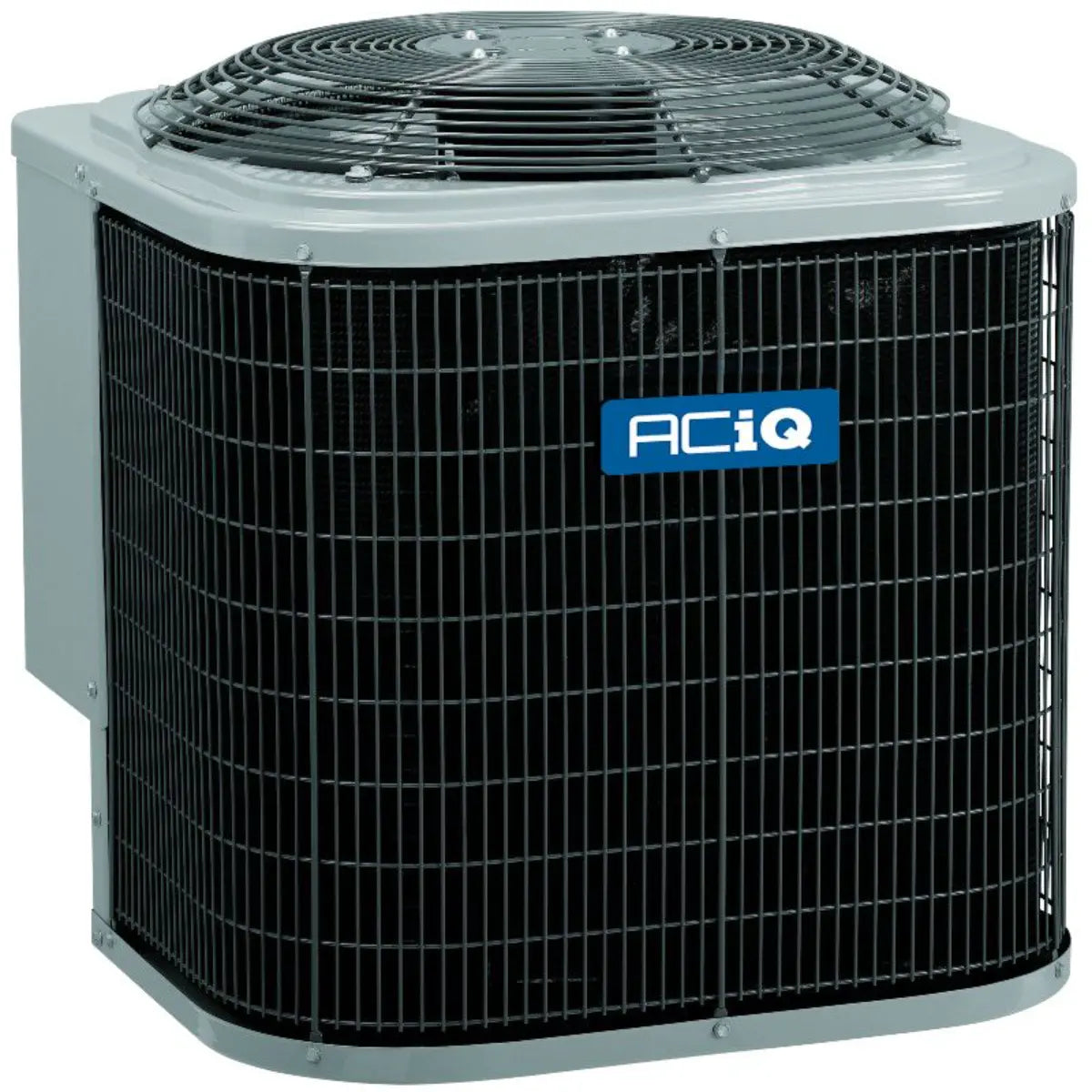

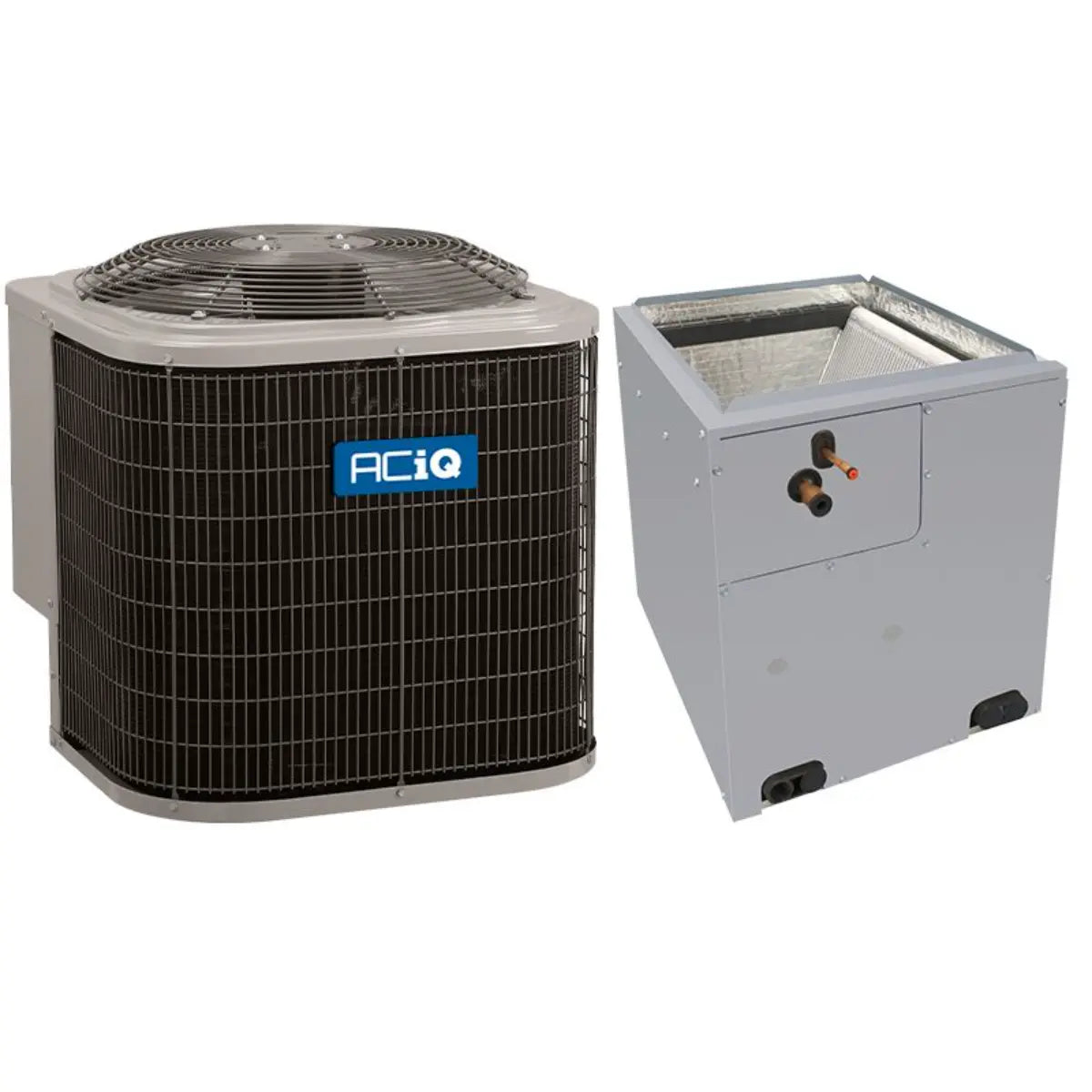

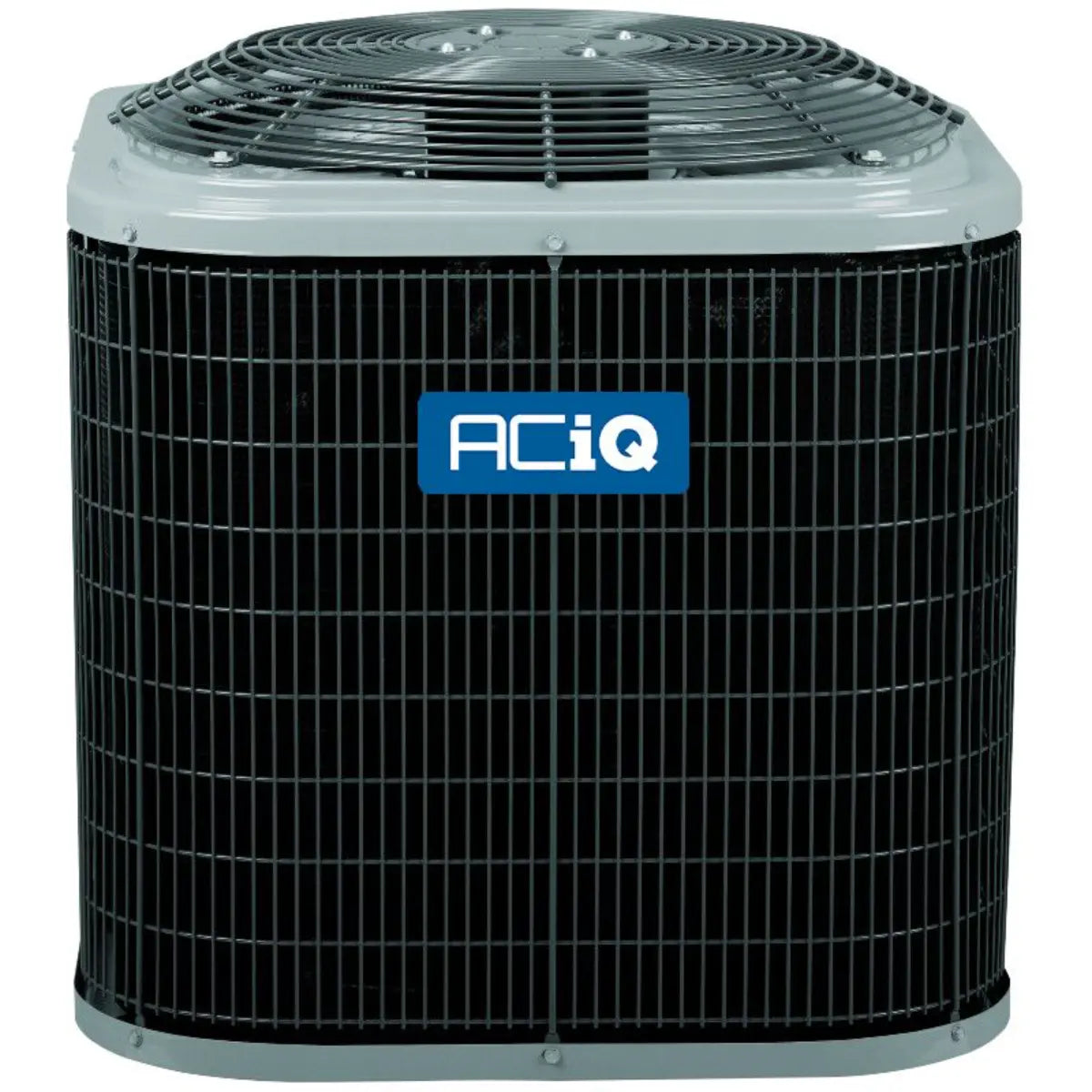

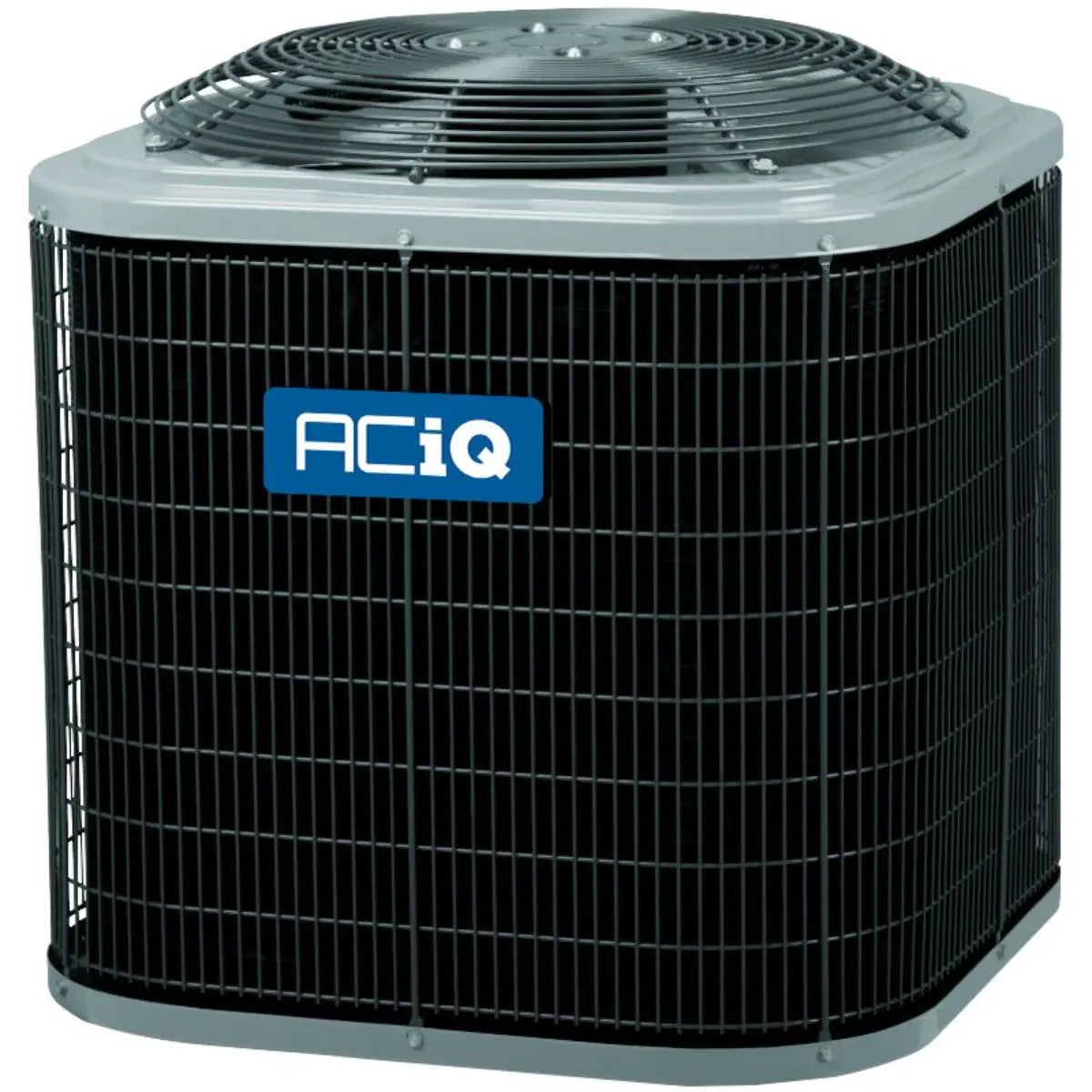

Aciq R5A4S48AKANA / EAM5X48M21A 4 Ton Air Conditioner with 21 inches Multi-Positional Cased Coil (Replaces R4A4S48AKANA / EAM4X48L21A)

Product Description

ACIQ R5A4S48AKANA / EAM5X48M21A is a 4-ton central air conditioning package that pairs a single-stage R454B condenser with a 21" multi-positional evaporator cased coil. The condenser is factory pre-charged for a 15-foot line set, uses a scroll compressor, and is rated 13.4 SEER2 and 48,000 BTU. The coil includes a factory-installed TXV, sweat connections, and is compatible with upflow, downflow, and horizontal installations. Electrical supply is 208/230V 1 phase 60 Hz and the condenser is UL listed.

• 4 ton (48,000 BTU) capacity, 13.4 SEER2 efficiency
• Condenser: single-stage scroll compressor; pre-charged for 15 ft line set with R454B; filter drier included (field-installed)

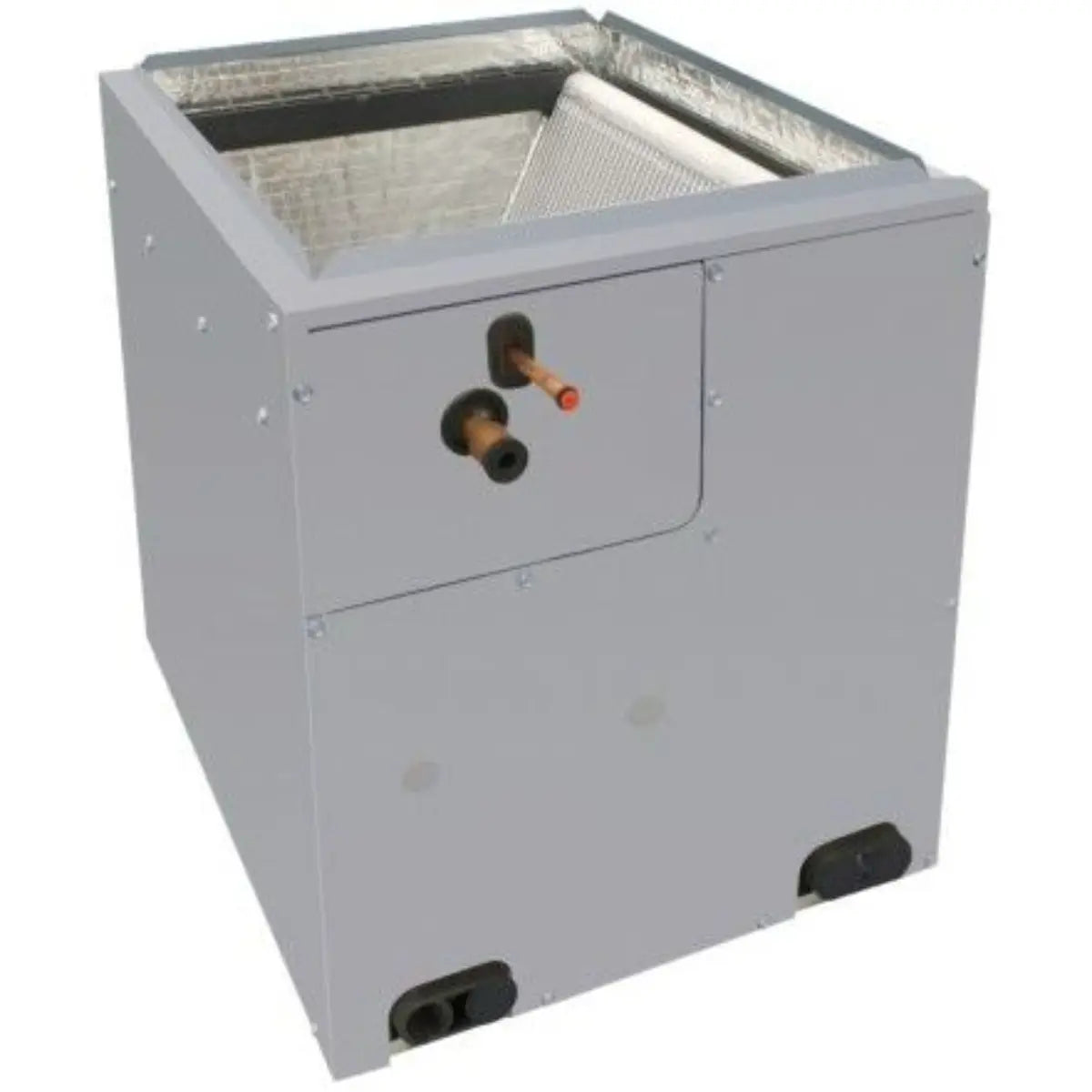

• Coil: 21" multi-positional A-coil with factory-installed TXV; sweat connections; 3/8" liquid and 7/8" suction

Product Highlights

4-ton R454B split system package with 13.4 SEER2, single-stage scroll compressor, 21" multi-positional coil with TXV, pre-charged for 15' line set, UL listed.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S48AKANA / EAM5X48M21A
• Country of Origin: China

Technical Specifications

• Brand: ACIQ
• Manufacturer Part Number: R5A4S48AKANA / EAM5X48M21A
• Tonnage: 4 Ton
• Cooling Capacity: 48,000 BTU
• SEER2 (Efficiency): 13.4
• EER2 (Energy Efficiency Ratio): 11.0-13.5
• Refrigerant: R454B
• Compressor Type: Scroll
• Condenser Stages: Single Stage
• Factory Refrigerant Charge: Pre-charged for 15' line set
• Filter Drier: Included (field-installed)
• Maximum CFM: 3000
• Decibel Level: 77 dBA
• Motor RPM: 1100
• Horsepower: 1/5 HP
• Liquid Valve Size: 3/8"
• Suction Valve Size: 7/8"
• Electrical (Input Voltage): 208/230V 1 Phase 60 Hz
• Max Breaker Size: 40 Amps
• Min Breaker Size: 22.7 Amps
• Connection Type: Sweat
• Certification: UL Listed
• Condenser Weight: 192 lbs
• Condenser Dimensions (H x W x D): 28.25" x 31.19" x 31.19"
• Coil Weight: 86 lbs
• Coil Dimensions (H x W x D): 29.75" x 21.00" x 20.63"
• Coil Configuration / Style: Multi-Positional / A-Coil
• Coil Liquid Line: 3/8"
• Coil Suction Line: 7/8"
• Coil Connection: Sweat
• Replaces (Condenser): R4A4S48AKANA
• Replaces (Coil): EAM4X48L21A
• Equivalent (Condenser): Carrier 24ABB348ABN3; Tempstar R4A348GKH; Bryant 113ANA048000
• Equivalent (Coil): Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
• AHRI Certification: 216430477
