Aciq R5A4S42AKANA / FTMA5B60L0DA 3.5 Ton Variable Speed Air Conditioner Split System (Multi-Positional) Replaces R4A4S42AKANA

Product Description

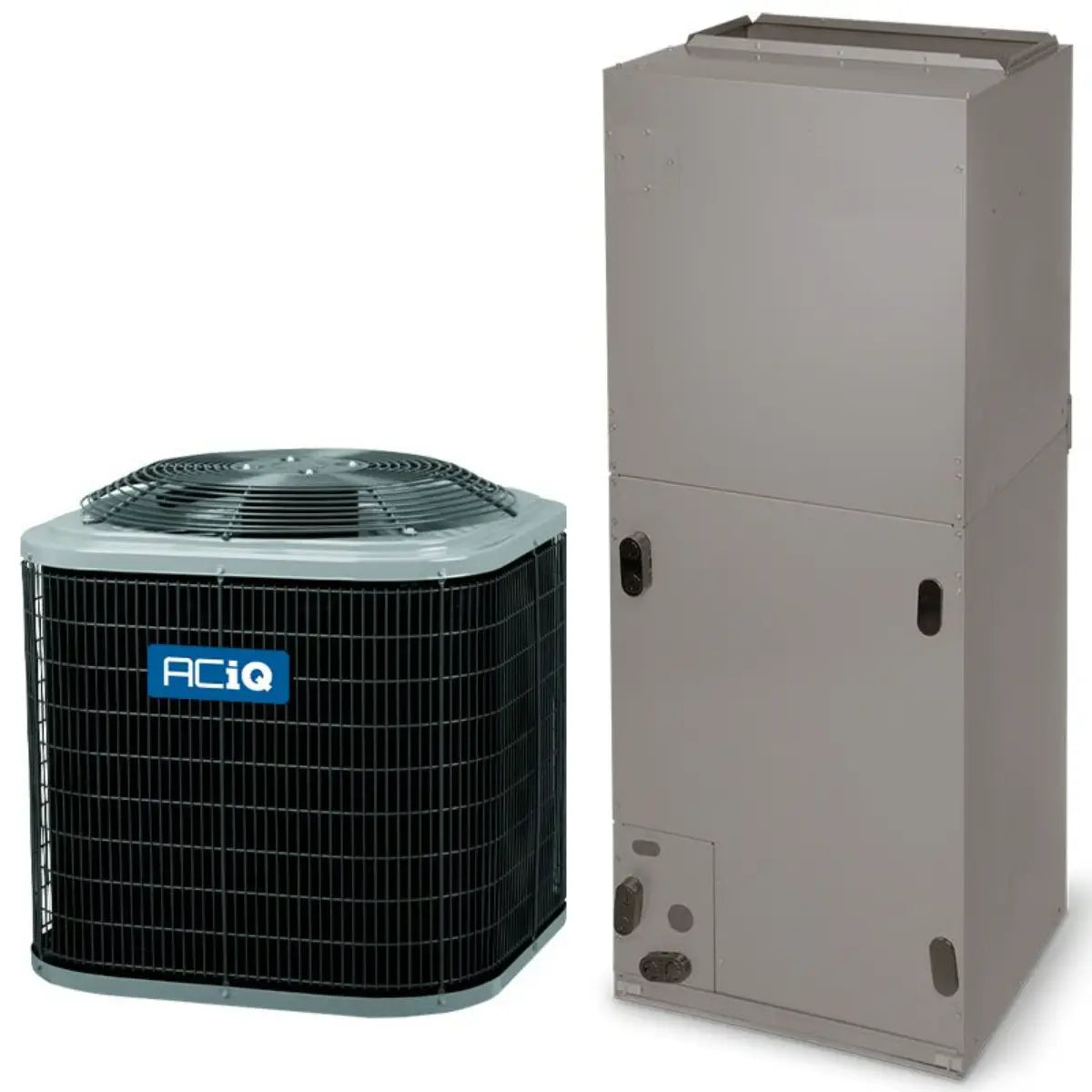

The Aciq R5A4S42AKANA / FTMA5B60L0DA is a complete 3.5 ton split air conditioning system comprising a 3.5 ton, 13.4 SEER2 outdoor condenser and a multi-positional variable-speed air handler. The condenser is R454B-compatible, pre-charged for a 15-foot line set and uses a single-stage scroll compressor; the air handler includes a variable-speed blower, TXV, all-aluminum coil, washable filter compatibility, fully insulated cabinet, and a corrosion-free sloped drain pan. Both units are UL listed.

• Condenser: 3.5 ton, 13.4 SEER2, R454B refrigerant, pre-charged for 15-foot line set, single-stage scroll compressor
• Air handler: multi-positional design with variable-speed blower, thermostatic expansion valve (TXV), corrosion-resistant all-aluminum coil, and washable filter compatibility
• UL listed components

Product Highlights

Complete R454B split system with pre-charged condenser, variable-speed multi-positional air handler, TXV and corrosion-resistant coil; UL listed.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S42AKANA / FTMA5B60L0DA

Technical Specifications

• Brand: Aciq
• System model / MPN: R5A4S42AKANA / FTMA5B60L0DA

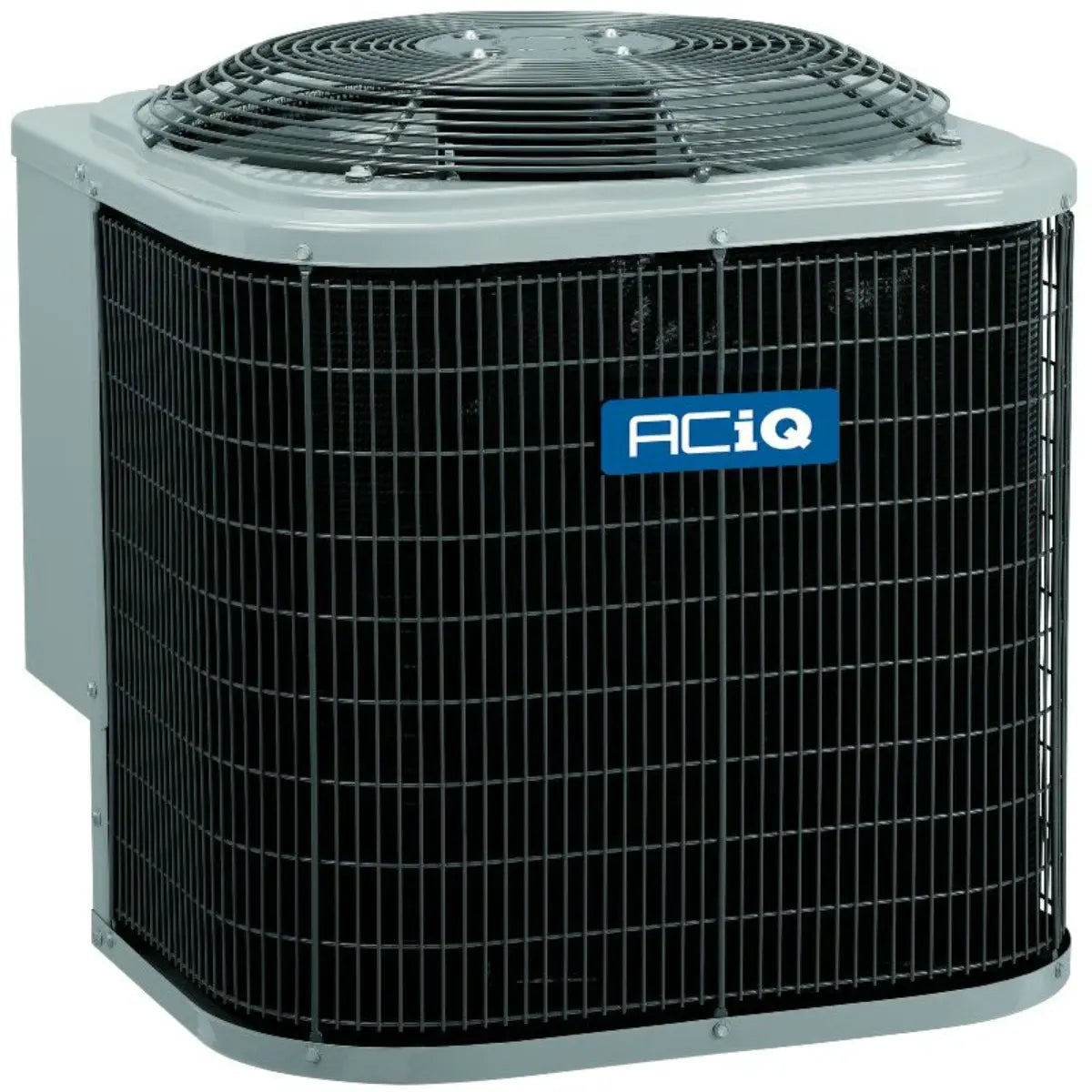

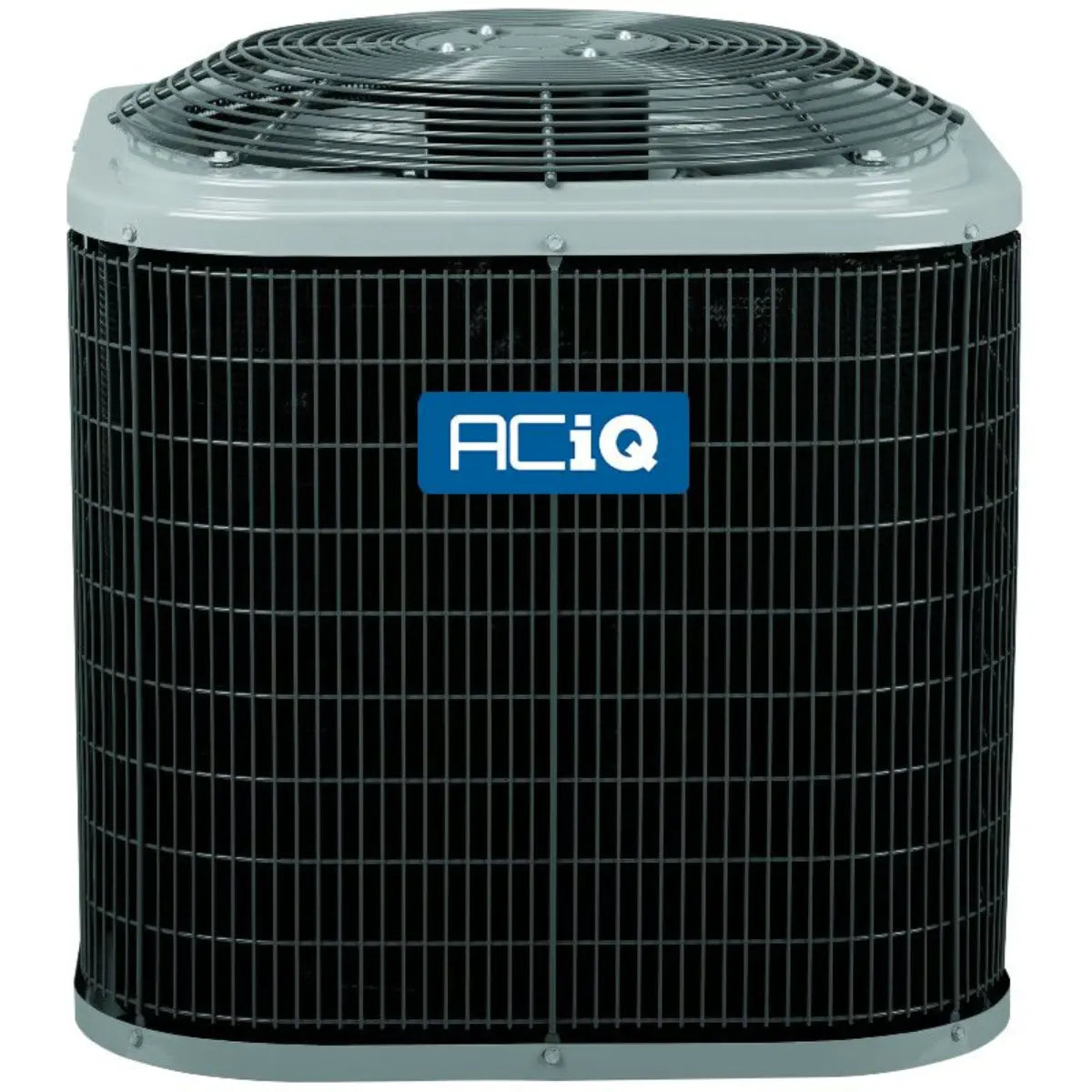

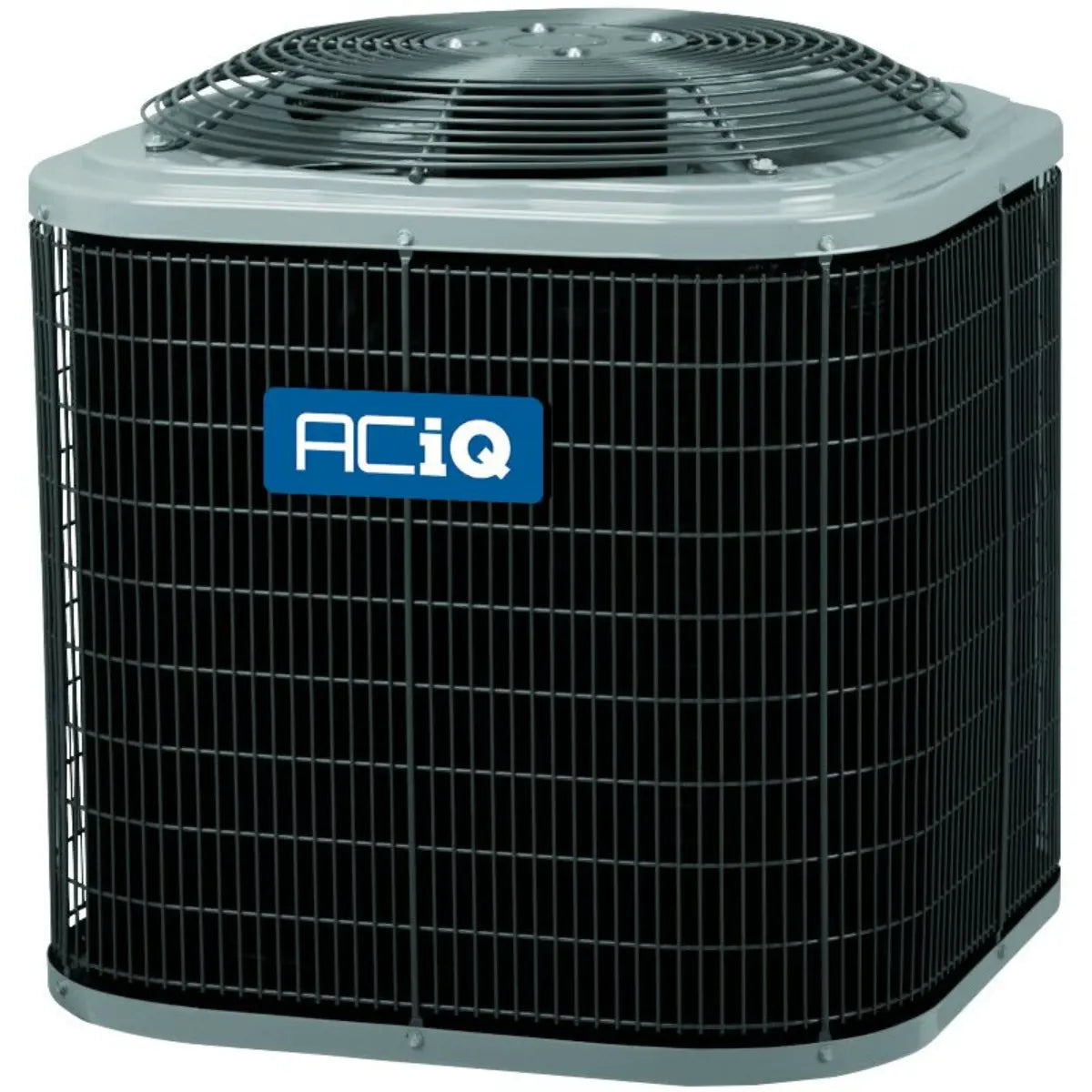

• Condenser model: R5A4S42AKANA
• Condenser tonnage: 3.5 Ton
• Condenser SEER2: 13.4
• Condenser refrigerant: R454B
• Condenser refrigerant charge: Pre-charged for 15-foot line set
• Condenser compressor type: Scroll (single stage)
• Condenser cooling BTU: 42,000
• Condenser maximum CFM: 3,800
• Condenser sound level: 74 dBA
• Condenser motor RPM: 1,100
• Condenser electrical: 208/230V 1 Phase 60 Hz
• Condenser max breaker size: 30 Amps
• Condenser min breaker size: 19.8 Amps
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 7/8"
• Condenser connection type: Sweat
• Condenser dimensions (H x W x D): 38.4375" x 31.1875" x 31.1875"
• Condenser weight: 193 lb
• Condenser certification: UL listed

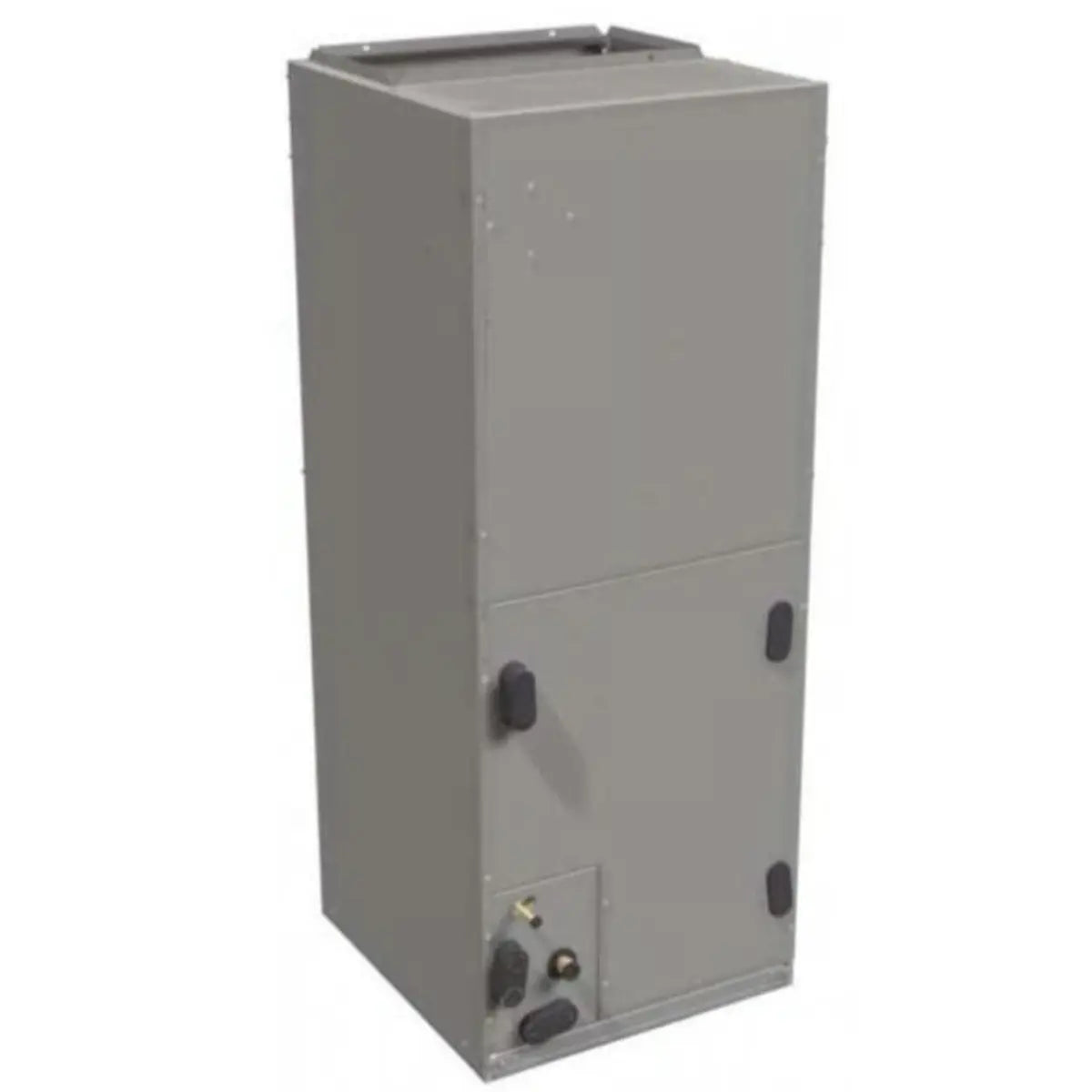

• Air handler model: FTMA5B60L0DA
• Air handler tonnage: 3.5 Ton
• Air handler configuration: Multi-positional (upflow/downflow/horizontal)
• Air handler refrigerant compatibility: R454B (compatible indoor unit / coil pairing)
• Air handler liquid line size: 3/8"
• Air handler suction line size: 7/8"
• Air handler electrical: 208/230V 1 Phase 60 Hz
• Air handler max breaker size: 15 Amps
• Air handler min breaker size: 7.1 Amps
• Air handler dimensions (H x W x D): 59.1875" x 24.6875" x 22.0625"
• Air handler width (noted): 24 in (24.6875" listed in detailed dimensions)
• Air handler weight: 203 lb
• Air handler features: Variable-speed blower, factory-installed refrigerant leak dissipation, thermostatic expansion valve (TXV), corrosion-resistant all-aluminum coil, washable/standard-size filter compatibility, fully insulated cabinet, corrosion-free sloped drain pan
• AHRI number: 216430333
• Replaces (condenser): R4A4S42AKANA
• General notes: Condenser is AC-only and cannot provide heating; requires compatible indoor coil or air handler pairing for operation
