Aciq R5A4S42AKANA EAM5X60M24A 3.5 Ton 13.4 SEER2 Air Conditioner Pack (Multi-Positional Coil) replaces R4A4S42AKANA

Product Description

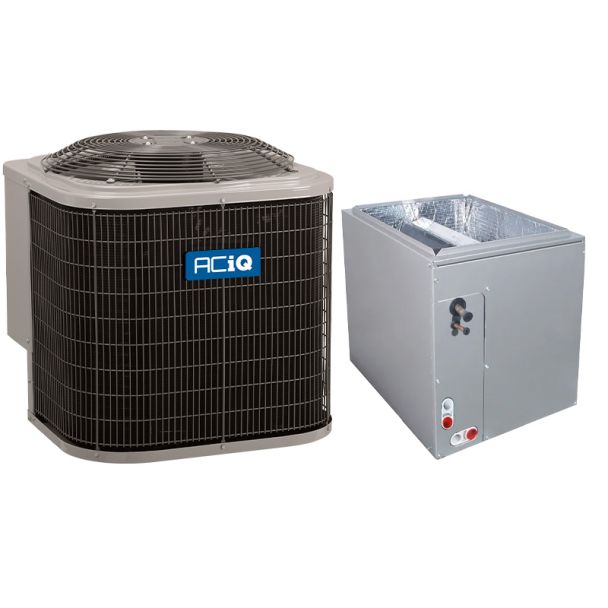

The Aciq R5A4S42AKANA / EAM5X60M24A package pairs a 3.5-ton, 13.4 SEER2 R454B air conditioner condenser with a 24.5-inch multi-positional evaporator cased coil that includes a factory-installed TXV. The condenser is pre-charged for a 15-foot line set and uses a single-stage scroll compressor for cooling-only applications. The coil supports upflow, downflow, and horizontal installations and uses sweat connections with 3/8" liquid and 7/8" suction lines.

• 3.5 ton condenser (R5A4S42AKANA) with 13.4 SEER2 and single-stage scroll compressor; pre-charged with R454B for a 15-foot line set

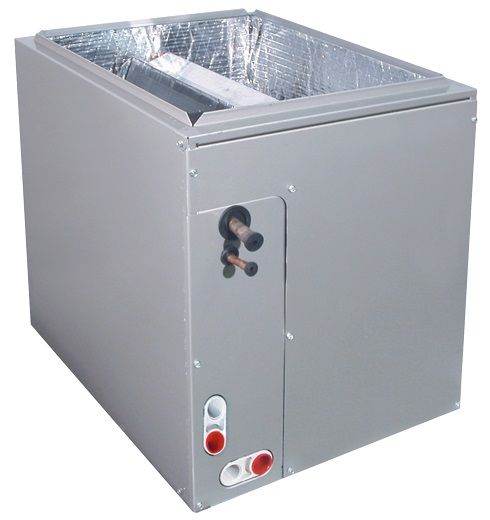

• 24.5" multi-positional A-coil (EAM5X60M24A) with factory-installed TXV; compatible with upflow, downflow, and horizontal orientations
• Electrical: 208/230V 1 Phase 60 Hz; sweat connections; liquid line 3/8" and suction line 7/8"

Product Highlights

3.5 Ton condenser with 13.4 SEER2, R454B pre-charge for 15-foot line set, 24.5" multi-positional evaporator coil with TXV, sweat connections

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S42AKANA / EAM5X60M24A

Technical Specifications

• Package Model / MPN: R5A4S42AKANA / EAM5X60M24A
• Brand: Aciq
• Condenser Model: R5A4S42AKANA
• Condenser Tonnage: 3.5 Ton
• Condenser Cooling Capacity (BTU/hr): 42000
• Condenser SEER2: 13.4
• Condenser EER2: 11.0-13.5
• Condenser Compressor Type: Scroll (single stage)
• Refrigerant: R454B
• Factory Refrigerant Charge: Pre-charged for 15-foot line set
• Condenser Maximum CFM: 3800
• Condenser Sound Level: 74 dBA
• Condenser Motor RPM: 1100
• Liquid Line Size: 3/8"
• Suction Line Size: 7/8"
• Input Voltage: 208/230V 1 Phase 60 Hz
• Maximum Breaker Size: 30 Amps
• Minimum Breaker Size (MCA or Min. Circuit): 19.8 Amps
• Connection Type: Sweat
• Certification: UL Listed
• Condenser Dimensions (H x W x D): 38 7/16" x 31 3/16" x 31 3/16"
• Condenser Weight: 193 lbs
• Coil Model: EAM5X60M24A
• Coil Configuration: Multi-Positional (upflow/downflow/horizontal)
• Coil Style: A-Coil
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 7/8"
• Coil Connection: Sweat
• Coil Dimensions (H x W x D): 35" x 24 1/2" x 20 5/8"
• Coil Weight: 103 lbs
• Coil Features: Factory-installed TXV kit
• Coil Certification: UL Listed
• Replaces (Condenser): R4A4S42AKANA
• Replaces (Coil): EAM4X60L21A
• Equivalent Models: Carrier 24ABB342ABN3; Tempstar R4A342GKH; Bryant 113ANA042000; Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
