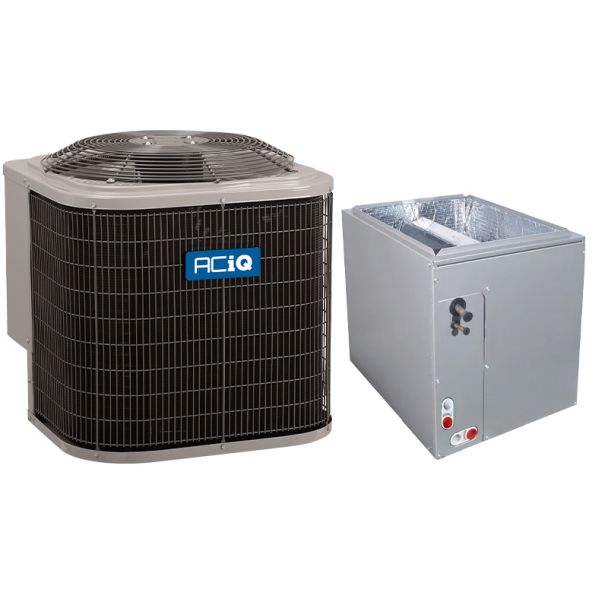

Aciq R5A4S42AKANA 3.5 Ton 13.4 SEER2 air conditioner R454B (21 in multi-positional cased coil) EAM5X42M21A

Product Description

Aciq R5A4S42AKANA / EAM5X42M21A is a 3.5 ton split central air conditioning system that pairs an R5A4S42AKANA condenser with an EAM5X42M21A 21-inch multi-positional cased evaporator coil. The package delivers 42,000 BTU cooling at 13.4 SEER2 using R454B refrigerant pre-charged for a 15-foot line set. The condenser uses a single-stage scroll compressor and operates on 208/230V 1 phase 60 Hz, while the coil includes a factory-installed TXV for refrigerant control.

• Condenser R5A4S42AKANA: 42,000 BTU (3.5 ton), 13.4 SEER2, single-stage scroll compressor, pre-charged for 15 ft line set, refrigerant R454B
• Evaporator coil EAM5X42M21A: 21 in multi-positional cased coil with factory-installed TXV; compatible with upflow, downflow, and horizontal installations
• Electrical and performance: 208/230V 1 phase 60 Hz, maximum CFM 3800, sound level 74 dBA, UL listed

Product Highlights

3.5 ton R454B split system, 13.4 SEER2 efficiency, 21 in multi-positional cased coil with factory TXV, pre-charged for 15 ft line set

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S42AKANA / EAM5X42M21A
• Country of Origin: China

Technical Specifications

• Brand: Aciq
• Package MPN: R5A4S42AKANA / EAM5X42M21A
• Condenser SKU: R5A4S42AKANA
• Coil SKU: EAM5X42M21A
• Tonnage: 3.5 Ton
• Cooling Capacity (BTU): 42,000
• Capacity Range (BTUh): 38,100-48,000
• SEER2 (Efficiency): 13.4
• EER2: 11.0-13.5
• Refrigerant: R454B
• Factory Refrigerant Charge: Pre-charged for 15 ft line set
• Compressor Type: Scroll
• Condenser Stages: Single Stage
• Liquid Valve Size: 3/8"
• Suction Valve Size: 7/8"
• Input Voltage: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 30 Amps
• Maximum CFM: 3800
• Sound Level (dBA): 74 dBA
• Motor RPM: 1100
• Horsepower: 1/4 HP
• Connection: Sweat
• Certification: UL Listed
• Condenser Weight: 193 lbs
• Coil Weight: 80 lbs
• Condenser Dimensions (H x W x D): 38 7/16 in x 31 3/16 in x 31 3/16 in
• Coil Dimensions (H x W x D): 29 3/4 in x 21 in x 20 5/8 in
• Coil Type: 21 in multi-positional cased evaporator coil
• Coil Features: Factory-installed TXV kit; compatible upflow/downflow/horizontal
