Aciq R5A4S36AKANA EVD5X36M17A 3 Ton 13.4 SEER2 Air Conditioner with 17.5 inches Vertical Cased Coil (Replaces R4A4S36AKANA)

Product Description

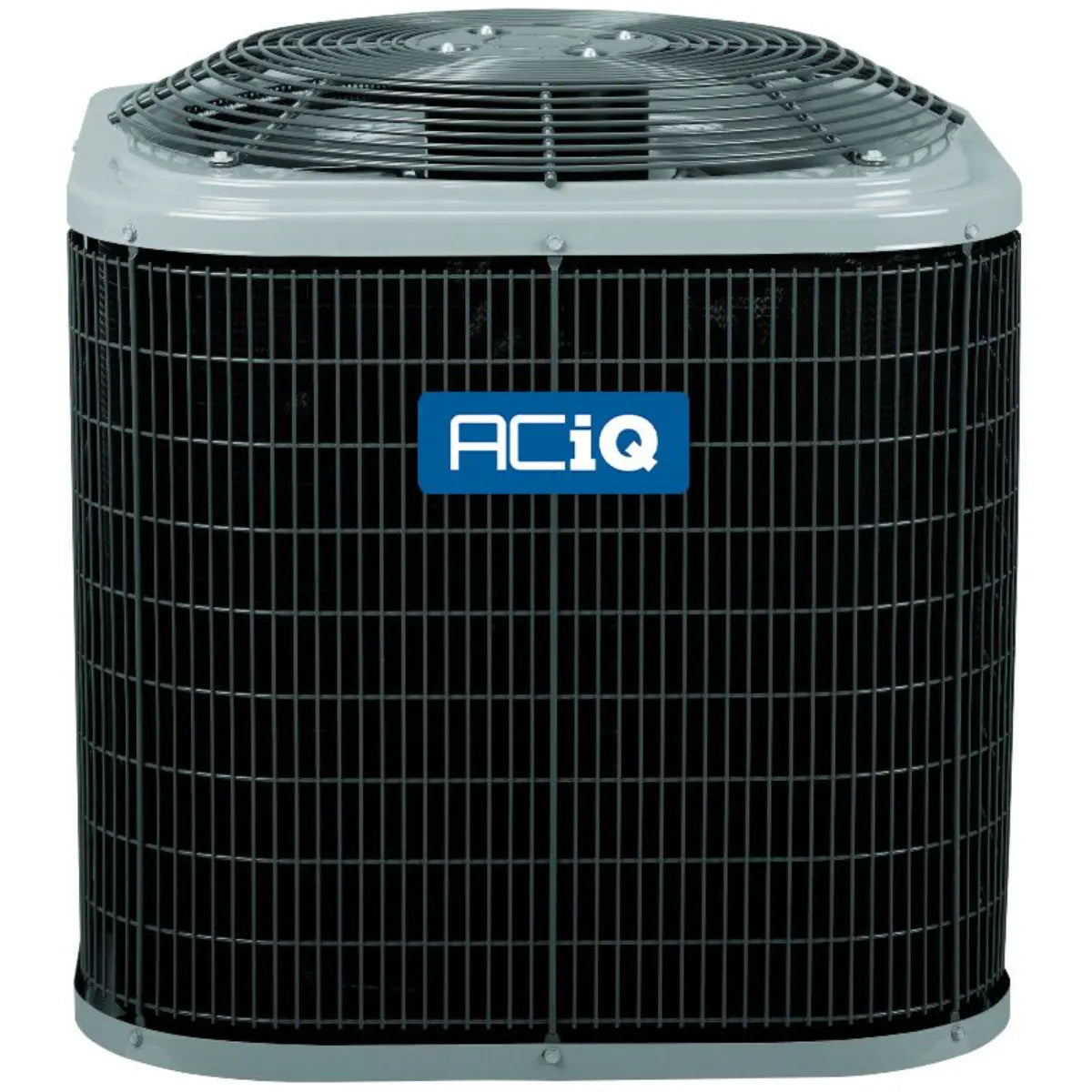

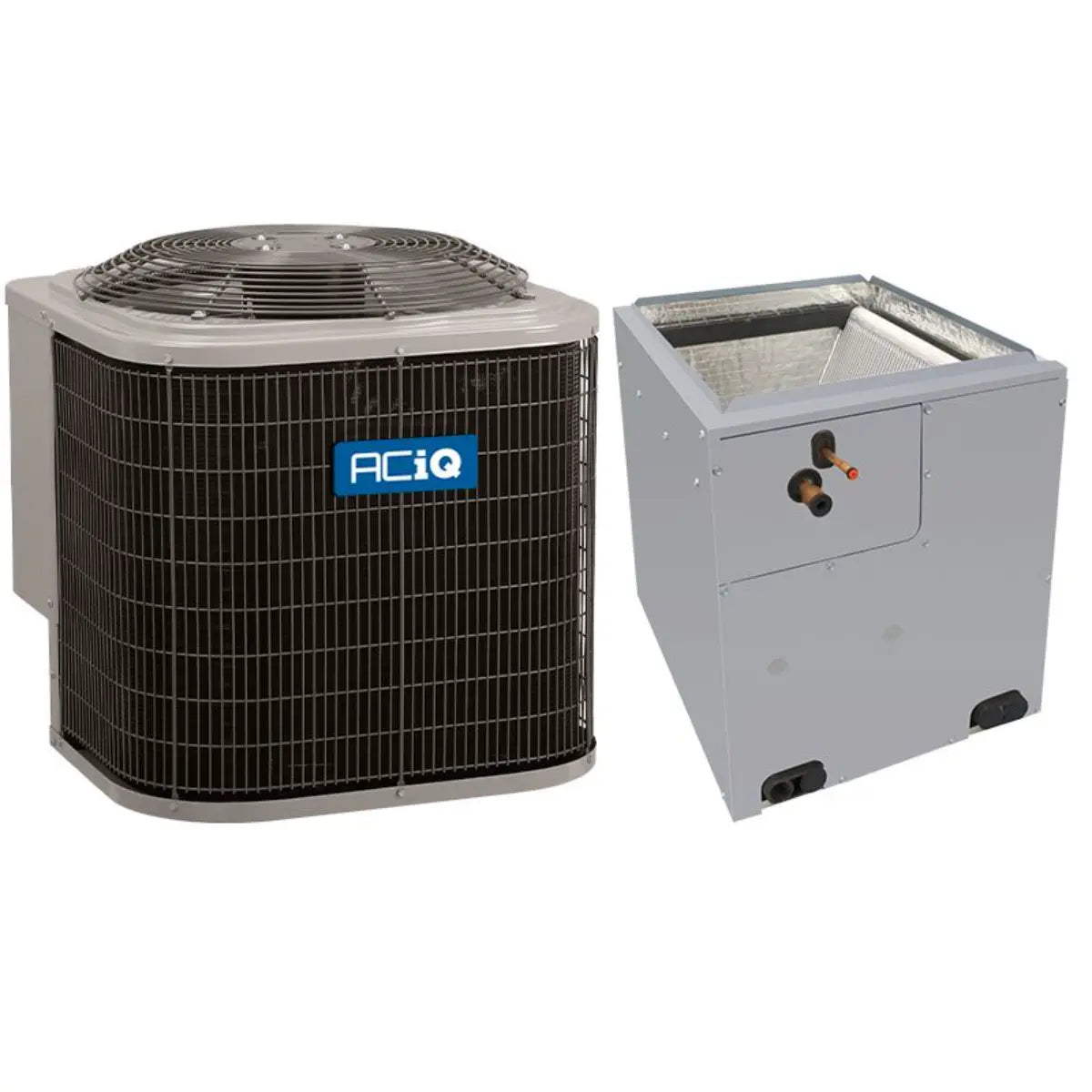

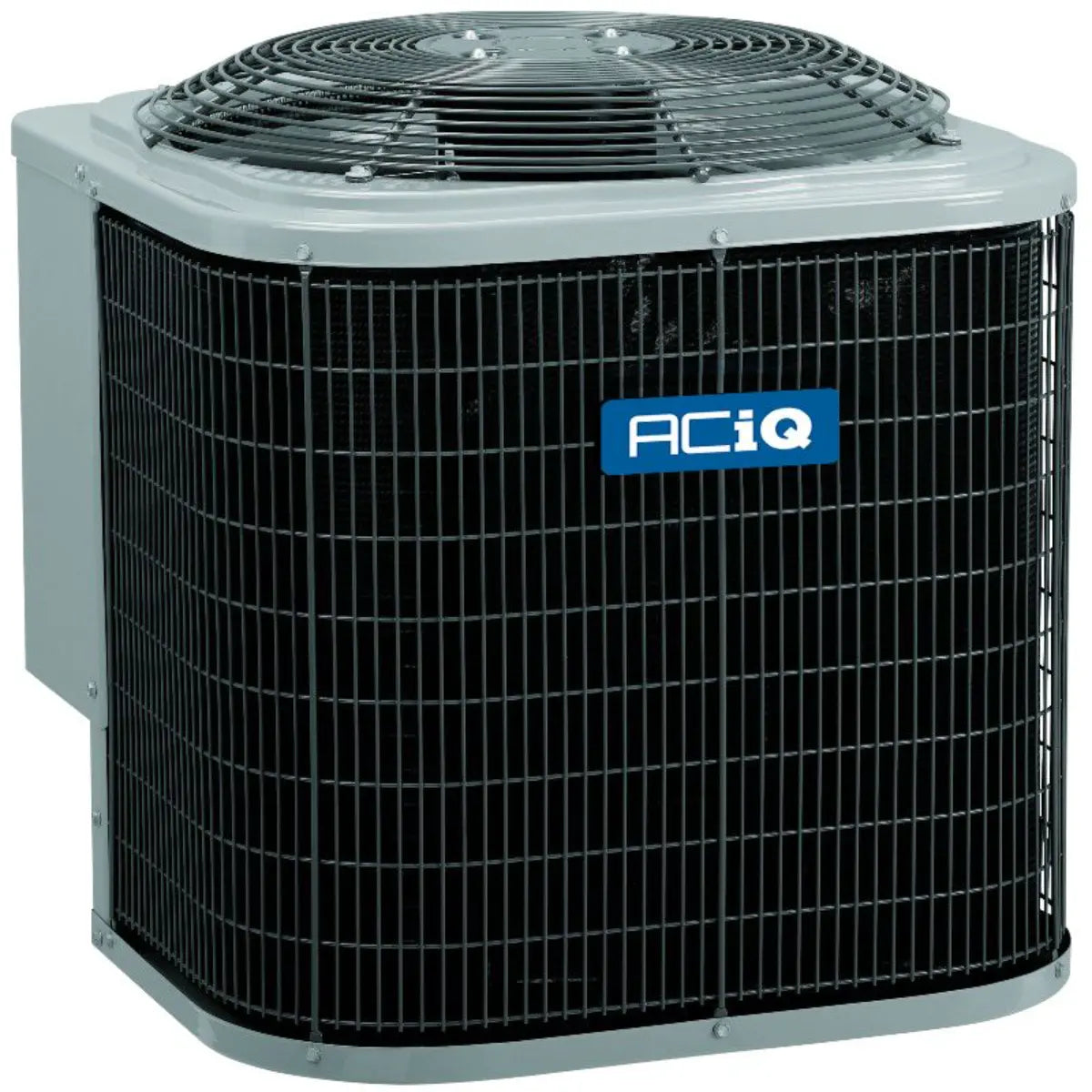

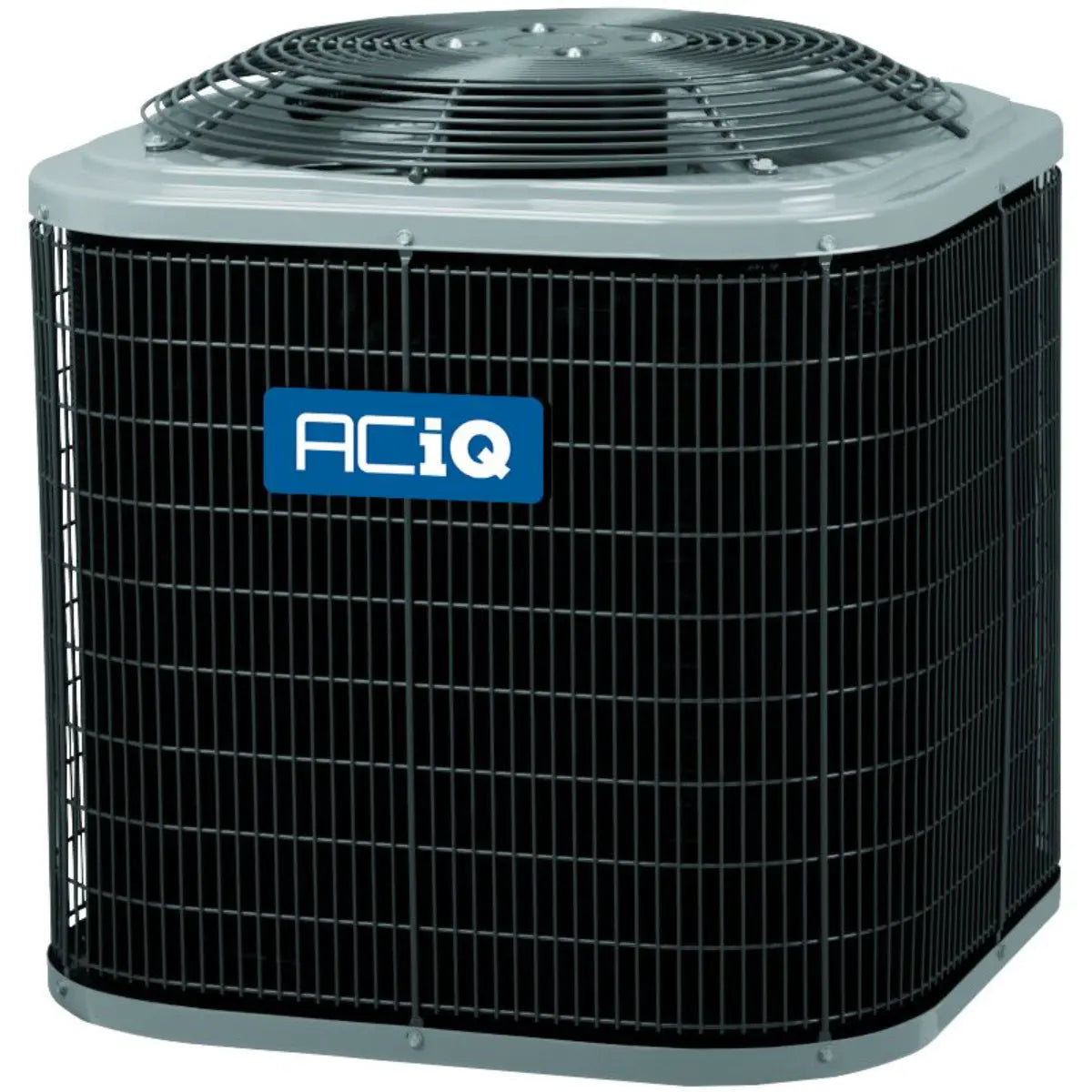

Aciq R5A4S36AKANA paired with EVD5X36M17A is a 3 ton, 13.4 SEER2 air conditioning package that combines an R454B single-stage scroll compressor condenser and a 17.5-inch vertical cased evaporator coil with a factory-installed TXV. The condenser operates on 208/230V 1-phase 60 Hz, includes a field-installed filter drier, sweat connections; the coil is fully insulated for upflow or downflow use with a corrosion-resistant PBT drain pan.

• 3 ton (36,000 BTU) capacity, 13.4 SEER2 efficiency, R454B refrigerant
• Condensing unit: single-stage scroll compressor, 208/230V 1-phase 60 Hz, max airflow 2800 CFM, 73 dBA

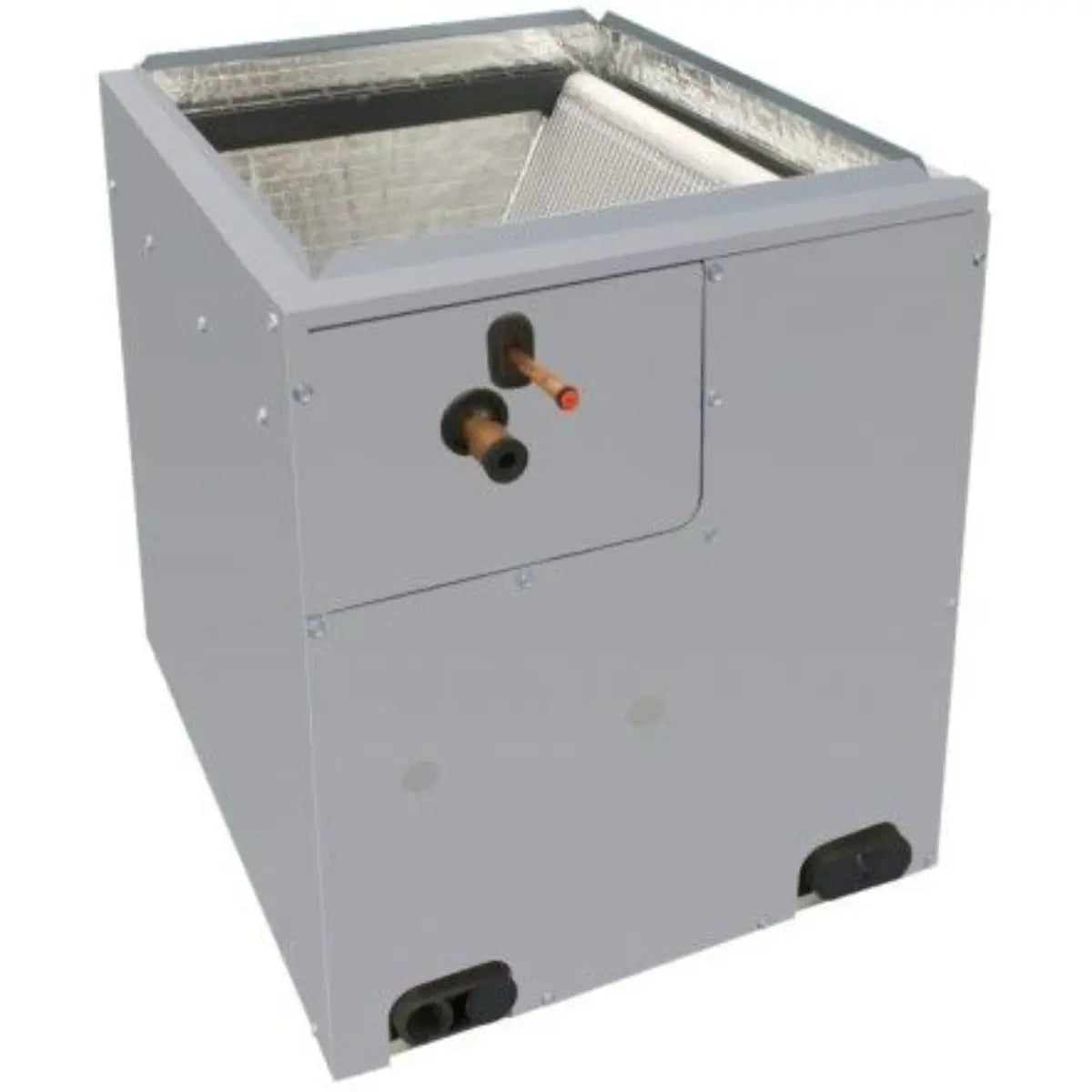

• 17.5" fully insulated vertical V-coil with factory-installed TXV, PBT drain pan, sweat connections (liquid 3/8", suction 3/4")

Product Highlights

Package includes R5A4S36AKANA condenser and EVD5X36M17A coil; UL listed.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S36AKANA / EVD5X36M17A

Technical Specifications

• Brand: ACiQ
• MPN (Condenser): R5A4S36AKANA
• MPN (Coil): EVD5X36M17A
• Package Components: Condenser and vertical cased evaporator coil (factory TXV kit)
• Tonnage: 3 Ton
• Cooling Capacity (BTU): 36,000
• SEER2 (Efficiency): 13.4
• Refrigerant: R454B
• Compressor Type: Scroll
• Condenser Stages: Single Stage
• Input Voltage: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 30 Amps
• Min Breaker Size: 17.5 Amps
• Max Airflow (CFM): 2800
• Sound Level (dBA): 73
• Liquid Line Size (Condenser): 3/8"
• Suction Line Size (Condenser): 7/8"
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Connection Type: Sweat
• Coil Configuration: Upflow / Downflow
• Coil Style: V-Coil
• Coil Material / Drain Pan: Corrosion-resistant PBT drain pan
• Filter Drier: Included (field-installed)
• Factory TXV: Factory-installed on coil
• Certifications: UL Listed
• Condenser Dimensions (H x W x D): 28.25" x 31.1875" x 31.1875"
• Condenser Weight: 153.00 lbs
• Coil Dimensions (H x W x D): 19.4375" x 17.5" x 20.625"
• Coil Weight: 39.00 lbs
• Condenser Replaces: R4A4S36AKANA
• Certification Notes: Requires compatible indoor blower or air handler to operate
