Aciq R5A4S36AKANA EAM5X42M21A 3 Ton 13.4 SEER2 Air Conditioner (21 Inch Multi-Positional Cased Coil) Replaces R4A4S36AKANA EAM4X42L21A

Product Description

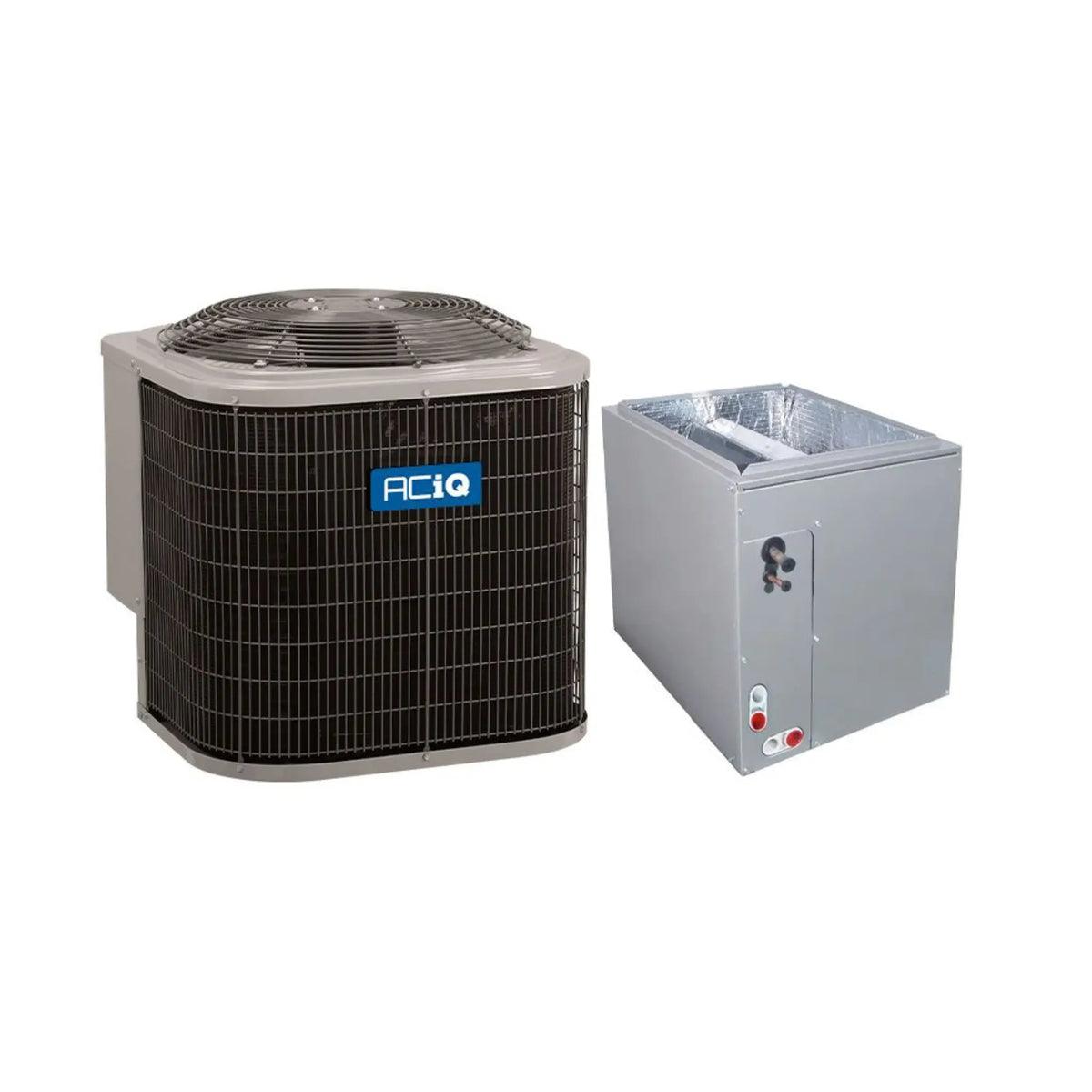

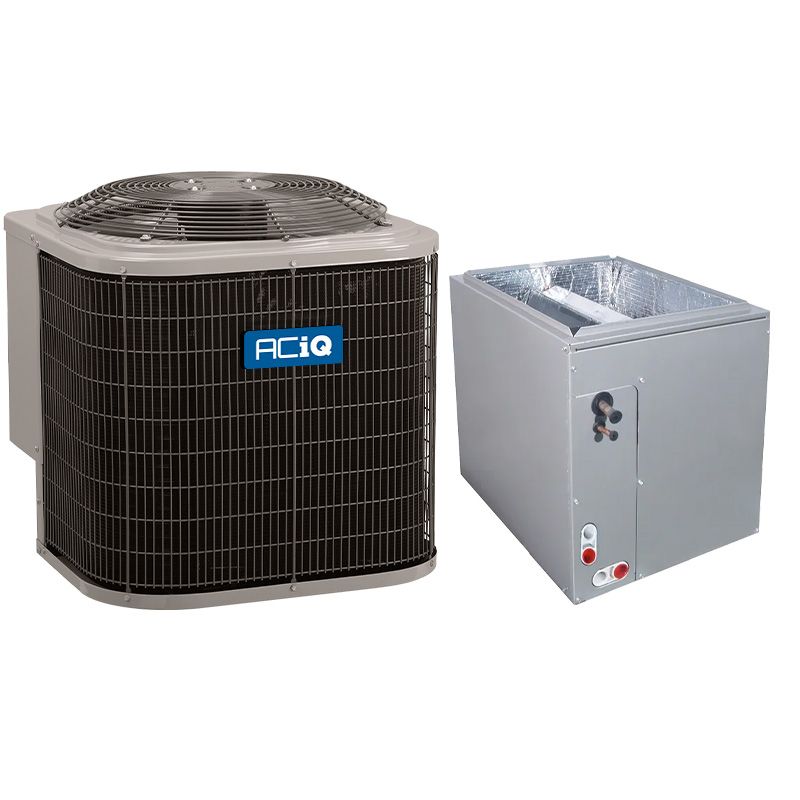

The Aciq R5A4S36AKANA / EAM5X42M21A is a packaged cooling system that combines a 3 ton, 13.4 SEER2 single-stage air conditioner condenser charged for R454B with a 21 inch, multi-positional 3.5 ton cased evaporator coil. The condenser uses a scroll compressor and includes a field-installable filter drier, reinforced cabinet protection and a pre-charge for a 15-foot line set. The coil includes a factory-installed TXV and supports upflow, downflow and horizontal installations.

• Condenser: 3 Ton (36,000 BTU), 13.4 SEER2, single-stage scroll compressor, R454B, maximum 2,800 CFM, 73 dBA

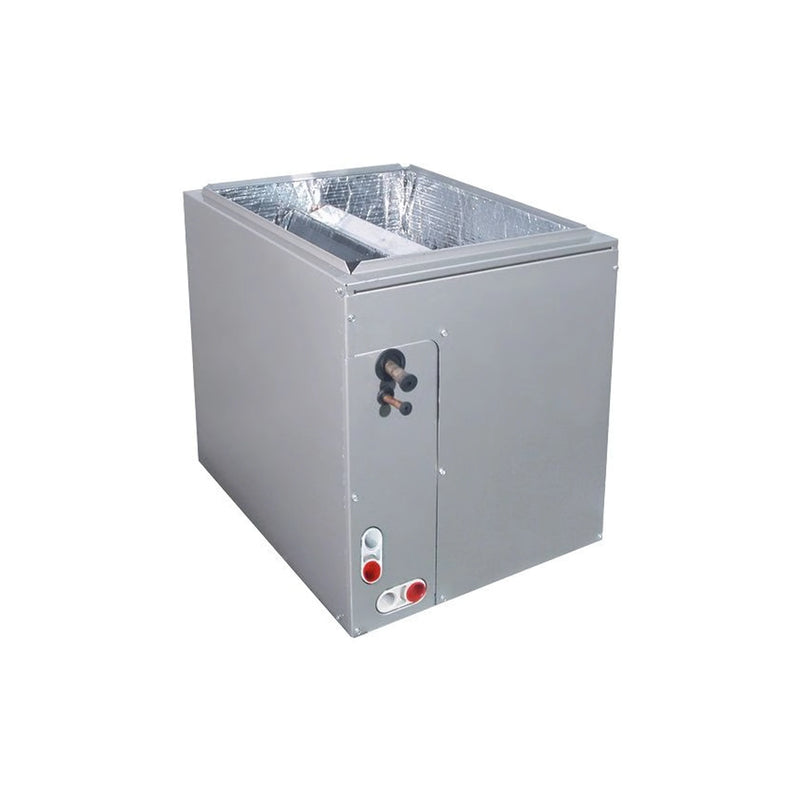

• Evaporator coil: 21 inch multi-positional A-coil, 3.5 Ton (42,000 BTU), factory-installed TXV, sweat connections, liquid 3/8 inch, suction 7/8 inch
• Electrical and installation: 208/230 V 1 Phase 60 Hz, min breaker 17.5 A, max breaker 30 A; UL listed

Product Highlights

Packaged R454B AC condenser and 21 inch multi-positional evaporator coil; matched components require compatible indoor/outdoor pairing.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S36AKANA / EAM5X42M21A

Technical Specifications

• Brand: Aciq
• Model (Condenser MPN): R5A4S36AKANA
• Model (Coil MPN): EAM5X42M21A
• System Type: AC-only condenser with matched cased evaporator coil
• Refrigerant: R454B
• Condenser Cooling Capacity: 36000 BTU
• Coil Cooling Capacity: 42000 BTU
• Tonnage (Condenser): 3 Ton
• Tonnage (Coil): 3.5 Ton
• SEER2 Rating: 13.4
• EER2: 11.0-13.5
• Compressor Type: Scroll
• Compressor Stages: Single Stage
• Maximum CFM: 2800
• Sound Level: 73 dBA
• Motor RPM: 825
• Horsepower: 1/10 HP
• Liquid Valve Size: 3/8"
• Suction Valve Size: 7/8"
• Connection Type: Sweat
• Input Voltage: 208/230 V 1 Phase 60 Hz
• Max Breaker Size: 30 Amps
• Min Breaker Size: 17.5 Amps
• Condenser Dimensions (H x W x D): 28 1/4" x 31 3/16" x 31 3/16"
• Coil Dimensions (H x W x D): 29 3/4" x 21" x 20 5/8"
• Condenser Weight: 153 lbs
• Coil Weight: 80 lbs
• Combined Weight: 233 lbs
• Coil Configuration: Multi-Positional (upflow, downflow, horizontal)
• Coil Features: Factory-installed TXV
• Filter Drier: Included (field-installed)
• Certification: UL Listed
• Replaces (Condenser): R4A4S36AKANA
• Replaces (Coil): EAM4X42L21A
• AHRI Certificate Number: 216135677
• Maximum Line Set Precharge: Pre-charged for 15-foot line set
• Safety: Proposition 65 Warning
