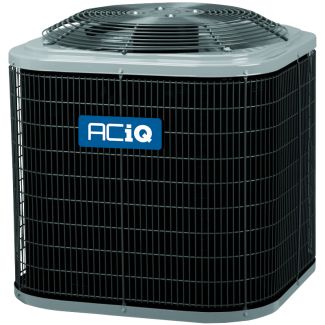

ACIQ R5A4S36AKANA 3 Ton 13.4 SEER2 Central Air Conditioner Condenser - R454B Single Stage

Product Description

The ACIQ 3 Ton 13.4 SEER2 Central Air Conditioner Condenser, MPN R5A4S36AKANA, is designed for residential and light commercial use. It features a cooling capacity of thirty-six thousand BTUs and operates efficiently in various conditions. This unit employs R454B refrigerant, which is environmentally friendly and helps reduce carbon footprints.

• High efficiency rating of 13.4 SEER2
• Quiet operation at 73 decibels
• Durable construction with a ten-year parts warranty

Product Highlights

This air conditioner is ideal for homeowners and contractors seeking reliable cooling solutions. The single-stage design enables straightforward installation and maintenance, while the scroll compressor ensures easy operation and longevity.

Product Information

Standard Information

• Brand: ACIQ
• Replaces: R4A4S36AKANA

Technical Specifications

• Weight: 153 lbs
• Cooling BTU: 36000
• Maximum CFM: 2800
• Decibel Level: 73 dBA
• Motor RPM: 825
• Horsepower: 1/10 HP
• Refrigerant: R454B
• SEER2: 13.4
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Liquid Valve Size: 3/8 inches
• Suction Valve Size: 7/8 inches
• Electrical: 208/230v 1 Phase 60 Hz
• Max Breaker Size: 30 Amps
• Min. Breaker Size: 17.5 Amps
• Tonnage: 3 Ton
• Connection: Sweat
• Certification: UL Listed
• Height: 28 1/4 inches
• Width: 31 3/16 inches
• Depth: 31 3/16 inches
• Warranty: 10 Years Parts Warranty with Online Registration
