ACIQ R5A4S36AKANA 3 Ton 13.4 SEER2 80% 80,000 BTU Furnace & AC System - R454B Multi-Positional

Product Description

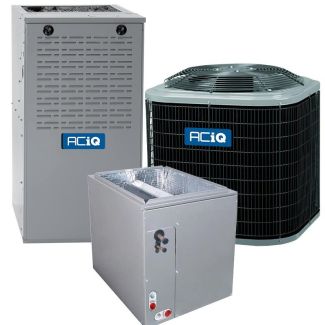

ACIQ offers a reliable solution for heating and cooling with the R5A4S36AKANA model. This system combines a three-ton air conditioner with an 80,000 BTU furnace. It provides a cooling efficiency of 13.4 SEER2 and is compatible with R454B refrigerant. This multi-positional unit can be adapted to various installation methods.

• 3 Ton Cooling Capacity
• 80,000 BTU Heating Output
• UL Listed Certification

Product Highlights

This versatile heating and cooling system is designed for efficient operation, making it suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: ACiQ
• MPN: R5A4S36AKANA

Technical Specifications

• Cooling BTU: 36000
• Max CFM: 2800
• Decibel Level: 73 dBA
• Motor RPM: 825
• Horsepower: 1/10 HP
• Refrigerant: R454B
• SEER2 Rating: 13.4
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Liquid Valve Size: 3/8 inches
• Suction Valve Size: 7/8 inches
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 30 Amps
• Min. Breaker Size: 17.5 Amps
• Tonnage: 3 Ton
• Connection Type: Sweat
• Height: 28 1/4 inches
• Width: 31 3/16 inches
• Depth: 31 3/16 inches
• Warranty: 10 Years Parts Warranty with Online Registration
• Safety Information: Proposition 65 Warning. May contain a chemical known to the state of California to cause cancer or birth defects or other reproductive harm.
