Aciq R5A4S30AKANA Air Conditioner 2.5 Ton 13.4 SEER2 (14 inches Multi-Positional Coil) EAM5X30M14A

Product Description

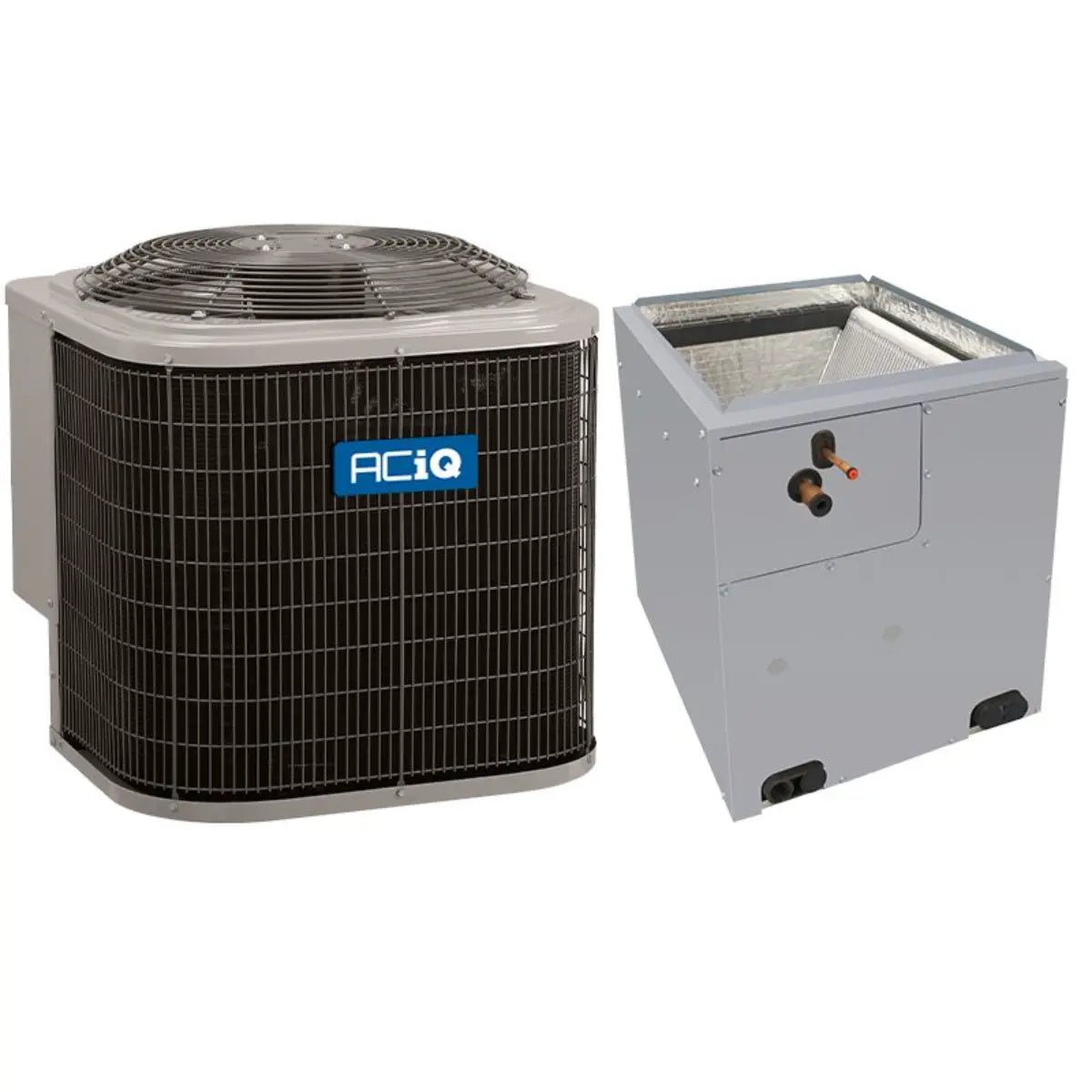

The Aciq R5A4S30AKANA / EAM5X30M14A package pairs a 2.5 ton (30,000 BTU), 13.4 SEER2 R454B single-stage condenser with a 14-inch multi-positional cased evaporator coil. The condenser uses a scroll compressor, operates on 208/230 V 1 Phase 60 Hz, and includes a field-installed filter drier and reinforced cabinet features. The coil includes a factory-installed TXV and supports upflow, downflow, and horizontal installations. The system is UL listed.

• 2.5 ton (30,000 BTU) cooling capacity, 13.4 SEER2, R454B refrigerant
• Condenser: single-stage scroll compressor, 208/230 V 1 Phase 60 Hz, up to 2700 CFM, 72 dBA
• Evaporator coil: 14" multi-positional A-coil with factory TXV, sweat connections (3/8" liquid, 3/4" suction)

Product Highlights

Factory-paired condenser and 14" multi-positional evaporator coil, R454B refrigerant, UL listed

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S30AKANA / EAM5X30M14A

Technical Specifications

• Brand: Aciq
• Condenser MPN: R5A4S30AKANA
• Evaporator Coil MPN: EAM5X30M14A
• Product type: Condenser and evaporator cased coil package
• Cooling capacity: 30,000 BTU (2.5 Ton)
• SEER2: 13.4
• Refrigerant: R454B
• Compressor type: Scroll
• Compressor stages: Single stage
• Maximum airflow: 2700 CFM
• Sound level: 72 dBA
• Motor speed: 825 RPM
• Motor power: 1/10 HP
• Input Voltage: 208/230 V 1 Phase 60 Hz
• Maximum breaker size: 25 Amps
• Minimum breaker size: 16.2 Amps
• Liquid valve size: 3/8"
• Suction valve size: 3/4"
• Connection type: Sweat
• Certification: UL Listed
• Condenser dimensions (H x W x D): 31 11/16" x 31 3/16" x 31 3/16"
• Condenser weight: 166 lbs
• Coil configuration: Multi-positional A-coil
• Coil dimensions (H x W x D): 25 13/16" x 14 3/16" x 20 5/8"
• Coil weight: 60 lbs
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil connection: Sweat
• Coil features: Factory-installed TXV, fully insulated cased coil, compatible with upflow/downflow/horizontal
• Includes: Filter drier (field-installed) and factory TXV on coil
• Condenser replaces: R4A4S30AKANA
• Coil replaces: EAM4X30L14A
• Condenser equivalents: Carrier 24ABB330ABN3; Tempstar R4A330GKH; Bryant 113ANA030000
• Coil equivalents: Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
