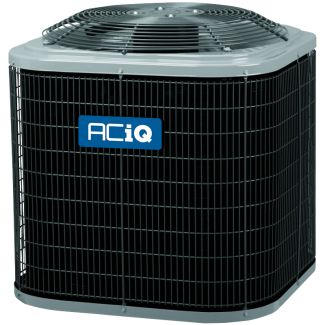

ACIQ R5A4S30AKANA 2.5 Ton 13.4 SEER2 Central Air Conditioner Condenser - R454B Single Stage

Product Description

The ACIQ 2.5 Ton 13.4 SEER2 Central Air Conditioner Condenser, with model number R5A4S30AKANA, is designed for efficient cooling. This single-stage system operates with R454B refrigerant and offers a capacity of thirty thousand BTUs. The unit features a scroll compressor and is UL Listed for safety. Its maximum airflow is up to two thousand seven hundred CFM, ensuring effective cooling performance.

• Cooling Capacity: 30000 BTUs
• Maximum Airflow: 2700 CFM
• Sound Level: 72 Decibels

Product Highlights

Ideal for residential air conditioning, this condenser is compliant with new refrigerant regulations and provides basic efficiency. The unit is built with a durable design for long-term operation.

Product Information

Standard Information

• Brand: ACIQ
• Weight: 166 lbs

Technical Specifications

• Model Number: R5A4S30AKANA
• Replaces: R4A4S30AKANA
• Cooling BTU: 30000
• Motor RPM: 825
• Horsepower: 1/10 HP
• Refrigerant: R454B
• SEER2 (Efficiency): 13.4
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Liquid Valve Size: 3/8 inch
• Suction Valve Size: 3/4 inch
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 25 Amps
• Min. Breaker Size: 16.2 Amps
• Tonnage: 2.5 Ton
• Connection: Sweat
• Height: 31 11/16 inches
• Width: 31 3/16 inches
• Depth: 31 3/16 inches
• Warranty: 10 Years Parts Warranty with Online Registration
