Aciq R5A4S30AKANA 2.5 Ton 13.4 SEER2 Air Conditioner with 21 inches Multi-Positional Cased Coil EAM5X42M21A (Replaces R4A4S30AKANA)

Product Description

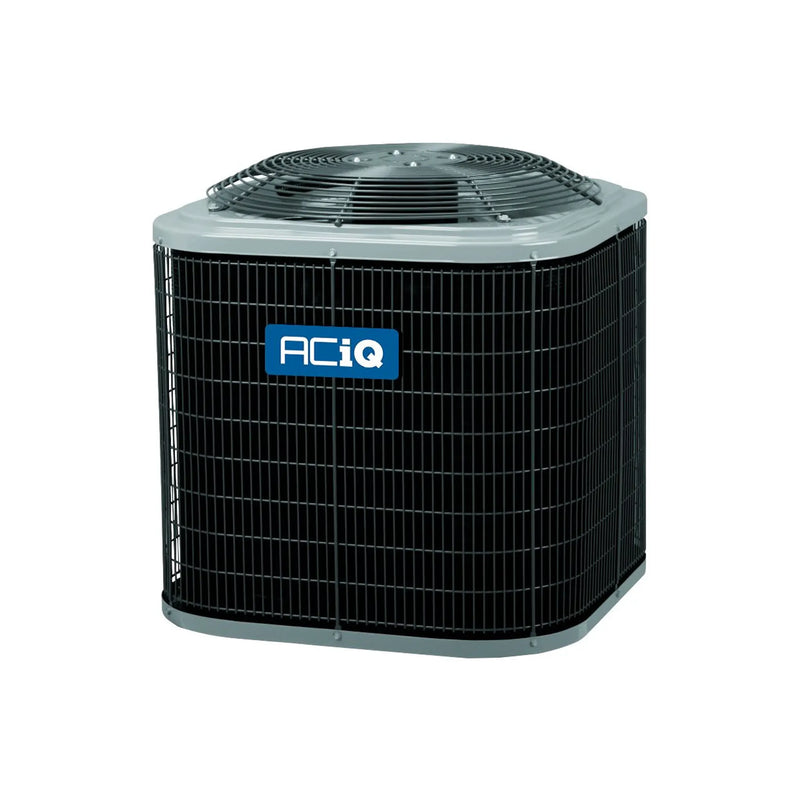

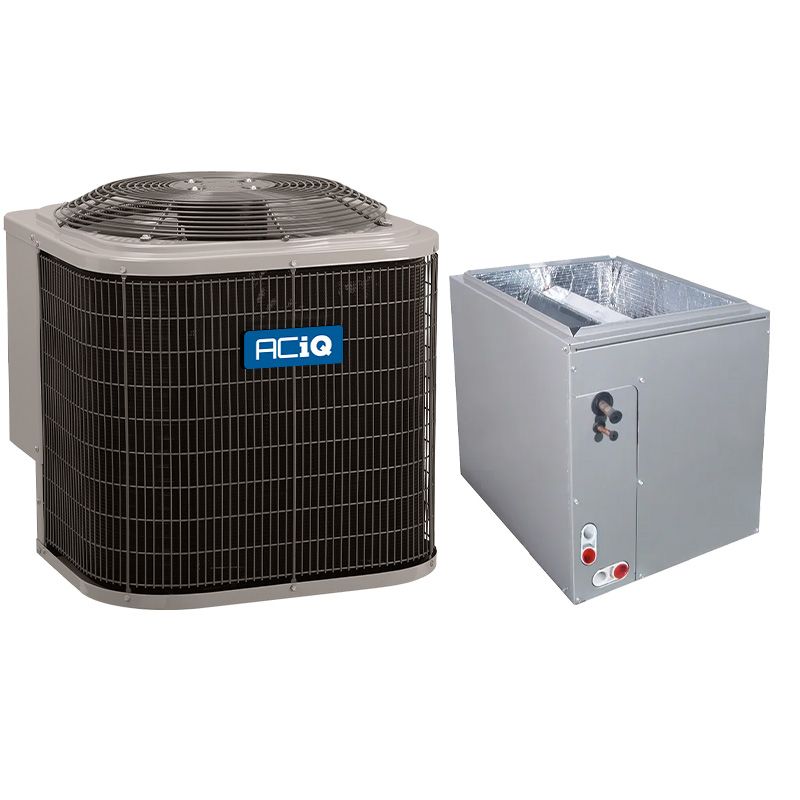

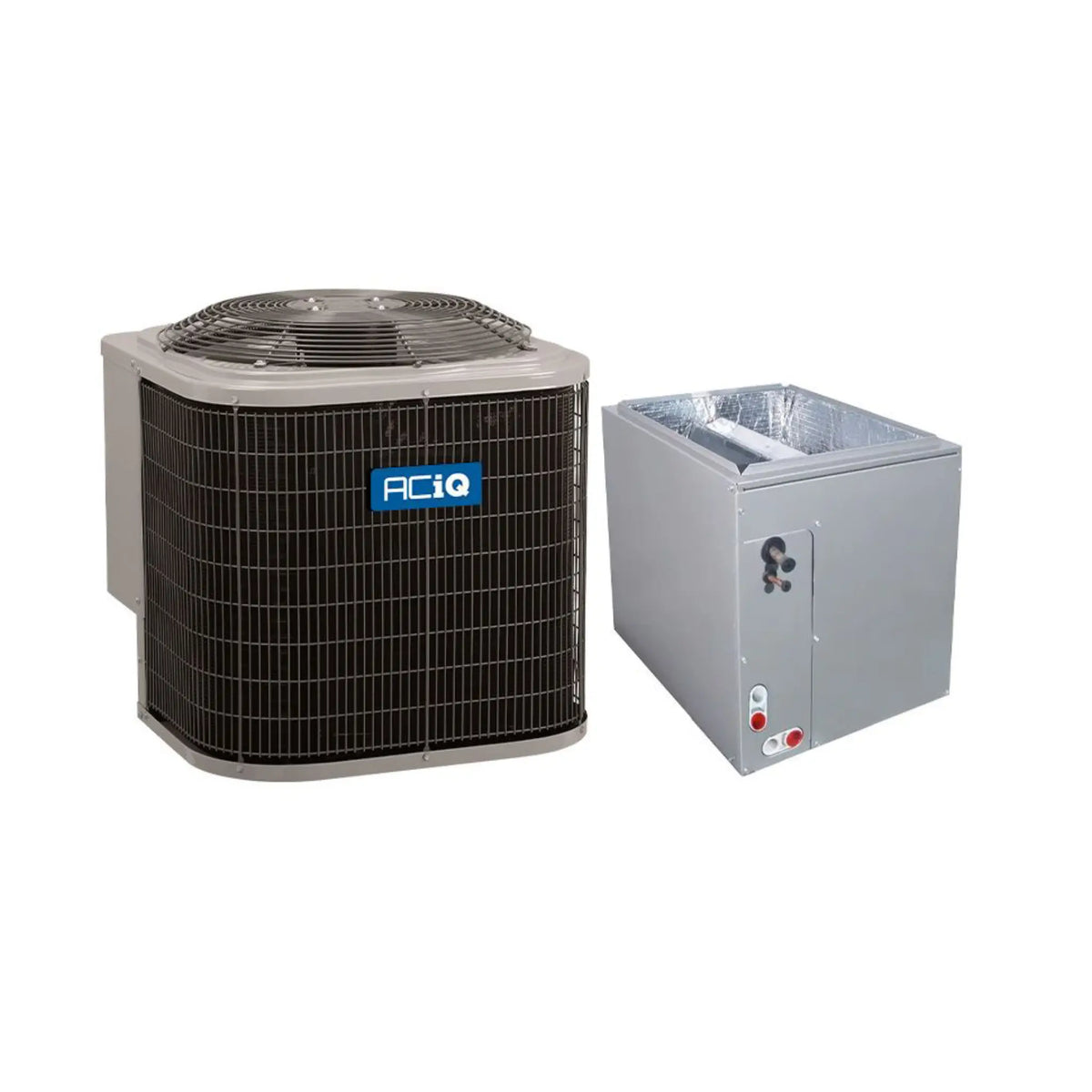

ACIQ R5A4S30AKANA pairs a 2.5-ton 13.4 SEER2 outdoor air conditioner condenser with the ACIQ EAM5X42M21A 21-inch multi-positional cased evaporator coil. The condenser is a single-stage scroll compressor unit charged for R454B and rated at 30,000 BTU with 208/230V 1 Phase power. The coil includes a factory-installed TXV and supports upflow, downflow, and horizontal installations for residential cooling with a matched indoor blower or air handler.

• 30,000 BTU (2.5 ton) condenser; 13.4 SEER2; single-stage scroll compressor; R454B refrigerant.

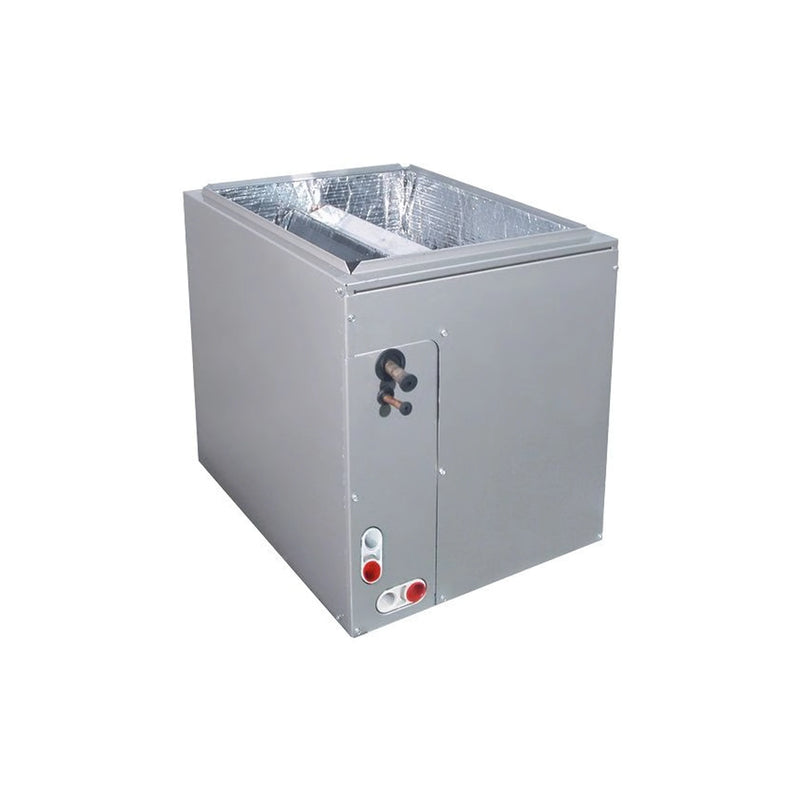

• 21" multi-positional A-coil with factory-installed TXV; supports upflow, downflow, and horizontal; coil line sizes 3/8" liquid and 7/8" suction.
• Electrical: 208/230V 1 Phase 60 Hz; max breaker 25 Amps, min breaker 16.2 Amps; UL listed.

Product Highlights

Matched 2.5-ton condenser and 21-inch multi-positional cased coil for residential air conditioning; single-stage scroll compressor and factory-installed TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S30AKANA / EAM5X42M21A

Technical Specifications

• Brand: ACIQ
• Condenser MPN: R5A4S30AKANA
• Evaporator Coil MPN: EAM5X42M21A
• Cooling Capacity (BTU): 30000
• Condenser Tonnage: 2.5 Ton
• SEER2: 13.4
• EER2: 11.0-13.5
• Compressor Type: Scroll, single stage
• Condenser Stages: Single stage
• Maximum Airflow (CFM): 2700
• Sound Level (dBA): 72
• Motor RPM: 825
• Horsepower: 1/10 HP
• Refrigerant: R454B
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 7/8"
• Input Voltage: 208/230V 1 Phase 60 Hz
• Maximum Breaker Size: 25 Amps
• Minimum Breaker Size: 16.2 Amps
• Connection Type: Sweat
• Certification: UL Listed
• Condenser Dimensions (H x W x D): 31 11/16" x 31 3/16" x 31 3/16"
• Coil Dimensions (H x W x D): 29 3/4" x 21" x 20 5/8"
• Condenser Weight (lbs): 166
• Coil Weight (lbs): 80
• Factory Features: Filter drier included (field-installed); reinforced corner posts and inlet grille
• Coil Features: Factory-installed TXV; multi-positional (upflow, downflow, horizontal)
• Precharged Line Set Length: 15-foot line set (factory pre-charged)
• Application: Residential cooling; requires compatible indoor blower, air handler, or furnace
• Replaces (Condenser): R4A4S30AKANA
• Equivalent Models: Carrier 24ABB330ABN3; Tempstar R4A330GKH; Bryant 113ANA030000; Coil equivalents: Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
