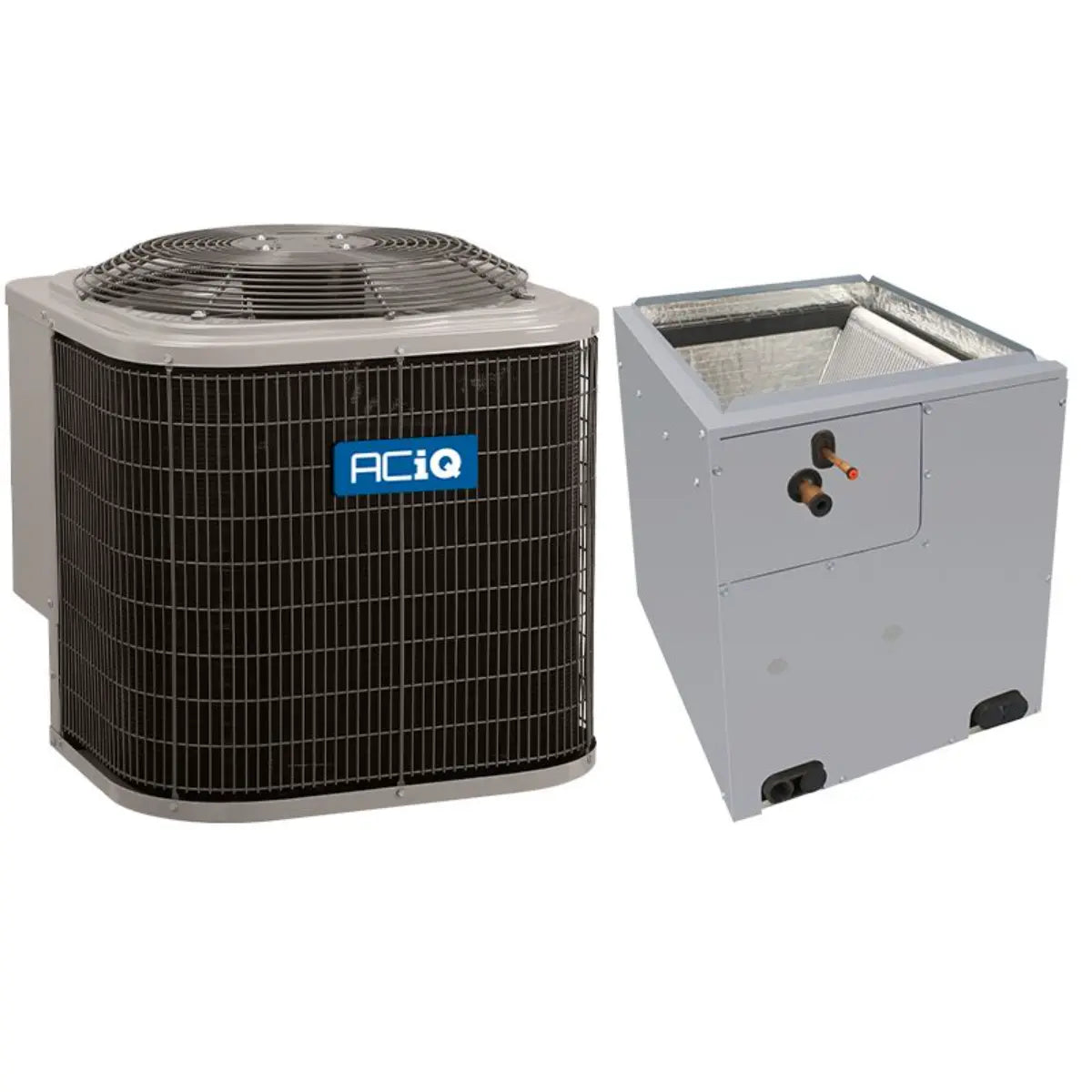

Aciq R5A4S30AKANA 2.5 Ton 13.4 SEER2 Air Conditioner with 17.5 in Multi-Positional Cased Coil EAM5X30M17A

Product Description

Aciq R5A4S30AKANA / EAM5X30M17A is a packaged 2.5 ton residential cooling system that pairs a 2.5 ton AC-only condenser (R5A4S30AKANA) with a 17.5 in multi-positional A-coil (EAM5X30M17A). The condenser provides 30,000 BTU cooling at 13.4 SEER2 using R454B refrigerant with a single-stage scroll compressor and 208/230 V 1 phase power. The coil is factory-equipped with a TXV and supports upflow, downflow, or horizontal installation.

• Condenser: 2.5 ton, 30,000 BTU, 13.4 SEER2, single-stage scroll compressor, R454B refrigerant
• Electrical and performance: 208/230 V 1 phase 60 Hz, maximum airflow ~2700 CFM, sound level 72 dBA
• Coil: 17.5 in multi-positional A-coil with factory-installed TXV, 3/8 in liquid line and 3/4 in suction line

Product Highlights

Packaged 2.5 ton AC and 17.5 in multi-positional A-coil; R454B refrigerant; factory TXV

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S30AKANA / EAM5X30M17A

Technical Specifications

• Brand: Aciq
• Model / MPN: R5A4S30AKANA / EAM5X30M17A
• Tonnage: 2.5 Ton
• Cooling Capacity: 30000 BTU
• SEER2: 13.4
• EER2: 11.0-13.5
• Refrigerant: R454B
• Compressor Type: Scroll
• Stages: Single Stage
• Maximum Airflow: 2700 CFM
• Decibel Level: 72 dBA
• Motor RPM: 825
• Horsepower: 1/10 HP
• Input Voltage: 208/230 V 1 Phase 60 Hz
• Max Breaker Size: 25 Amps
• Min Breaker Size: 16.2 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Connection Type: Sweat
• Condenser Dimensions (H x W x D): 31 11/16" x 31 3/16" x 31 3/16"
• Condenser Weight: 166.00 lbs
• Coil SKU / MPN: EAM5X30M17A
• Coil Type: A-Coil
• Coil Configuration: Multi-Positional (upflow/downflow/horizontal)
• Factory-installed TXV: Yes
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Dimensions (H x W x D): 25 13/16" x 17 1/2" x 20 5/8"
• Coil Weight: 66.50 lbs
• Filter Drier: Included (field-installed)
• Certification: UL Listed
• Condenser Equivalent: Carrier 24ABB330ABN3; Tempstar R4A330GKH; Bryant 113ANA030000
• Coil Equivalent: Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
• Maximum CFM: 2700 CFM
• Application: Residential central air conditioning (AC-only condenser; coil compatible with AC-only or heat pump condensers)
