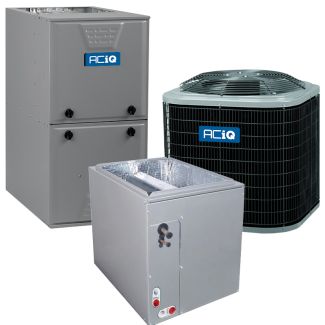

ACIQ R5A4S30AKANA 2.5 Ton 13.4 SEER2 96% 60,000 BTU Furnace & AC System - R454B Multi-Positional

Product Description

The ACIQ model R5A4S30AKANA is a complete 2.5 ton heating and cooling system. This unit offers a cooling capacity of 30,000 BTU and a heating capacity of 60,000 BTU. It features a 13.4 SEER2 rating which indicates good energy efficiency. The furnace is rated at 96% efficiency and has a two-stage operation for better performance. The system is designed for various installation configurations including upflow, downflow, and horizontal setups.

• Includes R454B refrigerant, compliant with new standards.
• UL Listed for safety and reliability.
• Comes with a 10-year parts warranty upon online registration.

Product Highlights

This combination unit ensures efficient heating and cooling for residential applications. Its multi-positional capability allows for versatile installation, making it suitable for various home designs.

Product Information

Standard Information

• Brand: ACIQ
• MPN: R5A4S30AKANA

Technical Specifications

• Cooling BTU: 30000
• Maximum CFM: 2700
• Decibel Level (dBA): 72
• Motor RPM: 825
• Horsepower: 1/10 HP
• Refrigerant: R454B
• SEER2: 13.4
• Compressor Type: Scroll
• Electrical Requirements: 208/230v 1 Phase 60 Hz
• Height: 31 11/16 inches
• Width: 31 3/16 inches
• Depth: 31 3/16 inches
• Warranty: 10 years parts warranty
