ACIQ R5A4S30AKANA 2.5 Ton 13.4 SEER2 96% 40,000 BTU Furnace & AC System - R454B Upflow / Downflow

Product Description

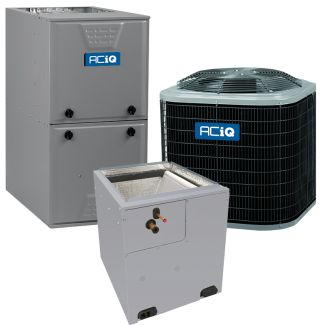

The ACIQ R5A4S30AKANA is a versatile HVAC system that includes a two-part setup: a 2.5 ton air conditioner and a 40,000 BTU gas furnace. This unit is designed for both upflow and downflow applications, making it adaptable for any installation scenario. With a SEER2 rating of 13.4 and AFUE of 96%, it maintains high energy efficiency.

• Dual functionality: Air conditioning and heating in one system.
• Operates on the new R454B refrigerant, compliant with regulations.
• Quiet operation at 72 decibels, ensuring a comfortable environment.

Product Highlights

This ACIQ system is efficient and environmentally friendly with its new refrigerant. It has been designed to minimize noise and maximize comfort.

Product Information

Standard Information

• Brand: ACIQ
• Warranty: 10 Years Parts Warranty with Online Registration

Technical Specifications

• Cooling BTU: 30000
• Heating BTU: 40000
• Weight: 166
• Electrical: 208/230V 1 Phase 60 Hz
• Maximum CFM: 2700
• Horsepower: 1/10 HP
• Compressor Type: Scroll
• Decibel Level: 72 dBA
• Height: 31 11/16 inches
• Width: 31 3/16 inches
• Depth: 31 3/16 inches
• Liquid Valve Size: 3/8 inches
• Suction Valve Size: 3/4 inches
