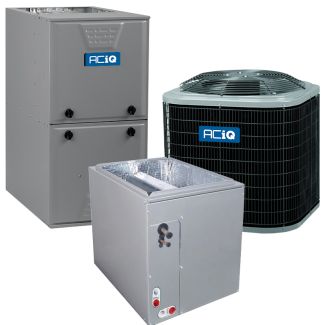

ACIQ R5A4S30AKANA 2.5 Ton 13.4 SEER2 96% 40,000 BTU Furnace & AC System - R454B Multi-Positional

Product Description

ACIQ R5A4S30AKANA is a multi-positional heating and cooling system that combines efficiency with advanced technology.

• 13.4 SEER2 rating for effective cooling.
• Operates with the new R454B refrigerant.
• Includes a 10-year parts warranty.

Product Highlights

This system offers significant energy savings while providing comfort year-round.

Product Information

Standard Information

• Brand: ACIQ
• Weight: 166 pounds

Technical Specifications

• Cooling BTU: 30,000 BTU
• Maximum CFM: 2,700
• Decibel Level: 72 dBA
• Motor RPM: 825
• Horsepower: 1/10 HP
• Refrigerant: R454B
• SEER2: 13.4
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Liquid Valve Size: 3/8 inches
• Suction Valve Size: 3/4 inches
• Electrical: 208/230V, 1 Phase, 60 Hz
• Max Breaker Size: 25 Amps
• Min. Breaker Size: 16.2 Amps
• Tonnage: 2.5 Ton
• Connection: Sweat
• Certification: UL Listed
• Height: 31 11/16 inches
• Width: 31 3/16 inches
• Depth: 31 3/16 inches
• Warranty: 10 years parts warranty with online registration
• Safety Information: This product may contain chemicals known to the state of California to cause cancer or birth defects. Please see Prop 65 warning.
