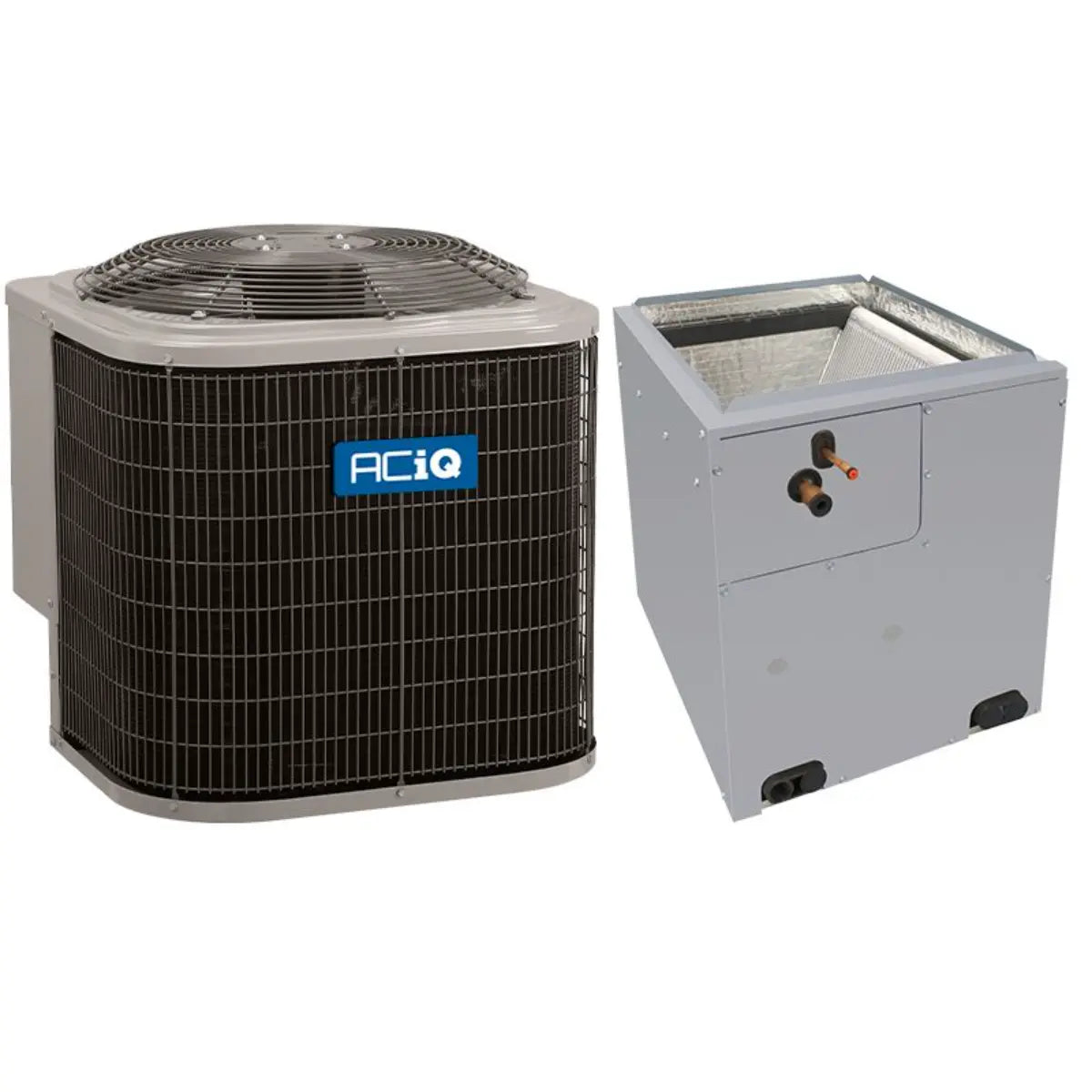

Aciq R5A4S24AKANA / EVD5X24M17A 2 Ton 13.4 SEER2 air conditioner with 17.5 inches vertical cased coil (17.5 inches) replaces R4A4S24AKANA

Product Description

ACIQ R5A4S24AKANA / EVD5X24M17A is a 2 ton air conditioning package that pairs a 13.4 SEER2 single-stage condenser with a 17.5-inch vertical cased V-coil. The condenser delivers 24,000 BTU, uses a scroll compressor, operates on 208/230V 1 phase 60 Hz and is factory pre-charged for a 15-foot line set with R454B refrigerant. The coil includes a factory-installed TXV, an insulated V-coil design and a corrosion-resistant PBT drain pan.

• Factory pre-charged for a 15-foot line set; refrigerant: R454B.
• Condenser: single-stage scroll compressor, 13.4 SEER2, 24,000 BTU; electrical 208/230V 1 phase 60 Hz.
• Coil: 17.5-inch fully insulated V-coil with factory-installed TXV and corrosion-resistant PBT drain pan; supports upflow/downflow.

Product Highlights

2 ton, 13.4 SEER2 condenser with 17.5" vertical cased V-coil; R454B refrigerant; factory-installed TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S24AKANA / EVD5X24M17A

Technical Specifications

• Model (Condenser): R5A4S24AKANA
• Model (Coil): EVD5X24M17A
• Capacity: 2 Ton
• Efficiency (SEER2): 13.4
• Cooling Capacity (BTU): 24000
• Refrigerant: R454B
• Compressor Type: Scroll
• Stages: Single Stage
• Factory Refrigerant Charge: Pre-charged for 15-foot line set
• Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Maximum CFM: 2100
• Condenser Dimensions (W x D x H): 25 3/4" x 25 3/4" x 32 1/16"
• Condenser Weight: 140 lbs
• Condenser Decibel Level: 74 dBA
• Condenser Motor RPM: 1100 RPM
• Condenser Max Breaker Size: 20 Amps
• Condenser Min Breaker Size: 12.1 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Coil Style: Vertical cased V-coil
• Coil Dimensions (W x D x H): 17 1/2" x 20 5/8" x 14 11/16"
• Coil Width: 17.5"
• Coil Weight: 39 lbs
• Coil Connection Type: Sweat
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 5/8"
• Coil Configuration: Upflow / Downflow
• Coil Features: Factory-installed TXV kit; fully insulated; corrosion-resistant PBT drain pan
• Certification: UL Listed
• Replaces / Equivalent (Condenser): Replaces R4A4S24AKANA; Carrier 24ABB324ABN3; Tempstar R4A324GKH; Bryant 113ANA024000
• Replaces / Equivalent (Coil): Replaces END4X18L14A, EVD4X24M17A; Carrier CVPVA1814XMC; Bryant CNPVP1814ALA
• Product Features: Basic efficiency; new refrigerant compliant; filter drier included (field-installed)
