Aciq R5A4S24AKANA EAM5X37M21A 2 Ton 13.4 SEER2 Air Conditioner with 21 inches Multi-Positional Cased Coil Replaces R4A4S24AKANA / EAM4X37L21A

Product Description

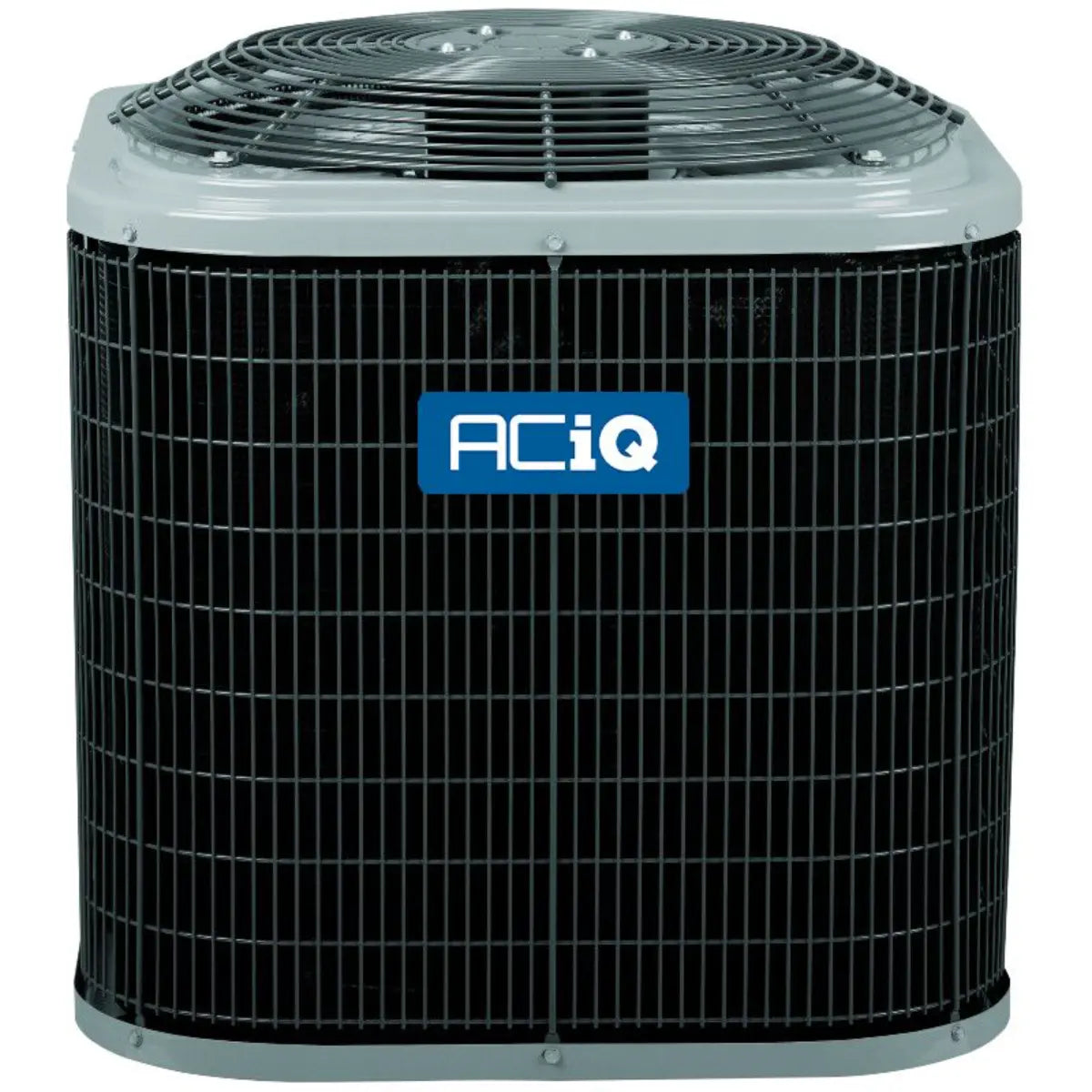

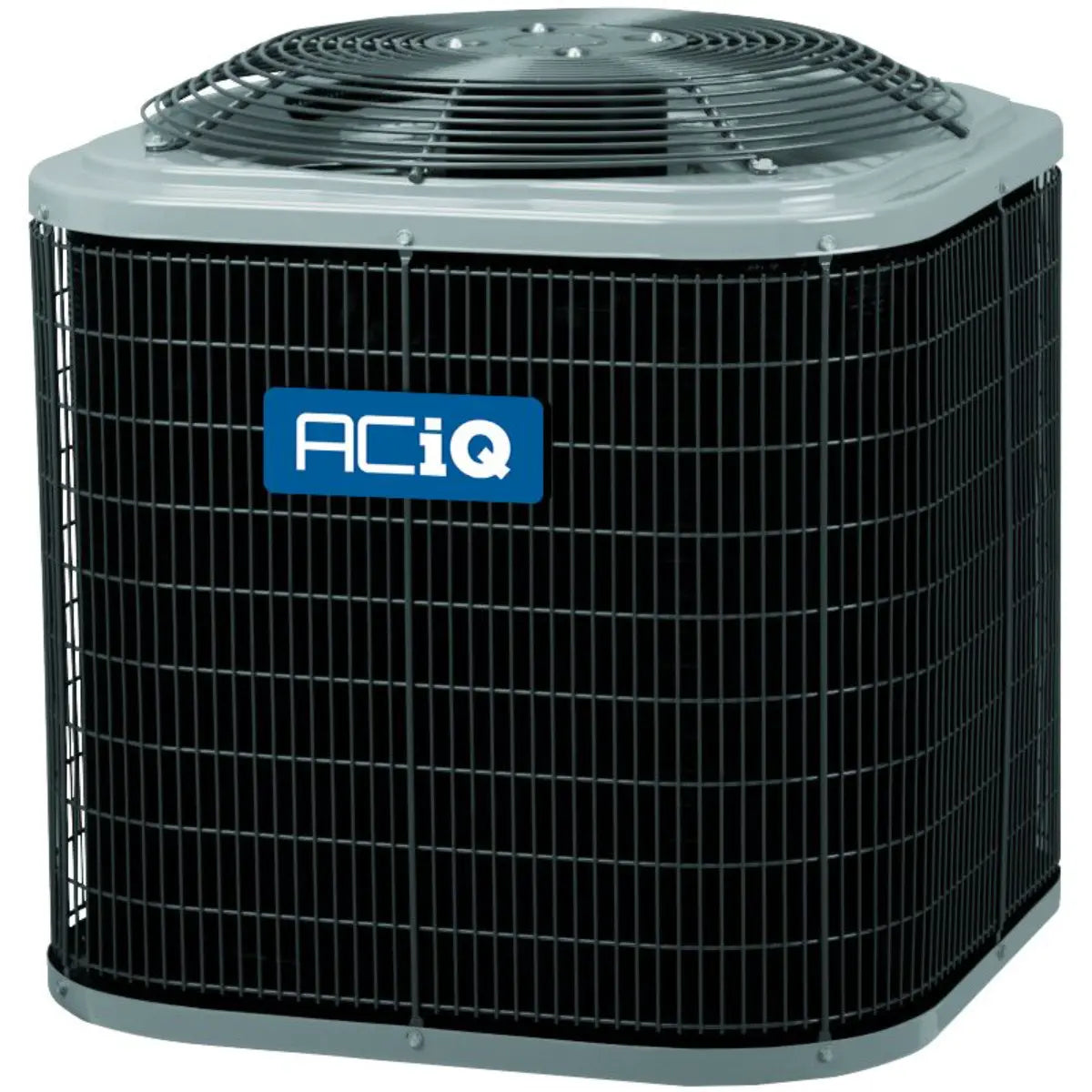

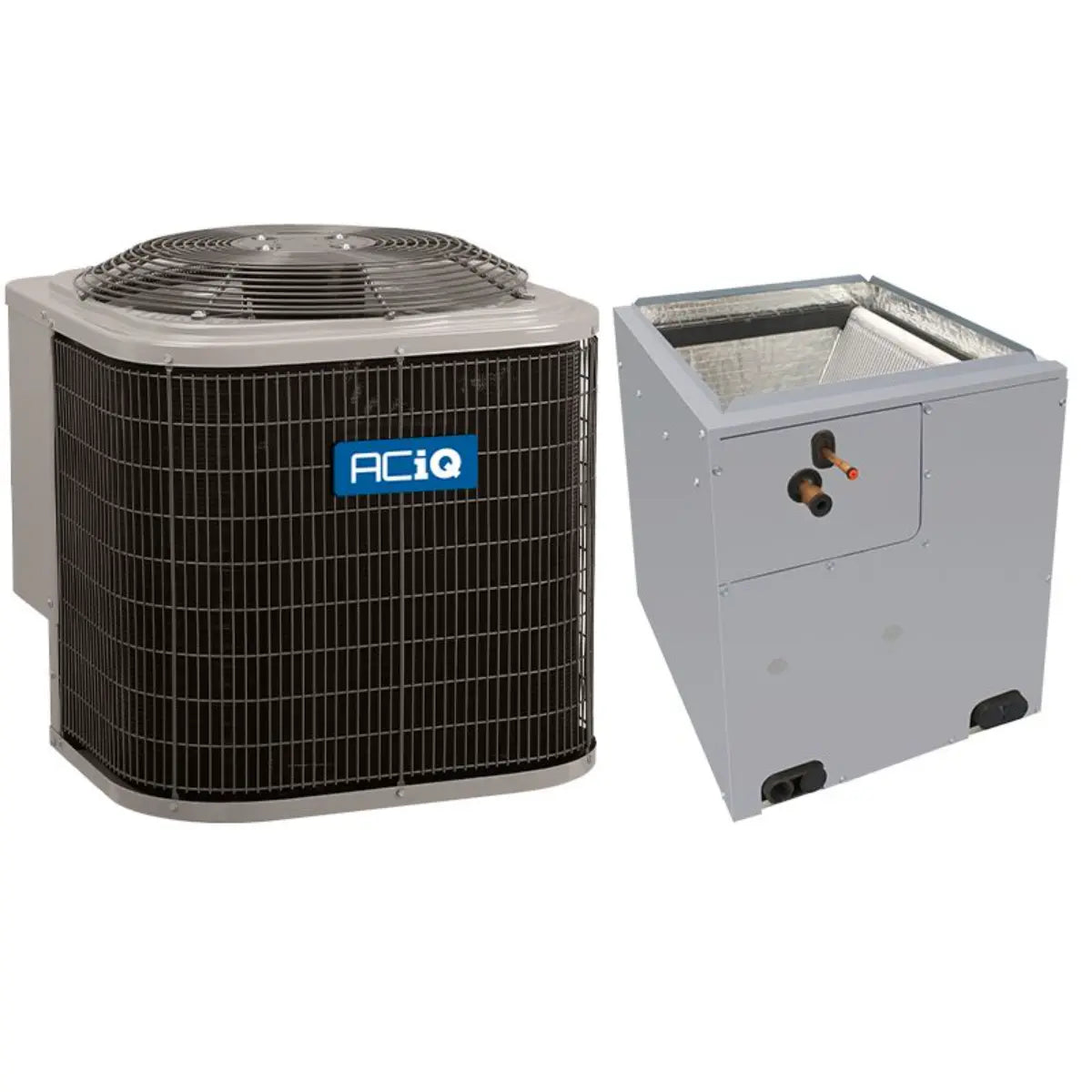

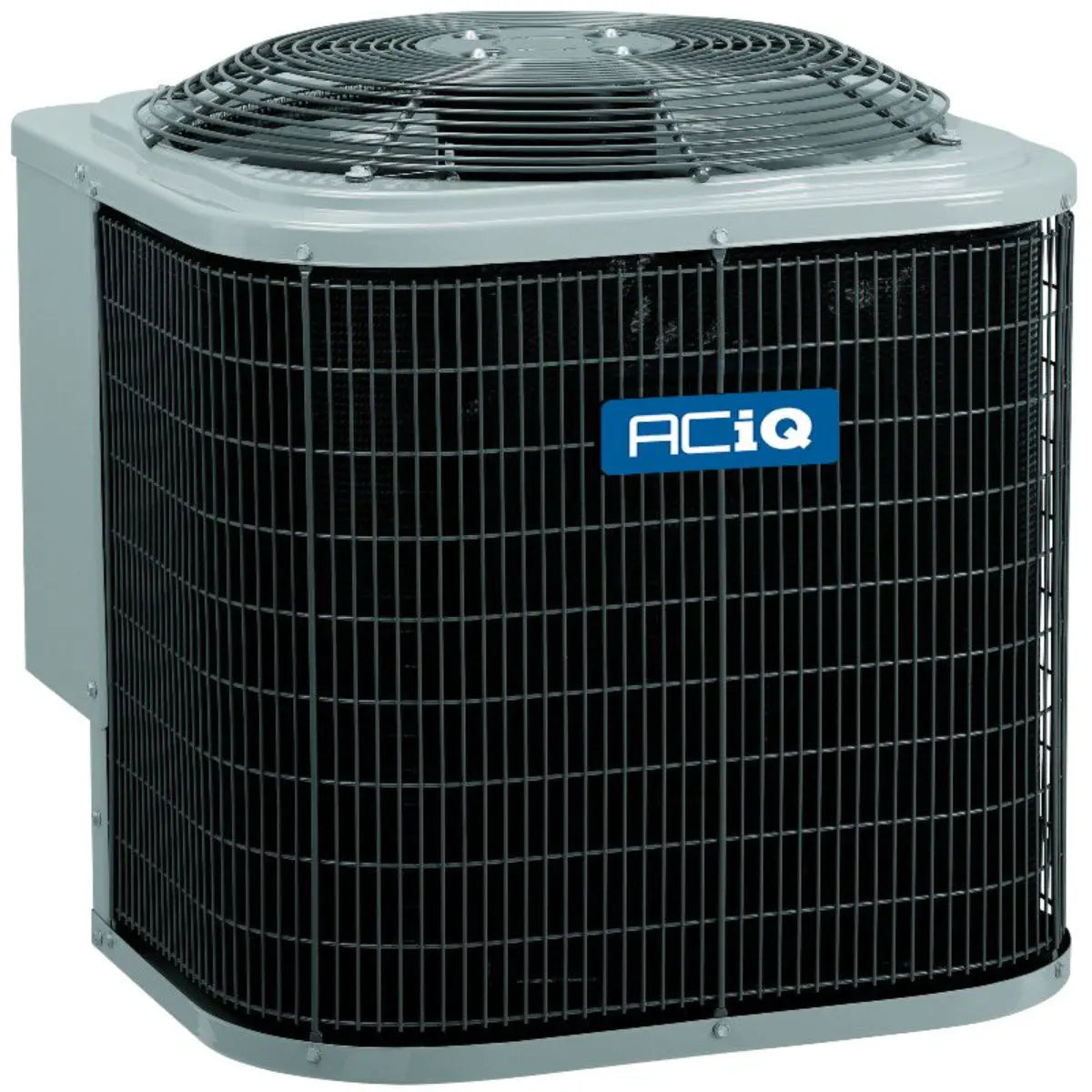

ACIQ R5A4S24AKANA paired with EAM5X37M21A is a matched air conditioning package that includes a 2-ton, 13.4 SEER2 outdoor condenser and a 21-inch multi-positional evaporator cased coil. The condenser uses R454B refrigerant with a single-stage scroll compressor, is factory pre-charged for a 15-foot line set, and operates on 208/230V 1-phase 60 Hz. The coil features a factory-installed TXV and sweat connections for multiple installation orientations.

• 2 Ton condenser: 13.4 SEER2, 24,000 BTU, single-stage scroll compressor, R454B refrigerant.
• Condenser pre-charged for a 15-foot line set; filter drier included (field-installed); 208/230V 1‑phase electrical.

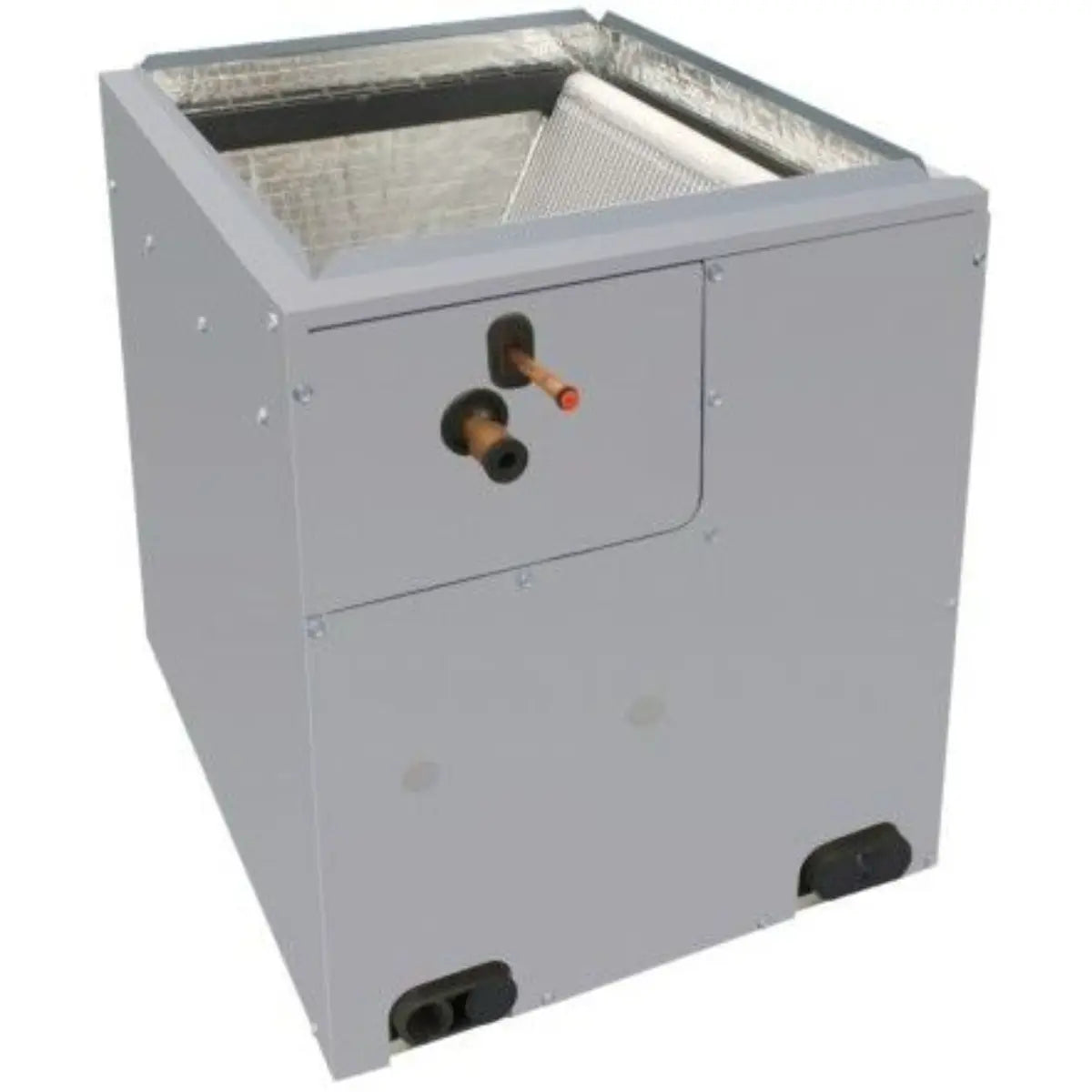

• 21" multi-positional A-coil with factory TXV, sweat connections, 3/8" liquid and 3/4" suction line sizes; UL listed.

Product Highlights

Matched 2-ton R454B condenser and 21-inch multi-positional evaporator coil with factory TXV and pre-charged line set.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S24AKANA / EAM5X37M21A

Technical Specifications

• Brand: ACIQ
• Condenser MPN: R5A4S24AKANA
• Coil MPN: EAM5X37M21A
• Condenser Tonnage: 2 Ton
• Coil Tonnage: 2 Ton
• SEER2: 13.4
• Cooling Capacity (BTU): 24,000
• Refrigerant: R454B
• Compressor Type: Scroll
• Compressor Stages: Single stage
• Factory Refrigerant Charge: Pre-charged for 15' line set
• Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Dimensions (H x W x D): 32 1/16" x 25 3/4" x 25 3/4"
• Condenser Weight: 140 lbs
• Coil Dimensions (H x W x D): 29 3/4" x 21" x 20 5/8"
• Coil Weight: 86 lbs
• Coil Configuration: Multi-positional (A-coil)
• Coil Connection Type: Sweat
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Filter Drier: Included (field-installed)
• Max Breaker Size: 20 Amps
• Min Breaker Size: 12.1 Amps
• Maximum CFM: 2100
• Noise Level: 74 dBA
• Certification: UL Listed
• Condenser Replaces: R4A4S24AKANA
• Coil Replaces: EAM4X37L21A
• Condenser Motor RPM: 1100
