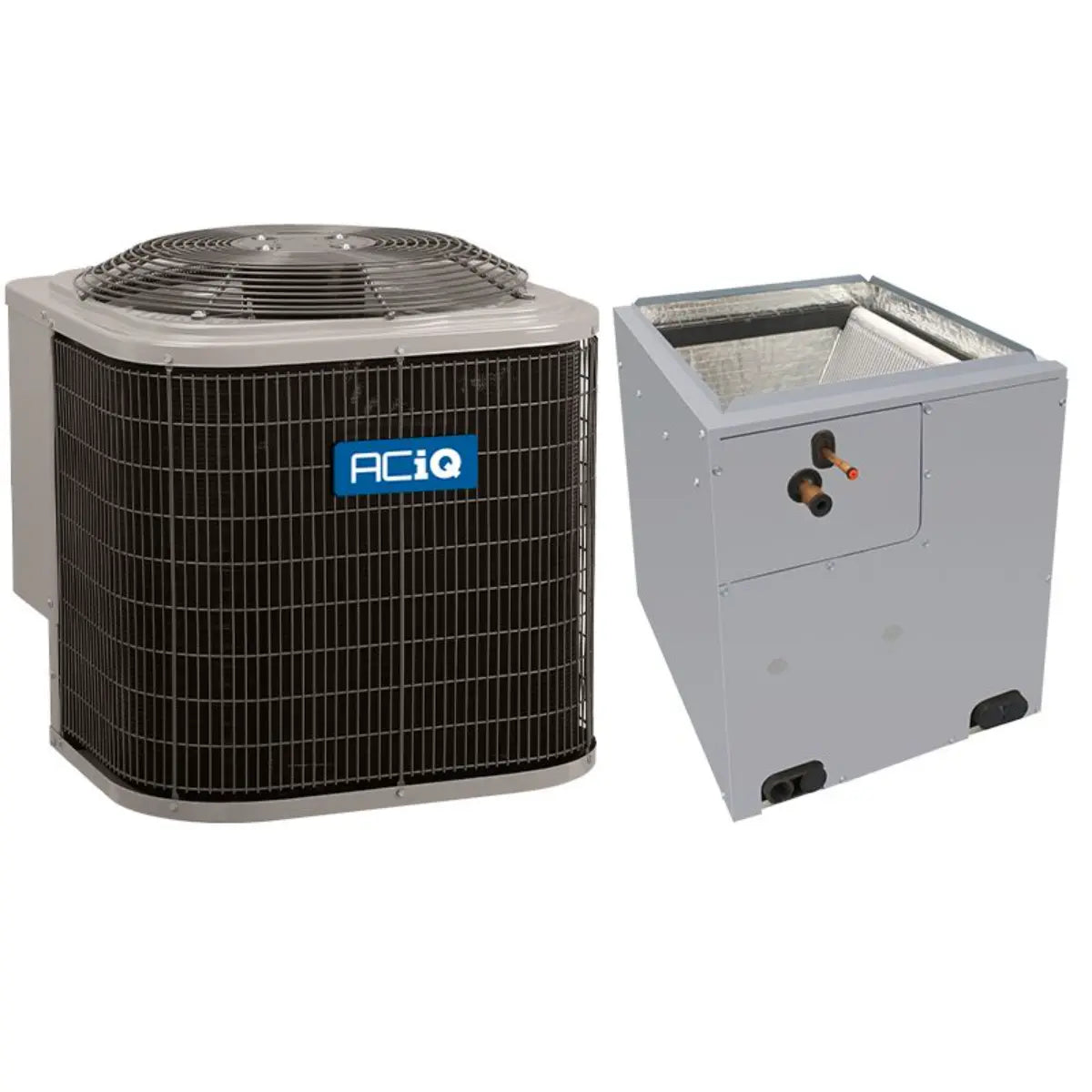

Aciq R5A4S24AKANA / EAM5X24M17A 2 Ton 13.4 SEER2 Air Conditioner with 17.5 in Multi-Positional Cased Coil (Replaces R4A4S24AKANA / EAM4X24L17A)

Product Description

The Aciq R5A4S24AKANA / EAM5X24M17A package includes a 2 ton, 13.4 SEER2 air conditioner condenser and a 17.5 in multi-positional evaporator cased coil charged for R454B refrigerant. The condenser is single-stage with a scroll compressor and is factory pre-charged for a 15-foot line set; the coil features a factory-installed TXV kit and supports upflow, downflow, and horizontal installation. The system is UL listed.

• 2 ton (24,000 BTU) cooling capacity with 13.4 SEER2 efficiency and R454B refrigerant
• Condenser: single-stage scroll compressor, factory pre-charged for 15 ft line set, 208/230 V 1 phase 60 Hz
• Evaporator coil: 17.5 in multi-positional cased coil with factory-installed TXV kit and sweat connections

Product Highlights

2 ton 13.4 SEER2 AC condenser and 17.5 in multi-positional cased coil; factory pre-charged for 15 ft line set; UL listed

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S24AKANA / EAM5X24M17A

Technical Specifications

• Brand: Aciq
• Model (Condenser): R5A4S24AKANA
• Model (Coil): EAM5X24M17A
• Cooling Capacity: 2 Ton (24,000 BTU)
• SEER2: 13.4
• Refrigerant: R454B
• Condenser Type: AC-only condenser, single stage
• Compressor Type: Scroll
• Maximum CFM: 2100
• Condenser Dimensions (W x D x H): 25.75 in x 25.75 in x 32.0625 in
• Condenser Weight: 140 lb
• Sound Level: 74 dBA
• Condenser Motor RPM: 1100
• Input Voltage: 208/230 V 1 Phase 60 Hz
• Condenser Refrigerant Charge: Factory pre-charged for 15 ft line set
• Condenser Connection: Sweat
• Condenser Liquid Valve Size: 3/8 in
• Condenser Suction Valve Size: 3/4 in
• Condenser Max Breaker Size: 20 Amps
• Condenser Min Breaker Size: 12.1 Amps
• Condenser Certification: UL Listed
• Coil Style: A-coil (multi-positional)
• Coil Dimensions (W x H x D): 17.5 in x 25.8125 in x 20.625 in
• Coil Weight: 58.6 lb
• Coil Connection: Sweat
• Coil Liquid Line: 3/8 in
• Coil Suction Line: 5/8 in
• Coil Configuration: Multi-positional (upflow, downflow, horizontal)
• Coil Certification: UL Listed
• Replaces (Condenser): R4A4S24AKANA
• Replaces (Coil): EAM4X24L17A
• Equivalent (Condenser): Carrier 24ABB324ABN3; Tempstar R4A324GKH; Bryant 113ANA024000
• Equivalent (Coil): Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
• Product Condition: New
