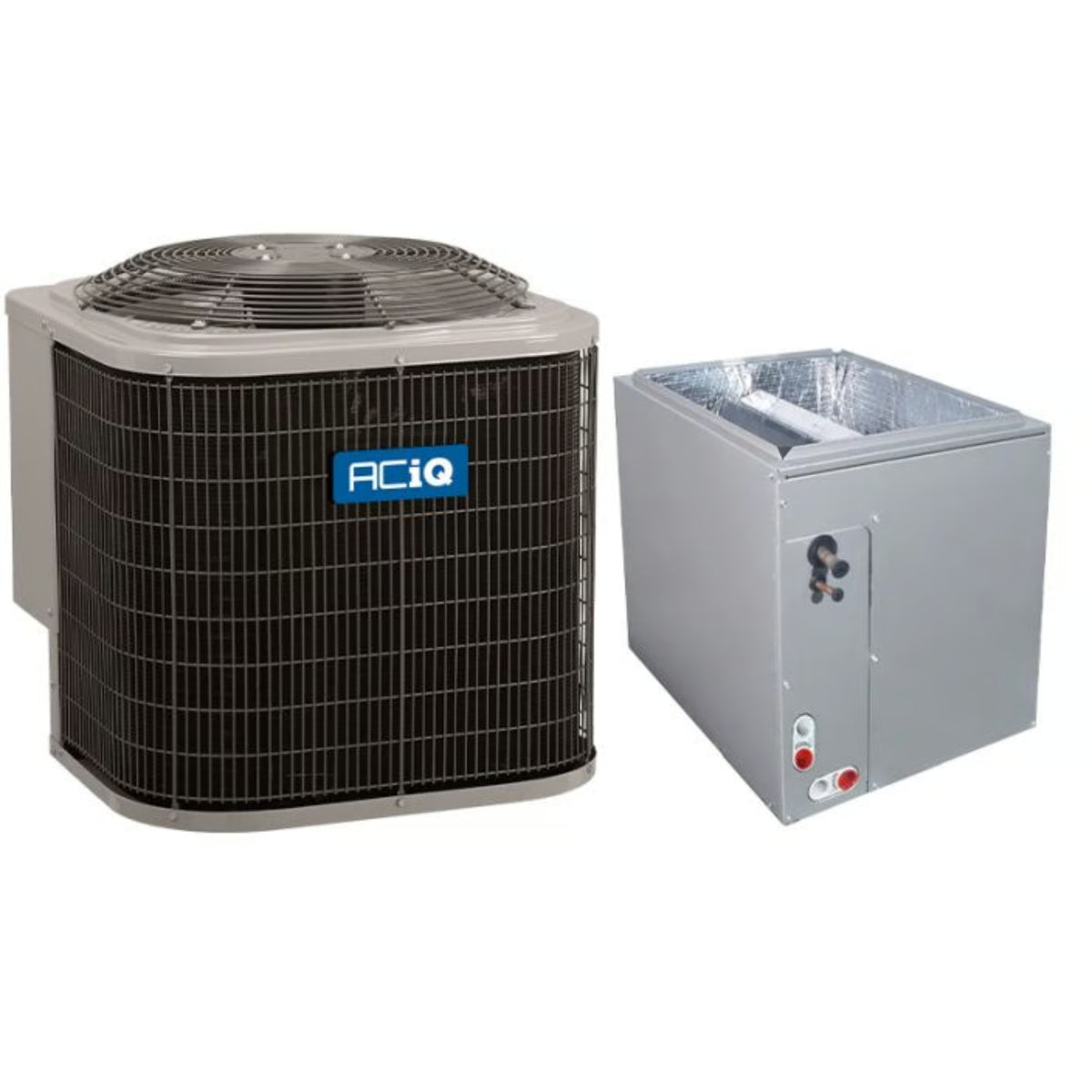

Aciq R5A4S24AKANA / EAM5X24M14A 2 Ton 13.4 SEER2 Air Conditioner with 14 in Multi-Positional Cased Coil (14 in) R4A4S24AKANA

Product Description

Aciq R5A4S24AKANA paired with EAM5X24M14A is a two-piece 2 ton, 13.4 SEER2 air conditioning system using R454B refrigerant. The outdoor condenser is a single-stage scroll compressor unit factory pre-charged for a 15-foot line set and the 14 in multi-positional cased evaporator coil includes a factory-installed TXV. The package provides 24,000 BTU cooling capacity and requires a compatible indoor blower or air handler.

• 2 ton cooling capacity (24,000 BTU) with 13.4 SEER2 efficiency and R454B refrigerant
• Outdoor condenser: single-stage scroll compressor, factory pre-charged for 15 ft line set, includes field-installable filter drier
• Indoor coil: 14 in multi-positional cased A-coil with factory-installed TXV, sweat connections

Product Highlights

2 ton AC-only condenser with 13.4 SEER2 and R454B; 14 in multi-positional cased evaporator coil with factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S24AKANA / EAM5X24M14A

Technical Specifications

• Brand: Aciq
• Condenser MPN: R5A4S24AKANA
• Coil MPN: EAM5X24M14A
• System Tonnage: 2 Ton
• Cooling Capacity (BTU): 24,000
• SEER2: 13.4
• Refrigerant: R454B
• Compressor Type: Scroll
• Condenser Stages: Single Stage
• Factory Refrigerant Charge: Pre-charged for 15 foot line set
• Maximum Airflow (CFM): 2100
• Sound Level (dBA): 74
• Motor RPM: 1100
• Electrical: 208/230V 1 Phase 60 Hz
• Condenser Min Breaker Size: 12.1 Amps
• Condenser Max Breaker Size: 20 Amps
• Condenser Liquid Valve Size: 3/8 in
• Condenser Suction Valve Size: 3/4 in
• Condenser Dimensions (H x W x D): 32.0625 in x 25.75 in x 25.75 in
• Condenser Weight (lbs): 140
• Coil Configuration: Multi-Positional (upflow/downflow/horizontal)
• Coil Style: Cased A-coil (evaporator coil)
• Coil Dimensions (H x W x D): 25.8125 in x 14.1875 in x 20.625 in
• Coil Weight (lbs): 54.5
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 5/8 in
• Coil Connection: Sweat
• Coil TXV: Factory-installed thermostatic expansion valve
• Filter Drier: Included for field installation
• Operation: Cooling only (requires compatible indoor coil or air handler)
• Certifications: UL Listed
• Condenser Replaces: R4A4S24AKANA
• Coil Equivalent Models: Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
• Condenser Equivalent Models: Carrier 24ABB324ABN3; Tempstar R4A324GKH; Bryant 113ANA024000
• AHRI Certificate: 216102452
