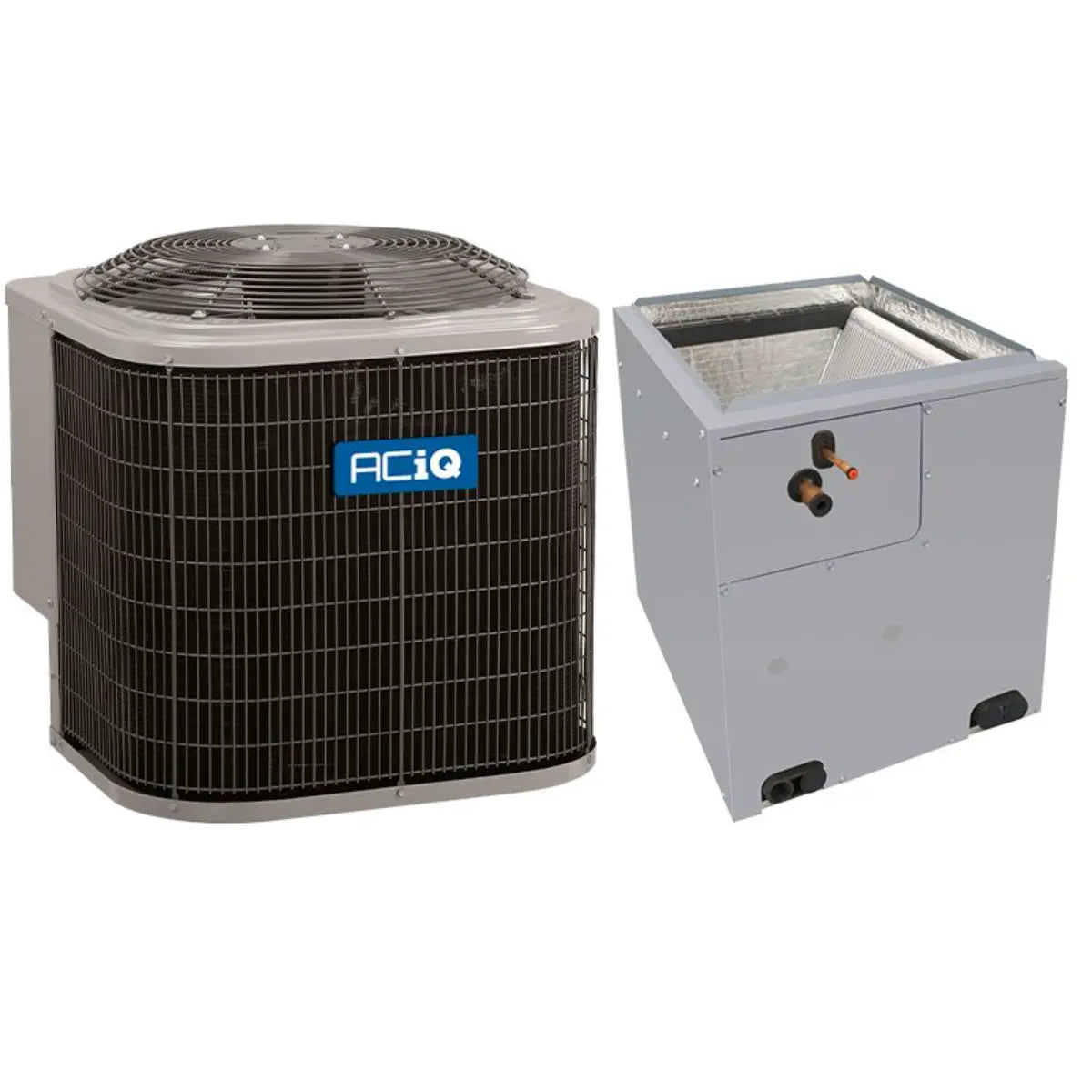

Aciq R5A4S24AKANA 2 Ton 13.4 SEER2 Air Conditioner with 14 in Vertical Cased Coil (14 in) R4A4S24AKANA

Product Description

The Aciq R5A4S24AKANA package pairs a 2 ton 13.4 SEER2 R454B condenser with the EVD5X24M14A 14 in vertical cased evaporator coil, providing 24,000 BTU cooling with a scroll compressor and single-stage operation. The condenser is factory pre-charged for a 15-foot line set and uses sweat connections; the coil is a fully insulated V-coil with a factory-installed TXV and a corrosion-resistant PBT drain pan. The condenser cannot provide heating and requires a compatible indoor coil or air handler to operate.

• Condenser: 24,000 BTU (2 ton), 13.4 SEER2, scroll compressor, single stage; factory pre-charged for 15 ft line set.
• Evaporator coil: 14 in cased V-coil, factory-installed TXV, corrosion-resistant PBT drain pan, supports upflow and downflow.
• Electrical and connections: 208/230 V 1 Phase 60 Hz; sweat connections; liquid line 3/8 in, suction line 5/8 in; UL listed.

Product Highlights

2 ton R454B condenser and 14 in vertical cased evaporator coil packaged for matched cooling: 24,000 BTU, 13.4 SEER2, factory pre-charged, TXV-equipped coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S24AKANA / EVD5X24M14A

Technical Specifications

• Brand: Aciq
• Model (Condenser): R5A4S24AKANA
• Model (Coil): EVD5X24M14A
• Package Description: 2 Ton 13.4 SEER2 air conditioner condenser with 14 in vertical cased coil, R454B
• Cooling Capacity (BTU): 24000
• Tonnage: 2 Ton
• SEER2 (Efficiency): 13.4
• Refrigerant: R454B
• Compressor Type: Scroll
• Compressor Stages: Single Stage
• Maximum Airflow (CFM): 2100
• Condenser Dimensions (W x D x H): 25 3/4 in x 25 3/4 in x 32 1/16 in
• Condenser Weight (lbs): 140.00
• Sound Level (dBA): 74
• Input Voltage: 208/230 V 1 Phase 60 Hz
• Liquid Line Size (Condenser): 3/8 in
• Suction Line Size (Condenser): 5/8 in
• Precharged Line Set: Pre-charged for 15-foot line set
• Connection Type: Sweat
• Maximum Breaker Size: 20 Amps
• Minimum Breaker Size: 12.1 Amps
• Condenser Certification: UL Listed
• Condenser Replaces: R4A4S24AKANA
• Coil Style: V-Coil (cased, fully insulated)
• Coil Dimensions (W x D x H): 14 3/16 in x 20 5/8 in x 14 11/16 in
• Coil Weight (lbs): 30.00
• Coil Connection: Sweat
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 5/8 in
• Coil Configuration: Upflow / Downflow
• Coil Features: Factory-installed TXV kit; corrosion-resistant PBT drain pan
• Coil Certification: UL Listed
• Product Features: Basic efficiency; new refrigerant compliant
