Aciq R5A4S18AKANA / FHMA5X18L0AA Air Conditioner Split System 1.5 Ton (Multi-Positional) FHMA5X18L0AA

Product Description

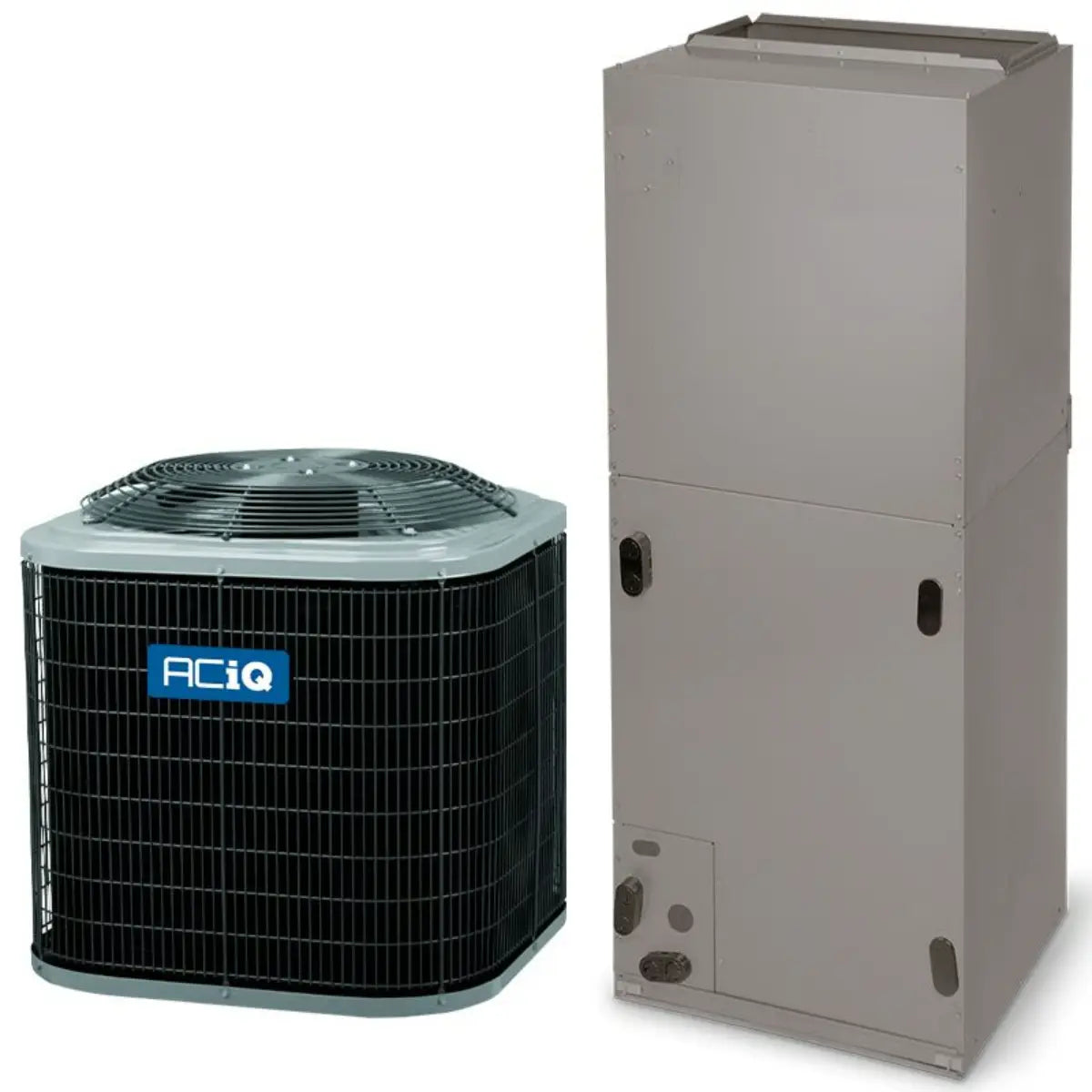

The Aciq R5A4S18AKANA / FHMA5X18L0AA is a 1.5 ton split air conditioning system that pairs an outdoor condenser with a 14-inch multi-positional indoor air handler. The condenser is a single-stage scroll compressor unit pre-charged with low-GWP R454B for a 15-foot line set, and the air handler includes a factory-installed TXV and a multi-tap 5-speed ECM blower for variable airflow and compatibility with optional electric heat kits.

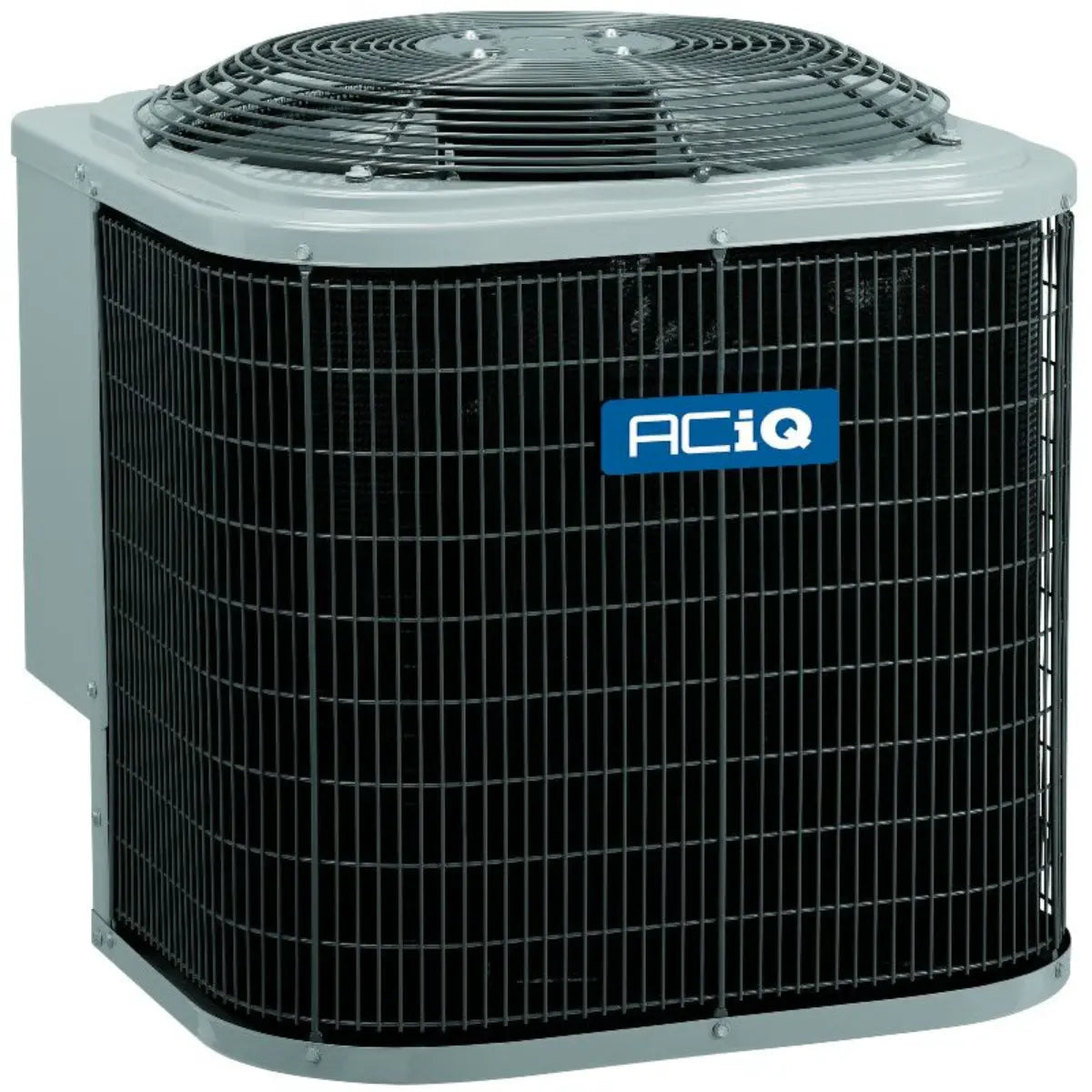

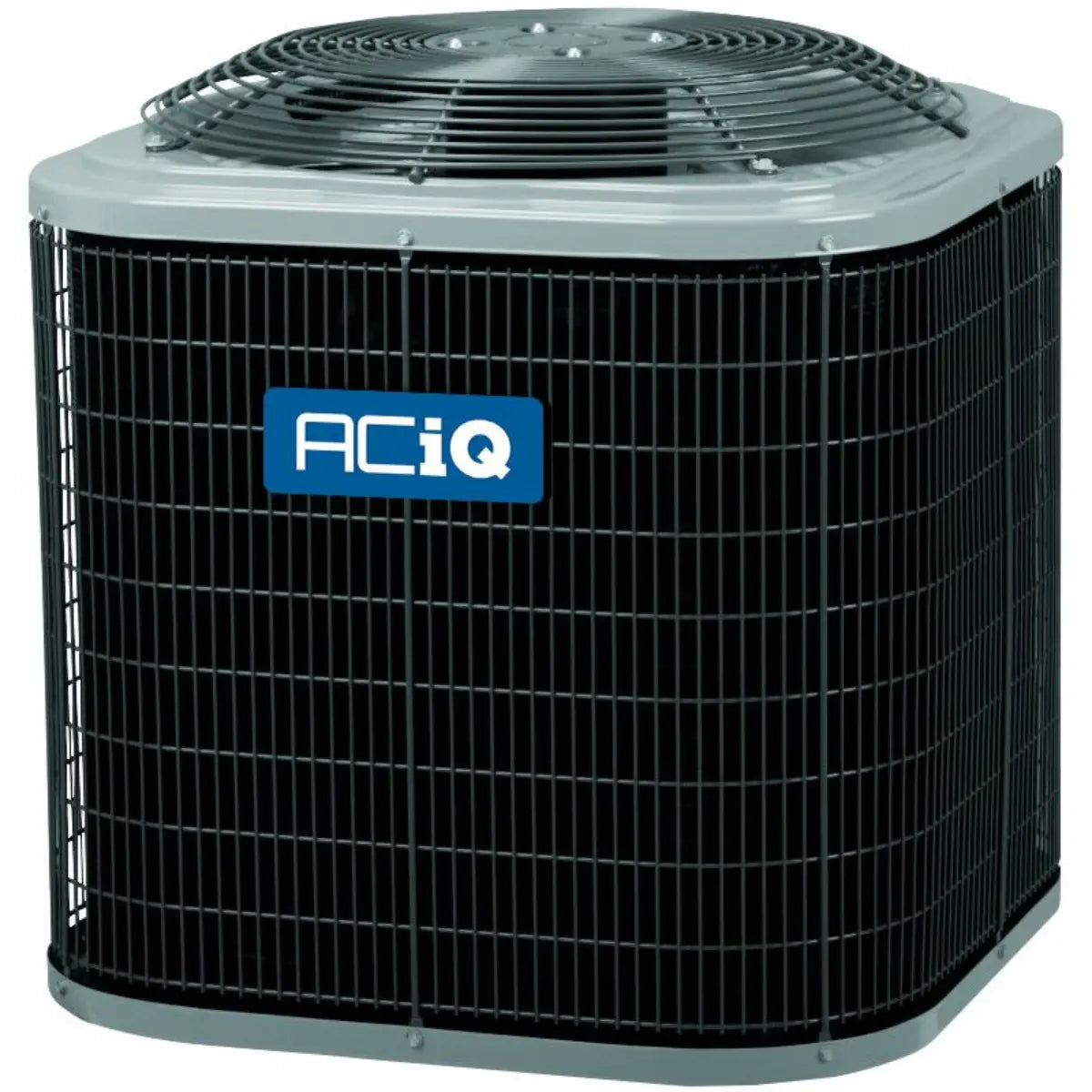

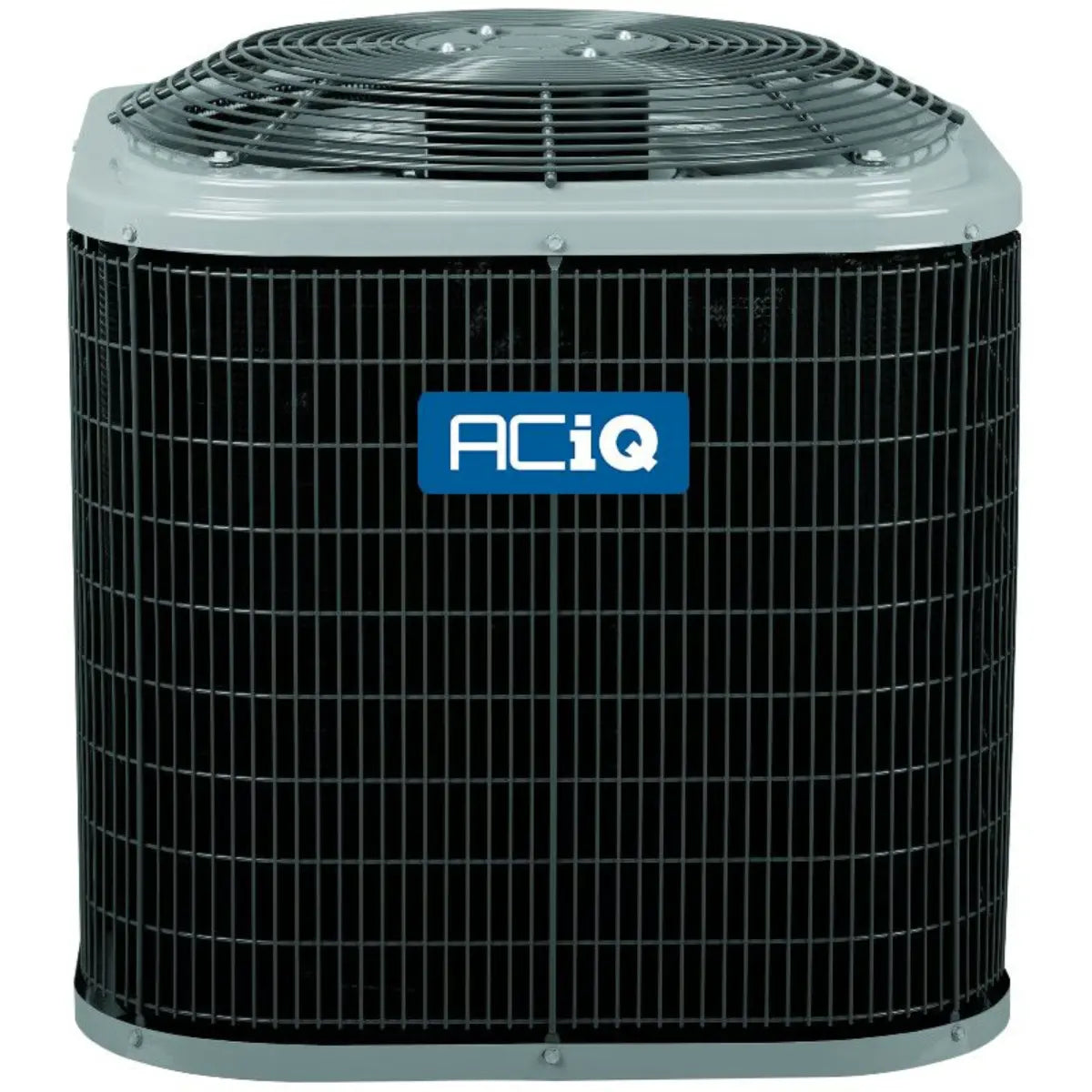

• Condenser: 1.5 ton, 13.4 SEER2, single-stage scroll compressor, pre-charged for 15-foot line set with R454B

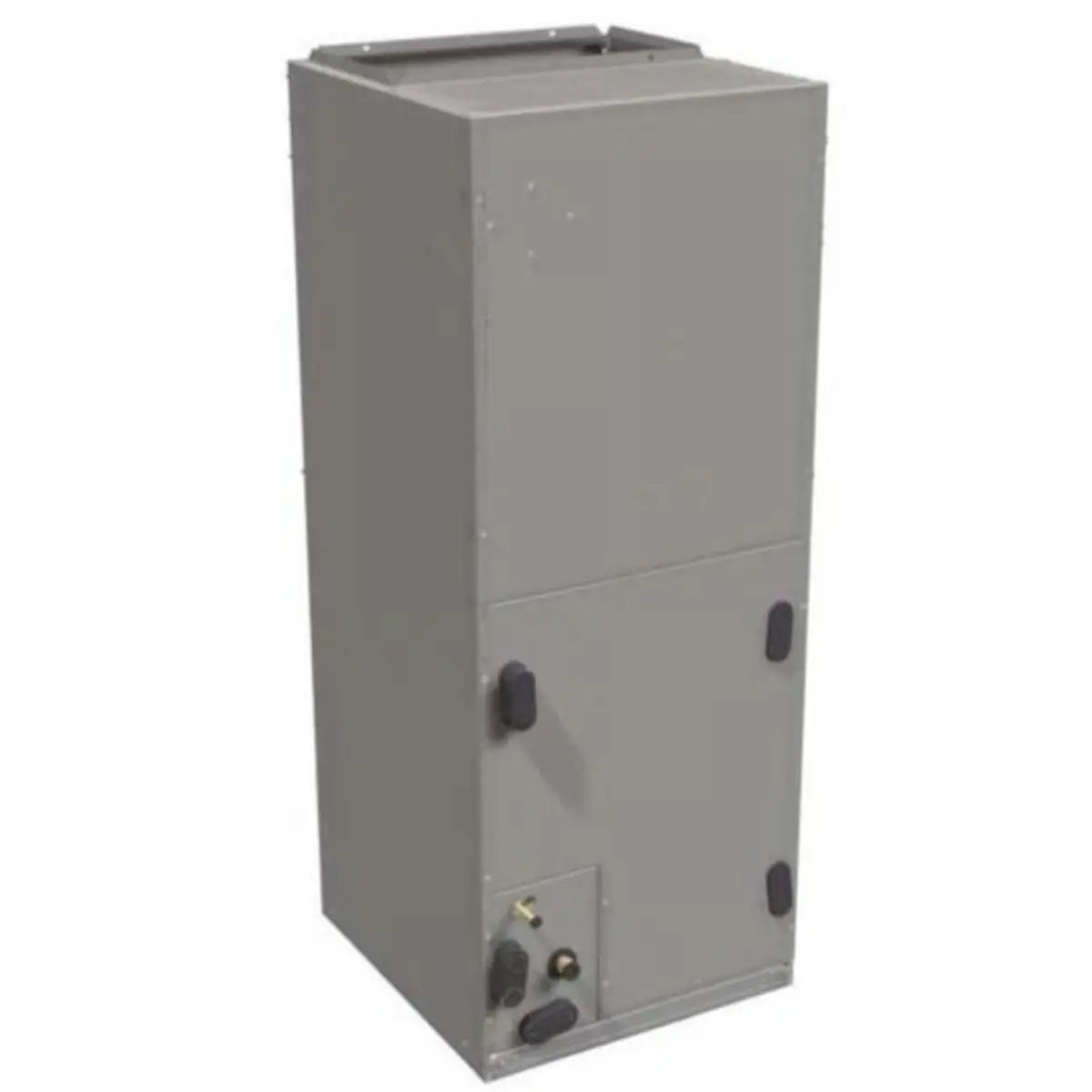

• Air handler: 14" multi-positional design with factory-installed TXV, 5-speed ECM blower, 525 maximum CFM
• Electrical: 208/230V 1 Phase 60 Hz; safety and performance certified (UL listed)

Product Highlights

Split condenser and multi-positional air handler system; R454B factory charge; 13.4 SEER2 efficiency; multi-speed ECM blower

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S18AKANA / FHMA5X18L0AA

Technical Specifications

• Brand: ACiQ
• Model (Condenser): R5A4S18AKANA
• Model (Air Handler): FHMA5X18L0AA
• Configuration: Split system (condenser + air handler)
• Tonnage: 1.5 Ton
• Cooling BTU: 18,000
• SEER2 (Condenser): 13.4
• EER2: 11.0-13.5
• Compressor Type (Condenser): Scroll, single stage
• Refrigerant: R454B
• Factory Refrigerant Charge / Pre-charged Line Set: Pre-charged for 15-foot line set
• Condenser Maximum CFM: 1600
• Air Handler Maximum CFM: 525
• Air Handler Blower Motor: Multi-tap 5-Speed ECM
• Air Handler Horsepower: 1/3 HP
• Condenser Horsepower: 1/12 HP
• Condenser Motor RPM: 1100
• Liquid Valve Size (Condenser): 3/8"
• Suction Valve Size (Condenser): 3/4"
• Liquid Line (Air Handler): 3/8"
• Suction Line (Air Handler): 5/8"
• Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 15 Amps
• Condenser Min Breaker Size: 10.8 Amps
• Air Handler Max Breaker Size: 15 Amps
• Air Handler Min Breaker Size: 3.6 Amps
• Connection Type: Sweat
• Condenser Noise Level: 72 dBA
• Filter Size (Air Handler): 13" x 20"
• Included Items: Condenser, Air handler, field-install filter drier
• Certifications: UL Listed
• Condenser Dimensions (H x W x D): 28 1/4" x 23 1/8" x 23 1/8"
• Air Handler Dimensions (H x W x D): 42 11/16" x 14 5/16" x 22 1/16"
• Condenser Weight (lbs): 129.00
• Air Handler Weight (lbs): 120.00
• Air Handler Electric Backup Heat (optional): 5 kW, 7 kW, 10 kW
• Filter Drier: Included (field-installed)
