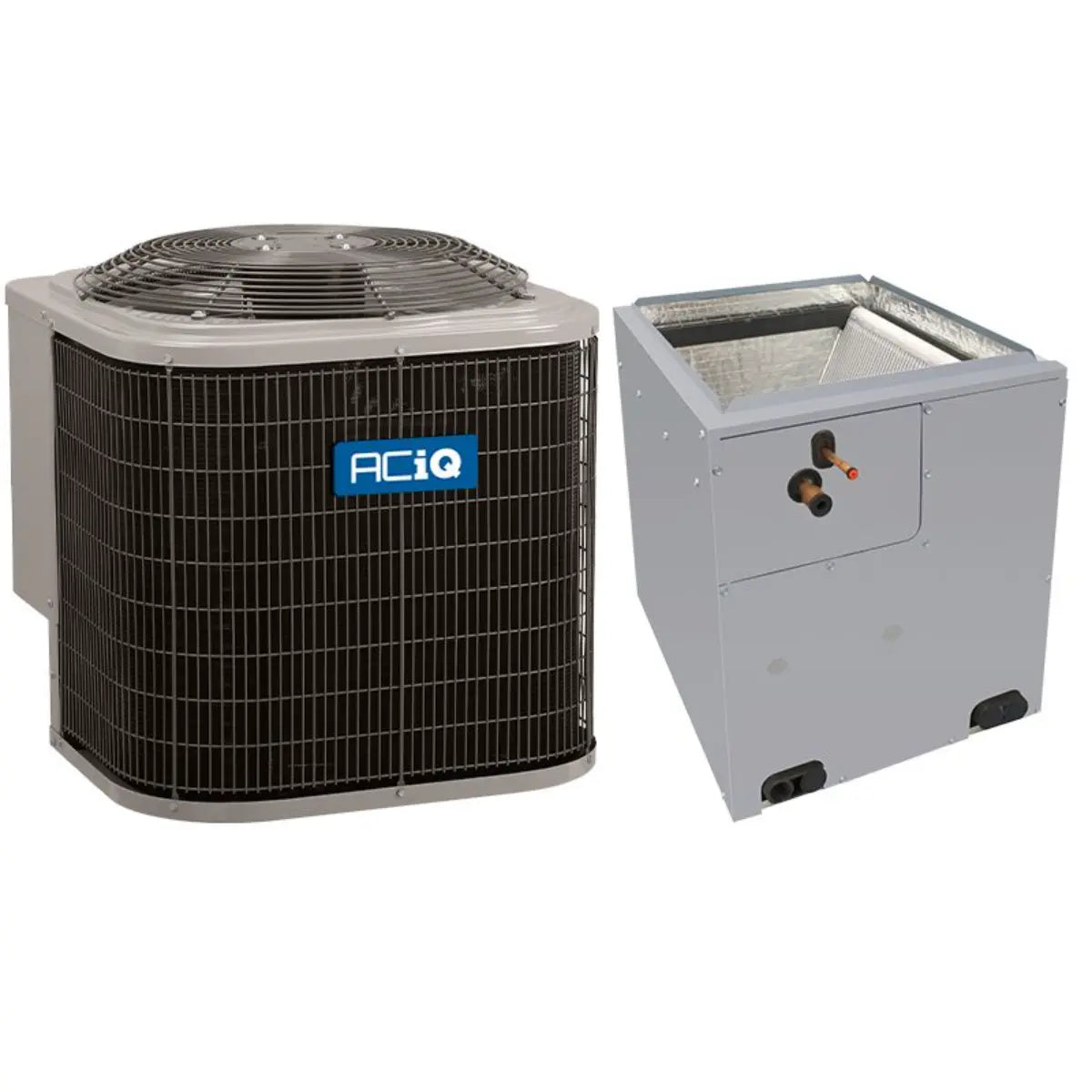

Aciq R5A4S18AKANA / EVD5X18M14A 1.5 Ton 13.4 SEER2 Air Conditioner with 14 inches Vertical Cased Coil (14 inches Width) Replaces R4A4S18AKANA

Product Description

Aciq R5A4S18AKANA / EVD5X18M14A is a 1.5 ton air conditioning package consisting of an R5A4S18AKANA single-stage condenser and an EVD5X18M14A 14-inch vertical cased evaporator coil. The condenser is factory pre-charged with R454B for a 15-foot line set, provides 18,000 BTU cooling at 13.4 SEER2, and operates on 208/230V single-phase power. The cased V-coil includes a factory-installed TXV, corrosion-resistant PBT drain pan, and supports upflow or downflow installations.

• Condenser: 1.5 ton, 18,000 BTU, 13.4 SEER2, single-stage scroll compressor, pre-charged for 15-foot line set with R454B
• Evaporator coil: 14-inch cased V-coil with factory-installed TXV, corrosion-resistant PBT drain pan, supports upflow/downflow
• Electrical and mechanical: 208/230V 1 Phase 60 Hz, sweat connections, max 1600 CFM, UL listed

Product Highlights

Factory pre-charged R454B condenser and fully insulated 14" cased V-coil with TXV; sweat connections; UL listed.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S18AKANA / EVD5X18M14A

Technical Specifications

• Brand: Aciq
• MPN: R5A4S18AKANA / EVD5X18M14A
• Tonnage: 1.5 Ton
• Cooling Capacity (BTU): 18000
• SEER2: 13.4
• EER2: 11.0-13.5
• Refrigerant: R454B
• Refrigerant Charge: Factory pre-charged for 15-foot line set
• Compressor Type: Scroll
• Condenser Stages: Single Stage
• Maximum CFM: 1600
• Sound Level: 72 dBA
• Motor RPM: 1100
• Horsepower: 1/12 HP
• Input Voltage: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 15 Amps
• Min Breaker Size: 10.8 Amps
• Connection: Sweat
• Liquid Valve Size (Condenser): 3/8"
• Suction Valve Size (Condenser): 3/4"
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 5/8"
• Coil Style: V-Coil
• Coil Configuration: Upflow / Downflow
• Coil Width: 14 3/16"
• Coil Height: 14 11/16"
• Coil Depth: 20 5/8"
• Condenser Width: 23 1/8"
• Condenser Height: 28 1/4"
• Condenser Depth: 23 1/8"
• Condenser Weight: 129 lb
• Coil Weight: 30 lb
• Drain Pan Material: Corrosion-resistant PBT
• TXV: Factory-installed TXV kit (coil)
• Filter Drier: Field-installed filter drier included
• Certification: UL Listed
• Replaces: Condenser replaces R4A4S18AKANA; Coil replaces END4X18L14A, EVD4X18M14A
