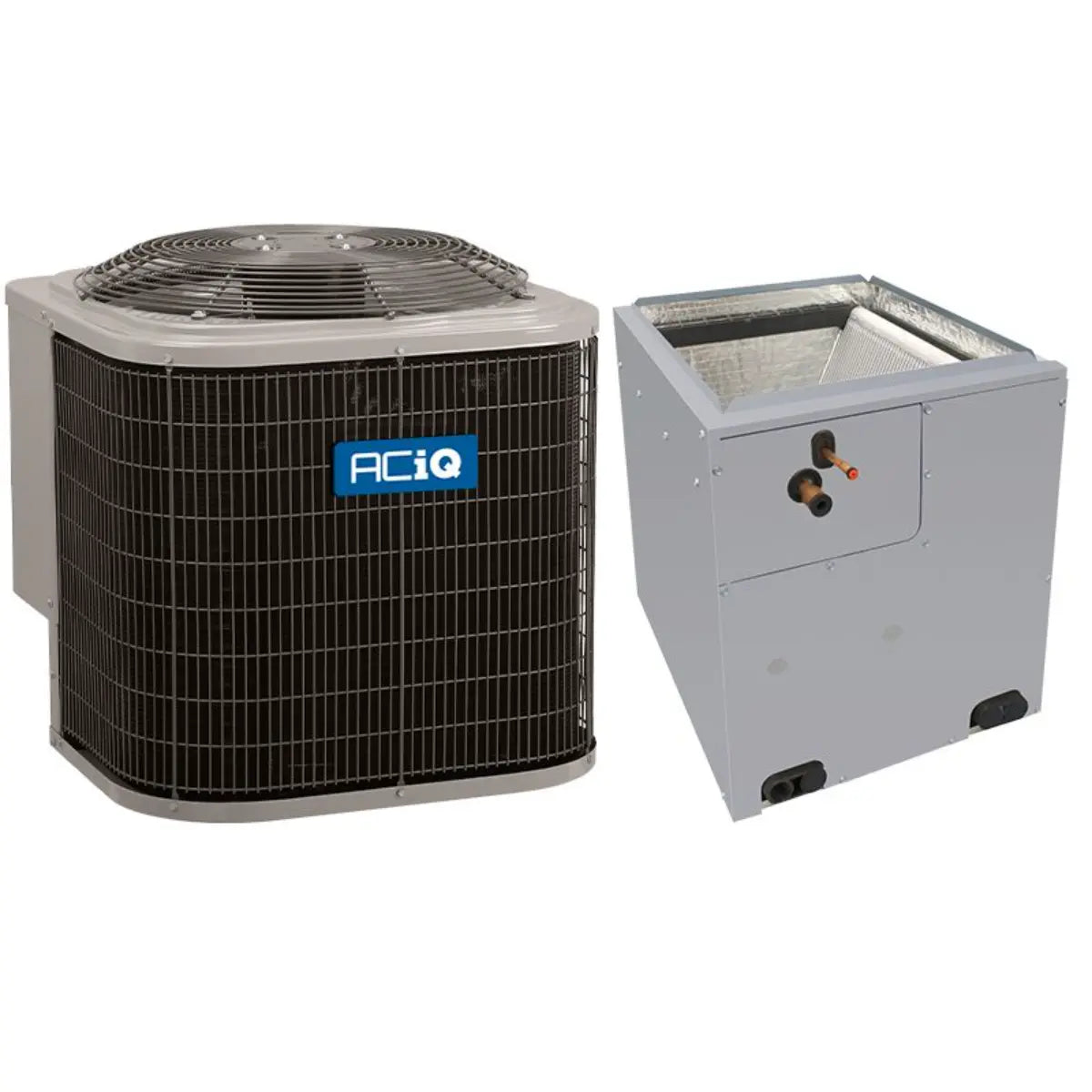

Aciq R5A4S18AKANA / EAM5X24M17A 1.5 ton 13.4 SEER2 air conditioner with 17.5 inches multi-positional cased coil (package) replaces R4A4S18AKANA / EAM4X24L17A

Product Description

Aciq R5A4S18AKANA / EAM5X24M17A is a packaged residential cooling system combining a 1.5 ton, 13.4 SEER2 single-stage condenser pre-charged with R454B and a 17.5-inch multi-positional evaporator cased coil with factory-installed TXV. The condenser uses a scroll compressor, is pre-charged for a 15-foot line set, and operates on 208/230V 1 phase 60 Hz; the coil provides sweat connections and multi-positional installation options for upflow, downflow, or horizontal configurations.

• Condenser: 1.5 ton (18,000 BTU), scroll compressor, single-stage, pre-charged with R454B for 15-foot line set; filter drier included (field-installed).
• Evaporator coil: 17.5 in multi-positional A-coil with factory-installed TXV, sweat connections, compatible upflow/downflow/horizontal orientations.
• Performance and electrical: SEER2 13.4, EER2 11.0-13.5, maximum CFM 1600, sound level 72 dBA, electrical 208/230V 1 phase 60 Hz; max breaker 15 A, min breaker 10.8 A.

Product Highlights

Packaged A/C with R454B pre-charge, scroll compressor condenser, 17.5 in multi-positional coil with factory TXV, UL listing.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S18AKANA / EAM5X24M17A

Technical Specifications

• Brand: Aciq
• Package MPN: R5A4S18AKANA / EAM5X24M17A
• Condenser MPN: R5A4S18AKANA
• Coil MPN: EAM5X24M17A
• Cooling Capacity (BTU): 18,000
• Condenser Tonnage: 1.5 Ton
• SEER2 (Efficiency): 13.4
• EER2: 11.0-13.5
• Refrigerant: R454B
• Pre-charged Line Set Length: 15 ft (pre-charged)
• Compressor Type: Scroll
• Condenser Stages: Single Stage
• Filter Drier: Included (field-installed)
• Factory-Installed TXV: Yes (coil)
• Input Voltage: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 15 Amps
• Min Breaker Size: 10.8 Amps
• Maximum CFM: 1600
• Decibel Level: 72 dBA
• Motor RPM: 1100
• Horsepower: 1/12 HP
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Coil Liquid Line: 3/8"
• Coil Suction Line: 5/8"
• Connection Type: Sweat
• Coil Configuration / Mounting: Multi-positional (upflow/downflow/horizontal)
• Condenser Dimensions (H x W x D): 28 1/4" x 23 1/8" x 23 1/8"
• Coil Dimensions (H x W x D): 25 13/16" x 17 1/2" x 20 5/8"
• Condenser Weight: 129.00 lbs
• Coil Weight: 58.60 lbs
• Combined Weight: 187.60 lbs
• Certification: UL Listed
• Condenser Replaces: R4A4S18AKANA
• Coil Replaces: EAM4X24L17A
• Equivalents (Condenser): Carrier 24ABB318ABN3; Tempstar R4A318GKH; Bryant 113ANA018000
• Equivalents (Coil): Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
