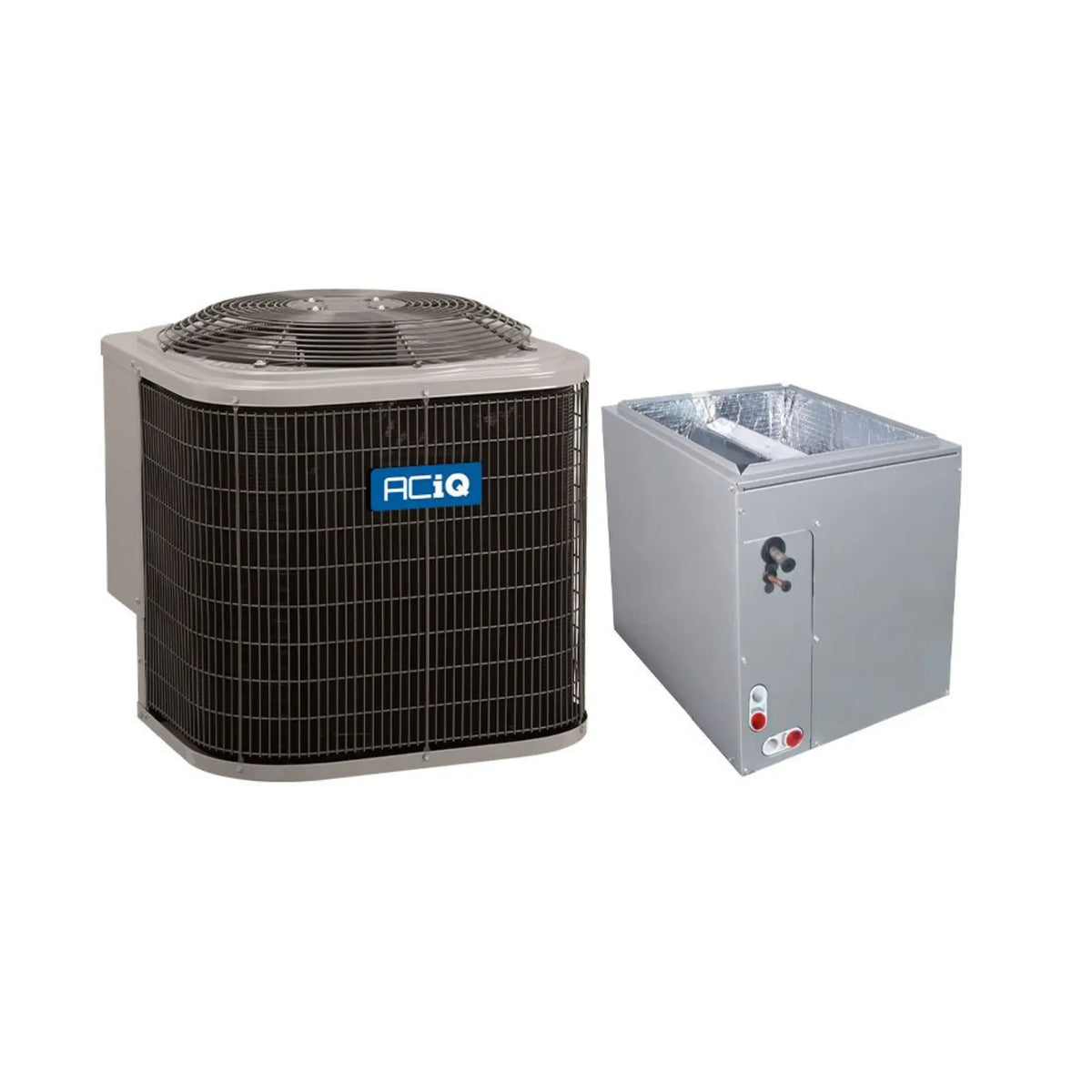

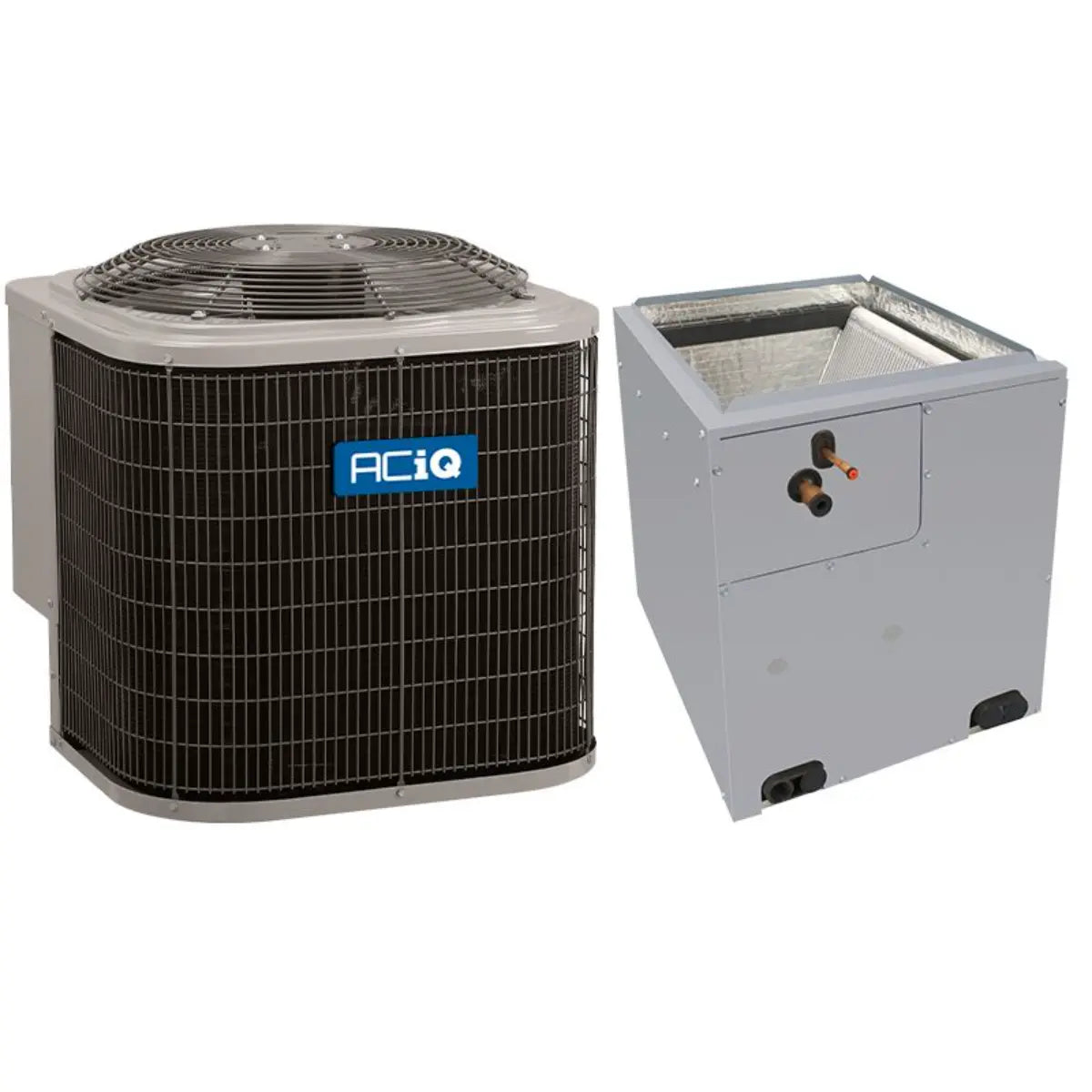

Aciq R5A4S18AKANA / EAM5X24M14A 1.5 Ton 13.4 SEER2 Air Conditioner with 14 in Multi-Positional Cased Coil Replaces R4A4S18AKANA / EAM4X24L14A

Product Description

Aciq R5A4S18AKANA / EAM5X24M14A is a packaged cooling system that pairs a 1.5 ton, 13.4 SEER2 outdoor condenser with a 14 in multi-positional A-coil evaporator. The condenser is factory pre-charged with R454B for a 15 ft line set, uses a single-stage scroll compressor, and operates on 208/230V 1 phase 60 Hz. The coil includes a factory-installed TXV and supports upflow, downflow, and horizontal installation.

• Condenser pre-charged for a 15 ft line set with R454B; single-stage scroll compressor
• 14 in multi-positional evaporator coil with factory-installed TXV and sweat connections
• Electrical 208/230V 1 Phase 60 Hz; max breaker 15 Amps, min breaker 10.8 Amps; UL listed

Product Highlights

Packaged 1.5 ton condenser and 14 in multi-positional cased coil for AC systems

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S18AKANA / EAM5X24M14A

Technical Specifications

• Brand: Aciq
• Model / MPN: R5A4S18AKANA / EAM5X24M14A
• Condenser MPN: R5A4S18AKANA
• Coil MPN: EAM5X24M14A
• Condenser Tonnage: 1.5 Ton
• Cooling BTU: 18000
• SEER2: 13.4
• EER2: 11.0-13.5
• Refrigerant: R454B
• Compressor Type: Scroll
• Compressor Stages: Single Stage
• Pre-charged Line Set Length: 15 feet
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 15 Amps
• Min Breaker Size: 10.8 Amps
• Liquid Valve Size: 3/8 in
• Suction Valve Size: 3/4 in
• Coil Liquid Line: 3/8 in
• Coil Suction Line: 5/8 in
• Connection Type: Sweat
• Coil Configuration: Multi-positional (upflow, downflow, horizontal)
• Coil Style: A-Coil
• Coil Width: 14 3/16 in
• Coil Height: 25 13/16 in
• Coil Depth: 20 5/8 in
• Condenser Height: 28 1/4 in
• Condenser Width: 23 1/8 in
• Condenser Depth: 23 1/8 in
• Condenser Weight: 129 lbs
• Coil Weight: 54.5 lbs
• Maximum CFM: 1600
• Decibel Level: 72 dBA
• Motor RPM: 1100
• Horsepower: 1/12 HP
• Factory-installed TXV: Yes
• Filter Drier: Field-installed filter drier included
• Certifications: UL Listed
• Replaces (Condenser): R4A4S18AKANA
• Replaces (Coil): EAM4X24L14A
• Condenser Equivalents: Carrier 24ABB318ABN3; Tempstar R4A318GKH; Bryant 113ANA018000
• Coil Equivalents: Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
