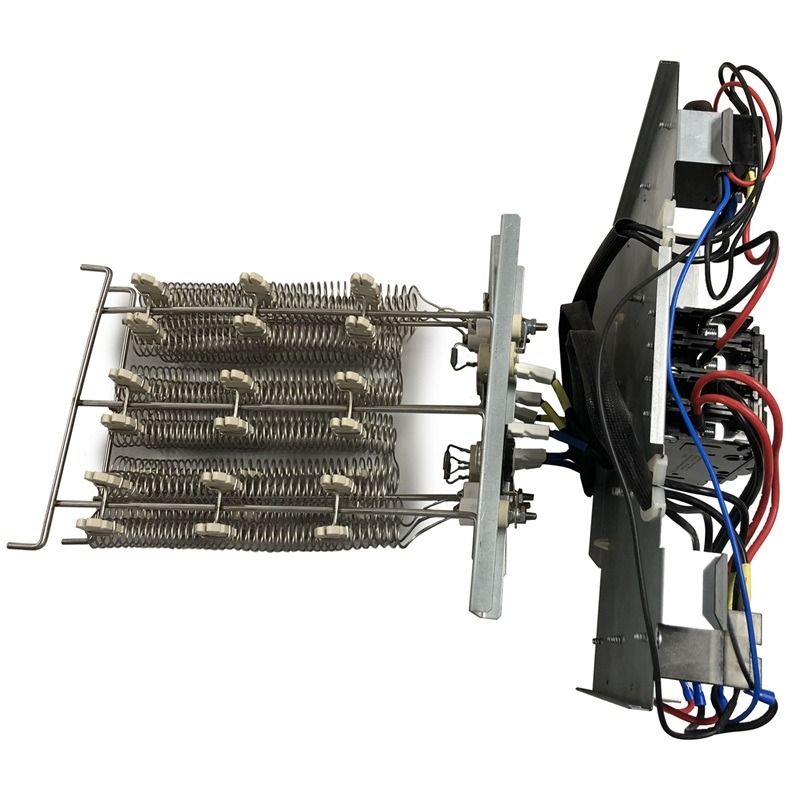

Aciq PEAH-20C(UL) 20 kW Heater Coil (22 x 10.59 x 8.07 in)

Product Description

The ACiQ PEAH-20C(UL) is a 20 kW heater coil that provides straight electric heating for compatible ACiQ unitary air handlers. It operates at 208/230 V, single-phase, 60 Hz and is listed with a heating capacity of 68,200 BTU. Unit dimensions are 22 x 10.59 x 8.07 inches and weight is 16.31 lb. It is intended for supplemental residential heating.

• 20 kW electric heater coil with 68,200 BTU heating capacity
• Electrical: 208/230 V, single phase, 60 Hz
• Compatible with ACiQ-36-PAH, ACiQ-48-PAH, and ACiQ-60-PAH air handlers; dimensions 22 x 10.59 x 8.07 in; weight 16.31 lb

Product Highlights

20 kW electric heater coil for ACiQ unitary air handlers; 208/230 V single-phase operation; 22 x 10.59 x 8.07 in compact dimensions

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: PEAH-20C(UL)

Technical Specifications

• Brand: ACiQ
• MPN: PEAH-20C(UL)
• SKU: PEAH-20C(UL)
• UPC: 810175550916
• Power: 20 kW
• Heating BTU: 68,200 BTU/hr
• Input Voltage: 208/230 V
• Phase: Single phase
• Frequency: 60 Hz
• Recommended Breaker: Double-pole 90–100 A (see notes: nominal current ≈96 A at 208 V, ≈87 A at 230 V; final breaker/fuse sizing must follow local code and manufacturer installation instructions)
• Dimensions: 22.00 in L x 10.59 in W x 8.07 in H
• Weight: 16.31 lbs
• Compatible Air Handlers: ACiQ-36-PAH; ACiQ-48-PAH; ACiQ-60-PAH
• Condition: New
• Safety Information: Proposition 65 warning (may contain chemical(s) known to the State of California to cause cancer or reproductive harm)
