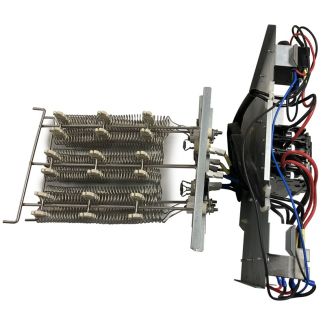

Aciq PEAH-15C(UL) Electric Heater Coil 15kw 51150 Btu

Product Description

The ACIQ PEAH-15C(UL) is a 15kW electric heater coil designed for installation inside ACiQ unitary air handlers, adding straight electric heating capability to ducted heat pump systems. Rated at 51,150 BTU/h with a supported output of 16,200 BTU/h, the coil provides supplemental or primary electric heat in residential ducted applications. Installation requires a dedicated 30-amp breaker. Licensed HVAC technicians perform this work as part of an air handler commissioning or retrofit. The UL listing indicates the unit has been evaluated to recognized safety standards.

This heater coil is intended for use in ACiQ unitary ducted heat pump systems where electric resistance heat is needed to supplement or replace a refrigerant-based heating stage. Typical applications include residential new construction and retrofit installs in mild to moderate climates where a 15kW coil provides sufficient capacity for smaller conditioned spaces. The coil slots into compatible ACiQ air handler models and integrates with existing ductwork and controls without requiring additional heat source equipment.

Key Features

• 15kW electric resistance heating output rated at 51,150 BTU/h
• UL listed for recognized safety compliance
• Designed for direct installation into ACiQ unitary air handler cabinets
• Adds straight electric heating to ducted heat pump systems
• Requires a single dedicated 30-amp breaker

Compatibility

Compatible with the following ACiQ air handler models: ACiQ-18-PAH, ACiQ-24-PAH, ACiQ-30-PAH, ACiQ-36-PAH, ACiQ-48-PAH, and ACiQ-60-PAH.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with NEC requirements and local electrical codes. Disconnect and lock out all power to the air handler before handling or inserting the heater coil. A dedicated 30-amp breaker is required and must be properly sized and protected at the panel. Verify that the air handler model is listed as compatible before installation to avoid equipment damage.

Technical Specifications

• Heating Capacity: 51,150 BTU/h
• Supported Output: 16,200 BTU/h
• Power: 15kW
• Required Breaker: 30 amps
• Certification: UL Listed

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: PEAH-15C(UL)
