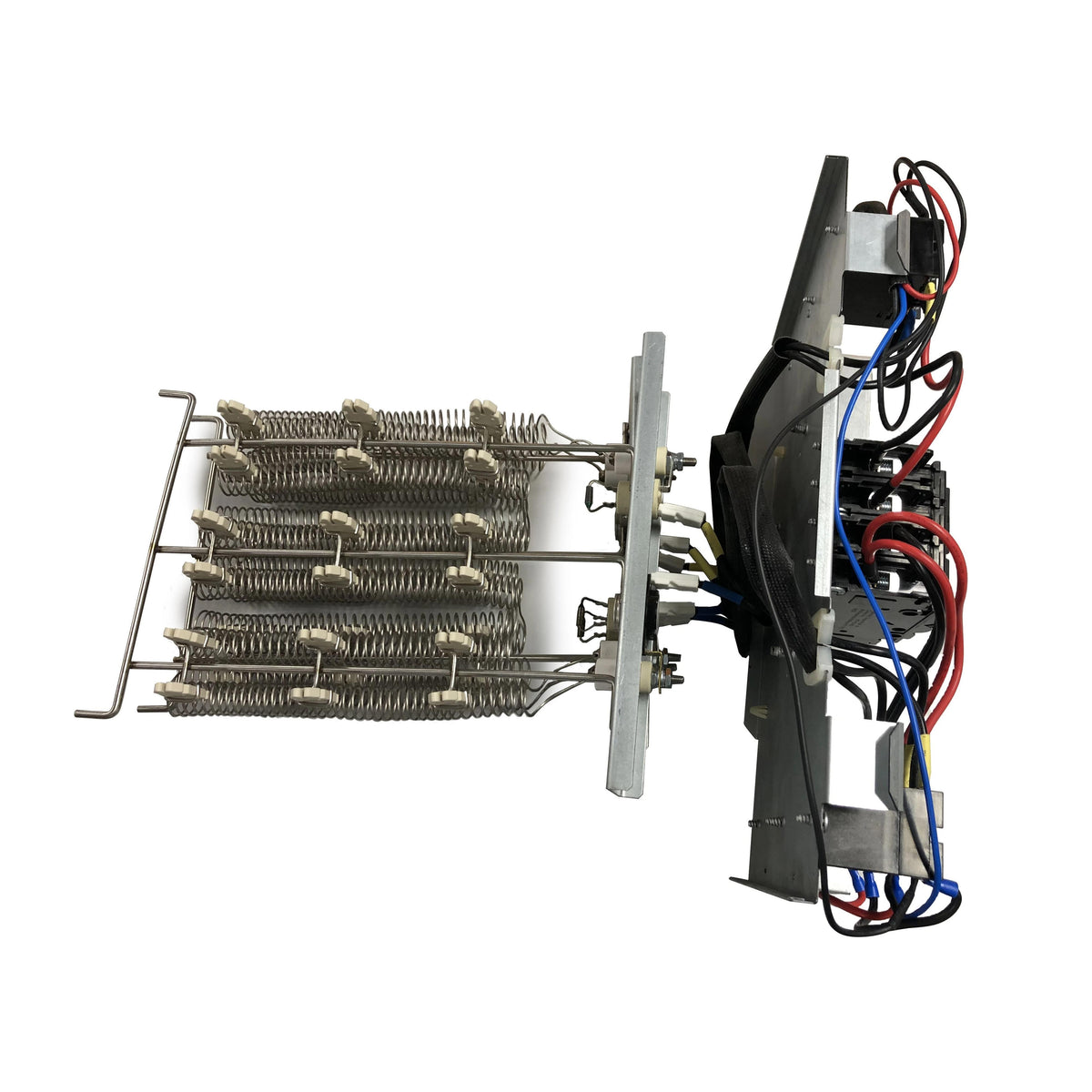

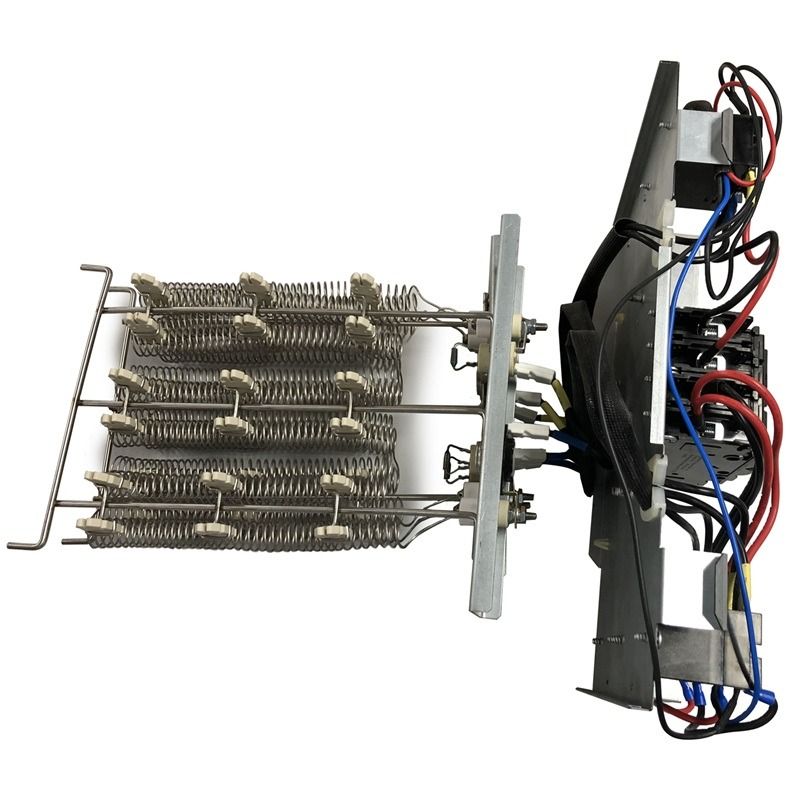

Aciq PEAH-10C(UL) 10 Kilowatt 34,100 BTU Heater Coil (PAH Series Compatible)

Product Description

The Aciq PEAH-10C(UL) is a 10 kW electric heater coil for ACiQ unitary air handlers that provides a rated 34,100 BTU heating capacity and lists a supported output of 16,200 BTU. The unit operates at 208/230V, single phase, 60 Hz and is compatible with ACiQ PAH series air handlers.

• 10 kilowatt electric heater coil with 34,100 BTU nominal heating capacity
• Electrical: 208/230 V input, single phase, 60 Hz
• Compatible with ACiQ-12-PAH through ACiQ-60-PAH unitary air handlers; dimensions 8.07 in H x 22.00 in W x 10.59 in D
• Recommended circuit sizing: continuous current ~43.5 A (230 V) / ~48.1 A (208 V); see installer for proper breaker and wire sizing

Product Highlights

10 kW electric heat kit for ACiQ PAH series, 208/230V single phase, 34,100 BTU nominal output

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: PEAH-10C(UL)

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: PEAH-10C(UL)
• Power: 10 Kilowatts
• Heating Capacity: 34,100 BTU (nominal)
• Supported Output: 16,200 BTU (as listed — appears inconsistent with nominal rating; retained but flagged in notes)
• Input Voltage: 208/230 V
• Phase: Single Phase
• Frequency: 60 Hz
• Compatible Air Handlers: ACiQ-12-PAH, ACiQ-18-PAH, ACiQ-24-PAH, ACiQ-30-PAH, ACiQ-36-PAH, ACiQ-48-PAH, ACiQ-60-PAH
• Dimensions (H x W x D): 8.07 in x 22.00 in x 10.59 in
• Recommended Circuit Sizing / Notes: Estimated continuous current ~43.5 A at 230 V and ~48.1 A at 208 V. Per NEC continuous-load rules, circuit/circuit-breaker sizing would typically be 125% of continuous current → ~55 A breaker for 230 V, ~60 A breaker for 208 V (confirm with local code and installer).
