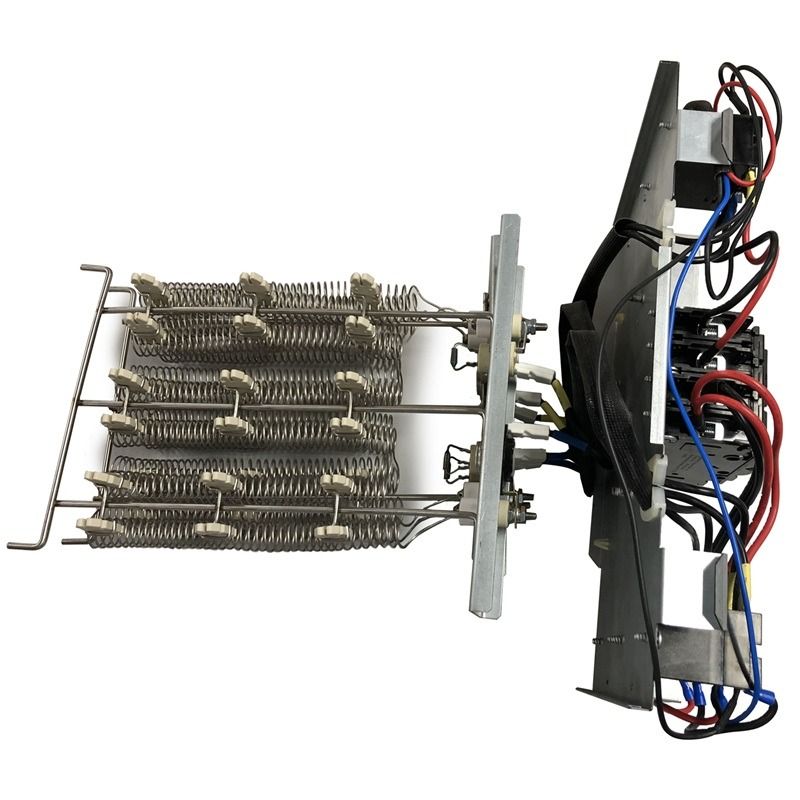

Aciq PEAH-08C(UL) 8 kilowatt 26,000 BTU heater coil (8.07 x 22.00 x 10.59 in)

Product Description

The ACiQ PEAH-08C(UL) is an 8 kW electric heater coil for ACiQ unitary air handlers, providing a listed heating capacity of 26,000 BTU and an indicated supported output of 16,200 BTU. It operates at 208/230 V, single-phase, 60 Hz. Unit dimensions are 8.07 x 22.00 x 10.59 inches (H x W x D) and weight is 13.45 lbs. Compatible with multiple ACiQ PAH air handlers.

• 8 kW electric heating coil with listed 26,000 BTU capacity
• Electrical: 208/230 V, single phase, 60 Hz; nominal load current ≈34.8 A at 230 V
• Compatible with ACiQ-18-PAH, ACiQ-24-PAH, ACiQ-30-PAH and ACiQ-36-PAH; dimensions 8.07 x 22.00 x 10.59 in

Product Highlights

8 kW electric heater coil for ACiQ ducted heat pump systems; 208/230 V single-phase operation; listed 26,000 BTU heating capacity.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: PEAH-08C(UL)

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: PEAH-08C(UL)
• Power Output: 8 kW
• Listed Heating Capacity: 26,000 BTU
• Supported Heating Output: 16,200 BTU (see notes — value appears low compared with 8 kW rating)
• Input Voltage: 208/230 V
• Phase: Single Phase
• Frequency: 60 Hz
• Breaker Requirement: Recommended 45 A circuit breaker (continuous load). Nominal load current ~34.8 A at 230 V; per code sizing for continuous heating loads, use breaker sized ≥ 125% of load (≈43.5 A) — 45 A standard
• Dimensions (H x W x D): 8.07 in x 22.00 in x 10.59 in
• Weight: 13.45 lbs
• Compatible Models: ACiQ-18-PAH; ACiQ-24-PAH; ACiQ-30-PAH; ACiQ-36-PAH
• Safety Information: Proposition 65 warning: product may contain a chemical known to the state of California to cause cancer or birth defects or other reproductive harm
