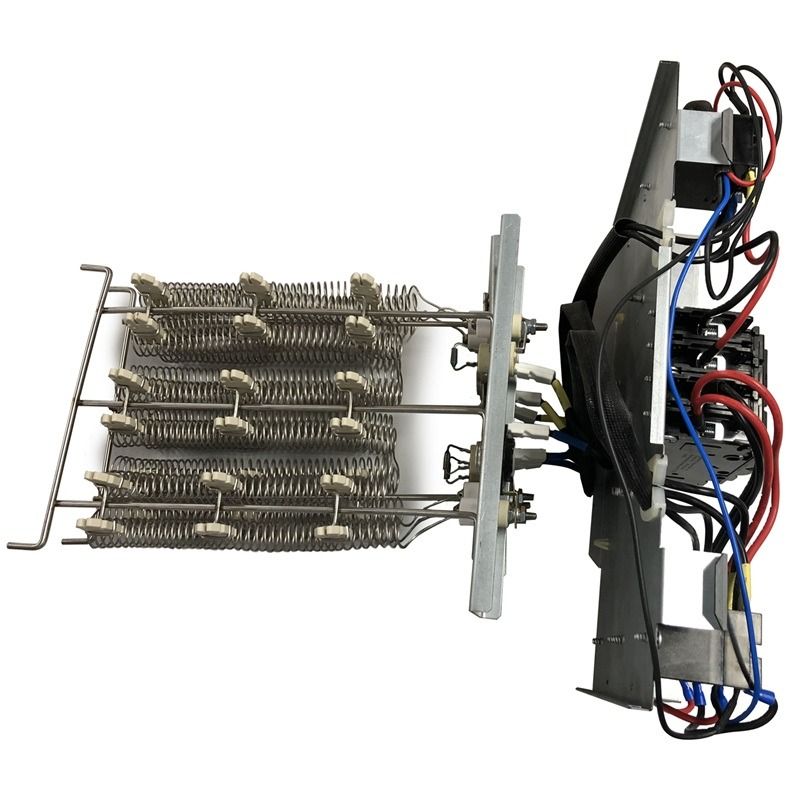

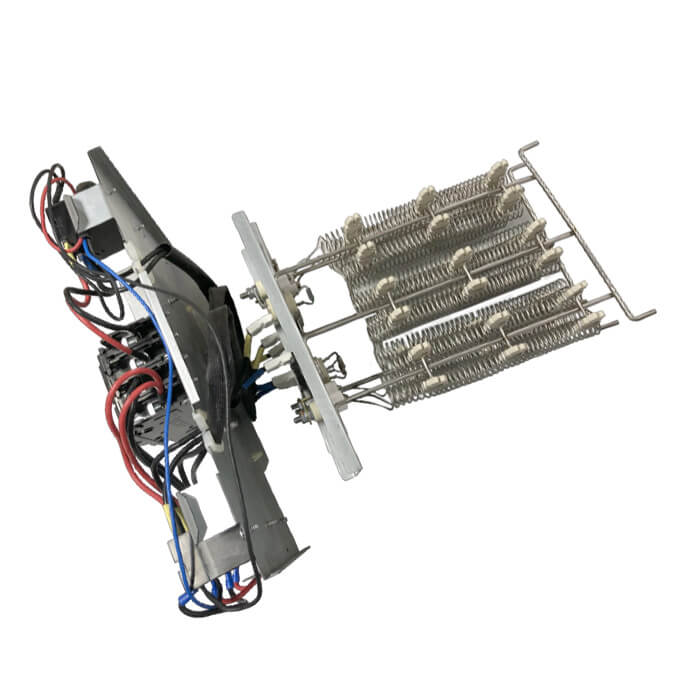

Aciq PEAH-05C(UL) Electric Heater Coil 5 kW (16,200 BTU)

Product Description

The ACiQ PEAH-05C(UL) is a UL-listed electric heater coil that provides 16,200 BTU (5 kW) of supplemental heat for ACiQ unitary air handlers. It operates on single-phase 208/230/240V electrical supply and is designed for straightforward installation into compatible ACiQ ducted systems. The coil is intended to deliver supplemental or backup heating in colder conditions and can reduce heating energy compared with strip heat-only models.

• Provides 16,200 BTU (5 kW) of supplemental electric heating; UL-listed
• Operates on single-phase 208/230/240V (60 Hz) electrical supply
• Designed for compatibility with ACiQ unitary air handlers and straightforward installation

Product Highlights

UL-listed 5 kW heater coil, 16,200 BTU, single-phase 208/230/240V; compatible with multiple ACiQ unitary air handlers

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: PEAH-05C(UL)

Technical Specifications

• Model: PEAH-05C(UL)
• Manufacturer: ACiQ
• Product Type: Electric Heater Coil (UL-listed)
• Heating Capacity: 16,200 BTU
• Electric Heat: 5 kW
• Input Voltage: 208/230/240 V
• Frequency: 60 Hz
• Phase: Single Phase
• Compatible Units: ACiQ-18-AHD, ACiQ-24-AHD, ACiQ-30-AHD, ACiQ-36-AHD
• Recommended Breaker: One 30 amp breaker
• Certifications: UL-listed
• SKU: PEAH-05C(UL)
