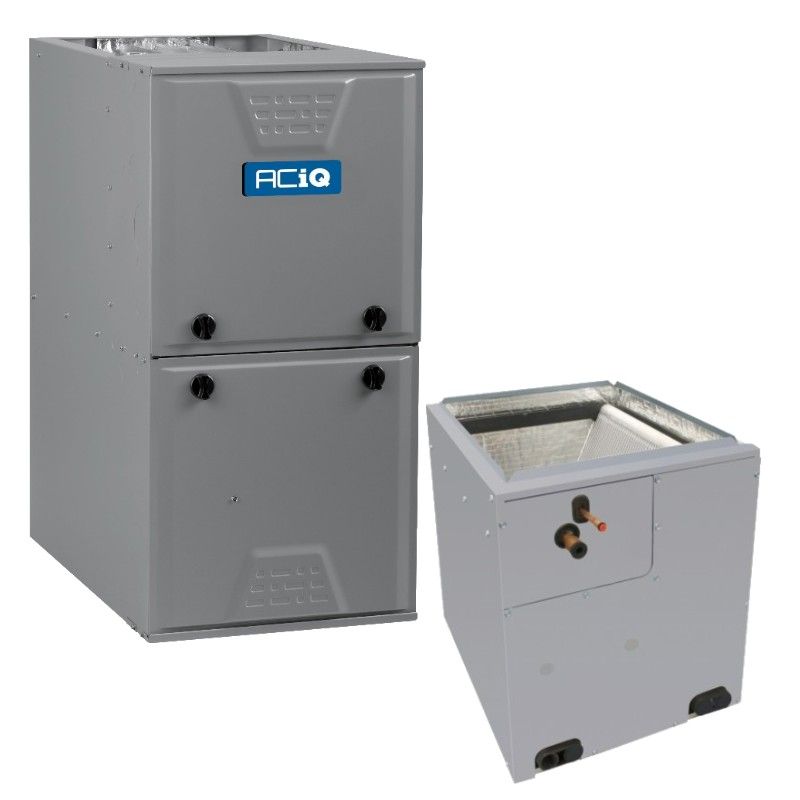

Aciq N96MSN0801716A Furnace and Coil System 80,000 BTU (2.5 Ton) EVD5X31M17A

Product Description

The Aciq N96MSN0801716A is a matched furnace and coil system that includes a 96% AFUE, 80,000 BTU single-stage natural gas furnace and an EVD5X31M17A 2.5 ton cased evaporator coil. The furnace is multi-positional (upflow, downflow, horizontal) with an ECM blower delivering up to 1665 CFM and on-board diagnostics; it is field-convertible to propane with an optional kit. The coil has a factory-installed TXV, sweat connections, a corrosion-resistant PBT drain pan, and is rated for R454B refrigerant.

• 96% AFUE single-stage natural gas furnace with 80,000 BTU heating capacity
• Multi-positional furnace (upflow, downflow, horizontal) with ECM blower (max 1665 CFM) and field-convertible to propane
• 2.5 ton cased V-coil with factory-installed TXV, sweat connections, corrosion-resistant PBT drain pan, rated for R454B

Product Highlights

Matched 80,000 BTU furnace and 2.5 ton evaporator coil; 96% AFUE; ECM blower up to 1665 CFM; factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N96MSN0801716A / EVD5X31M17A

Technical Specifications

• Brand: Aciq
• Model / MPN: N96MSN0801716A / EVD5X31M17A
• Furnace MPN: N96MSN0801716A
• Coil MPN: EVD5X31M17A
• System Type: Matched furnace and evaporator coil system
• Furnace AFUE: 96%
• Furnace Heating BTU: 80,000 BTU
• Furnace Blower Motor: ECM
• Maximum CFM: 1665
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Burner Stages: Single stage
• Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• Energy Star: Yes
• Furnace Dimensions (H x W x D): 35" x 17.5" x 29.5"
• Furnace Weight (lbs): 146.00
• AHRI Certificate Number: 213148760
• Coil Tonnage: 2.5 Ton
• Coil Style: V-Coil (cased, vertical)
• Coil Refrigerant: R454B
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Connection: Sweat
• Coil Certification: UL Listed
• Coil Dimensions (H x W x D): 25 13/16" x 17 1/2" x 20 5/8"
• Coil Weight (lbs): 46.00
• Required Venting: Plastic / PVC flue venting required for 90%+ efficiency furnaces
• Notes on Use: Coil cannot operate independently; requires compatible condenser and blower or furnace
• System SKU: N96MSN0801716A + EVD5X31M17A
