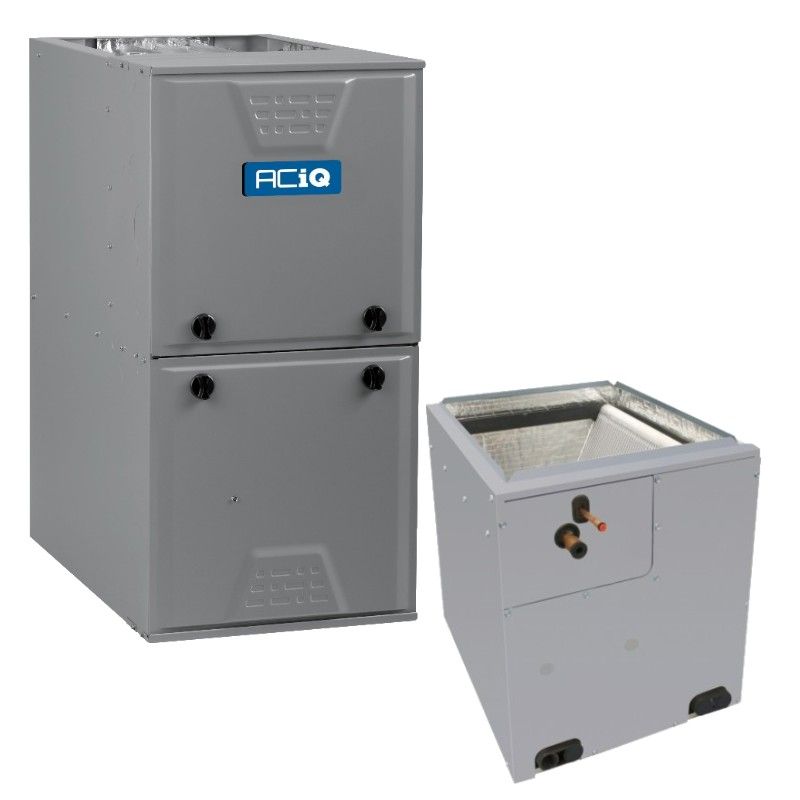

Aciq N96MSN0601716A EVD5X31M17A 2.5 Ton Furnace and Coil System 60,000 BTU (Upflow/Downflow) 59SC5B060E17--14

Product Description

The Aciq N96MSN0601716A / EVD5X31M17A is a matched furnace and evaporator coil system comprising a 60,000 BTU, 96% AFUE single-stage natural gas furnace and a 2.5 ton vertical cased V-coil with factory-installed TXV. The furnace features an ECM blower, multi-positional installation (upflow, downflow, horizontal) and field-convertible fuel option; the coil uses R454B refrigerant with sweat connections and a corrosion-resistant PBT drain pan.

• Furnace: 60,000 BTU input, 96% AFUE, single-stage burner, ECM blower, multi-positional (upflow/downflow/horizontal)
• Coil: 2.5 ton vertical cased V-coil, factory-installed TXV, R454B refrigerant, 3/8" liquid and 3/4" suction sweat connections, PBT drain pan
• Certifications and support: Energy Star furnace, AHRI certificate 213148506

Product Highlights

Matched 2.5 ton furnace and cased coil for upflow/downflow installations with ECM blower and factory TXV

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N96MSN0601716A / EVD5X31M17A

Technical Specifications

• Brand: ACiQ
• MPN: N96MSN0601716A / EVD5X31M17A
• System type: Furnace and evaporator coil matched system
• Furnace MPN: N96MSN0601716A
• Coil MPN: EVD5X31M17A
• Furnace AFUE: 96%
• Furnace heating BTU (input): 60,000 BTU
• Furnace output BTU (approx.): 57,600 BTU (approx.)
• Burner stages: Single
• Fuel type: Natural Gas (field-convertible to Propane with optional LP kit)
• Blower motor: ECM
• Maximum CFM: 1330
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Energy Star: Yes (furnace)
• Furnace dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Furnace weight: 138.00 lbs
• Coil tonnage: 2.5 Ton
• Coil style: Vertical cased V-coil
• Coil refrigerant: R454B
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil connection type: Sweat
• Coil width: 17.5 inches
• Coil height: 25 13/16 inches
• Coil depth: 20 5/8 inches
• Coil weight: 46.00 lbs
• Coil drain pan: PBT corrosion-resistant
• Factory-installed components: TXV kit on coil
• Certifications: UL Listed (coil); Energy Star (furnace)
• AHRI certificate number: 213148506
• Replacement / Equivalent models: Carrier 59SC5B060E17--14; Carrier coil CVPVA1814XMC; Tempstar TN95ESN0601714A (furnace) / END4X18L14A (coil); Bryant 915SB42060E17 (furnace) / CNPVP1814ALA (coil)
• Notes: Furnace requires plastic/PVC flue venting for 90%+ efficiency; coil must be paired with compatible condenser and blower/furnace
