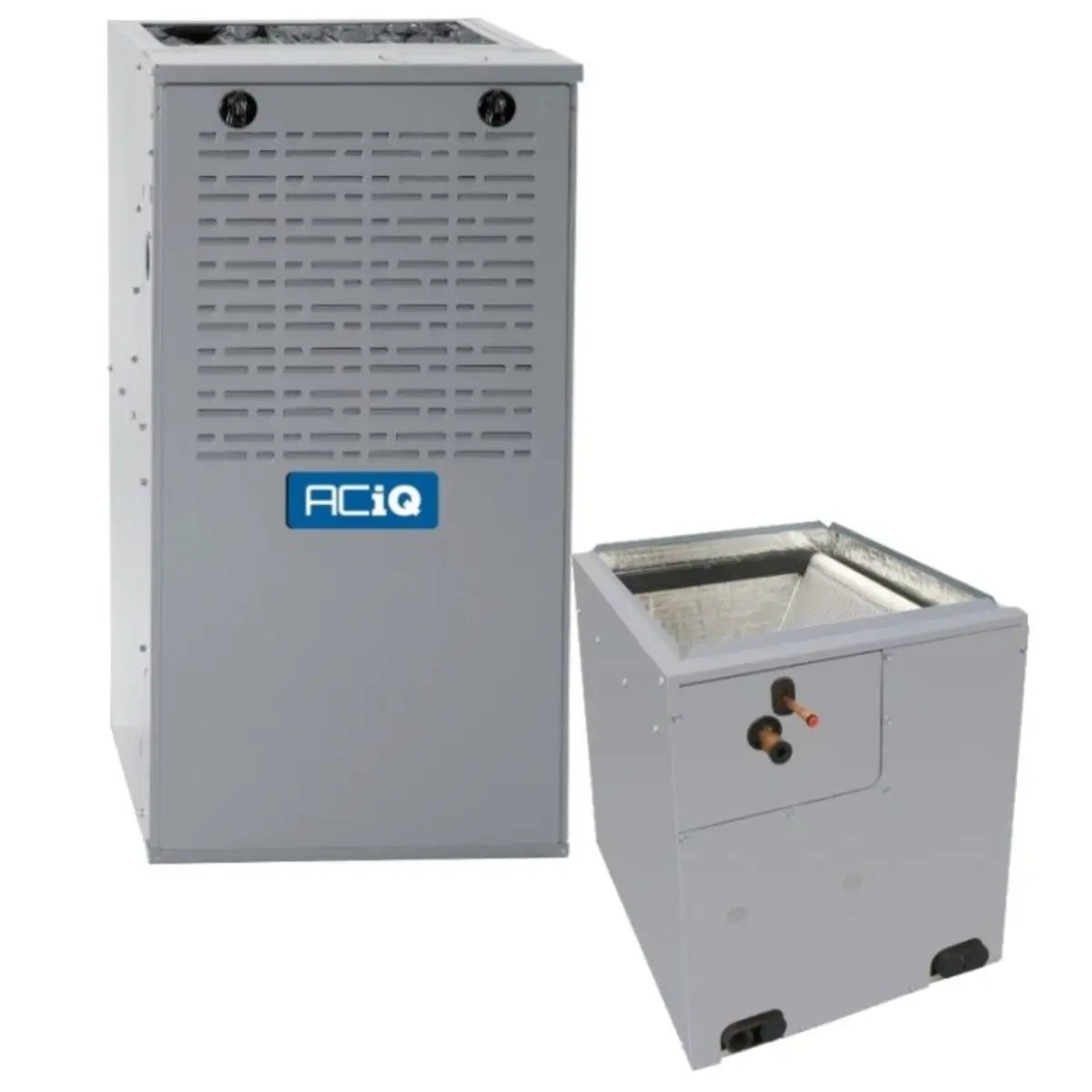

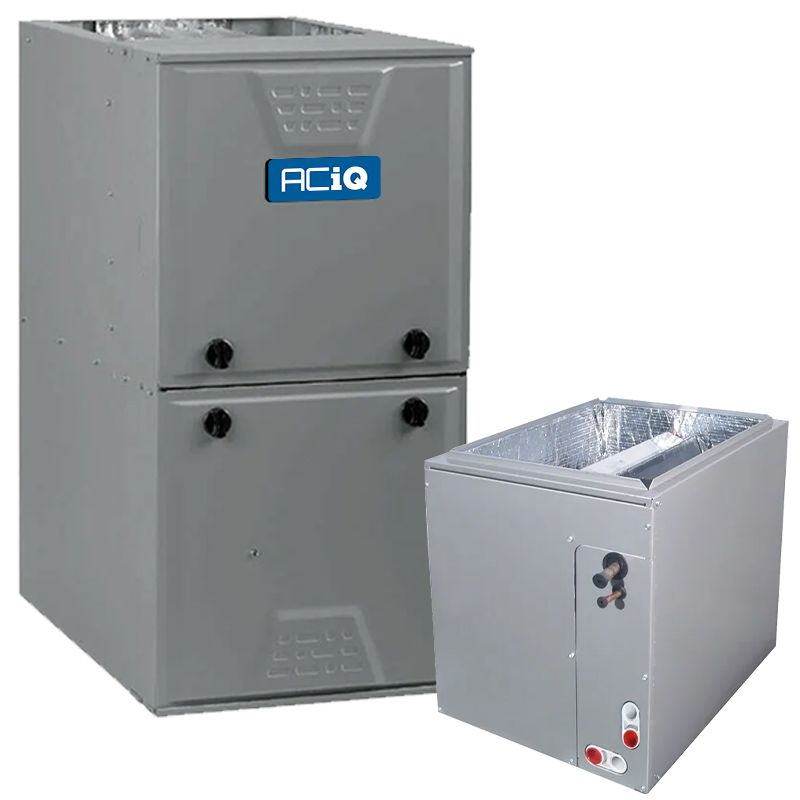

Aciq N96MSN0601716A 96% AFUE 60,000 BTU Furnace and Coil System 1.5 Ton (EAM5X19M17A)

Product Description

The ACIQ N96MSN0601716A is a matched furnace and evaporator coil system that pairs a 60,000 BTU, 96% AFUE single-stage natural gas furnace with the EAM5X19M17A 1.5 ton multi-positional cased evaporator coil. The furnace supports upflow, downflow, or horizontal installation, uses an ECM blower with up to 1330 CFM and on-board self-diagnostics, and is field-convertible to propane. The coil is R454B compatible and includes a factory-installed TXV for use with AC-only or heat pump condensers.

• 60,000 BTU input, 96% AFUE single-stage natural gas furnace; multi-positional (upflow/downflow/horizontal); ECM blower, maximum 1330 CFM
• EAM5X19M17A 1.5 ton cased evaporator coil with factory-installed TXV; compatible with R454B refrigerant and AC-only or heat pump condensers
• Field-convertible to propane with optional LP kit; coil 10 year parts limited warranty

Product Highlights

Matched 60,000 BTU furnace and 1.5 ton cased evaporator coil, multi-positional installation, ECM blower, factory TXV, R454B compatible, Energy Star certified furnace

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N96MSN0601716A / EAM5X19M17A

Technical Specifications

• Brand: ACIQ
• Furnace model (MPN): N96MSN0601716A
• Coil model (MPN): EAM5X19M17A
• System type: Furnace and cased evaporator coil matched system
• Furnace AFUE: 96%
• Furnace input BTU: 60,000
• Furnace output BTU: 57,600
• Blower motor: ECM
• Maximum airflow (CFM): 1330
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Burner stages: Single
• Fuel type: Natural Gas (field-convertible to Propane with optional LP kit)
• AHRI certificate number: 213148506
• Energy Star certified (furnace): Yes
• Furnace dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Furnace weight: 138.0 lbs
• Coil tonnage: 1.5 Ton
• Coil style: A-Coil (cased evaporator)
• Coil refrigerant: R454B
• Coil liquid line diameter: 3/8 in
• Coil suction line diameter: 5/8 in
• Coil connection: Sweat
• Coil configuration: Multi-positional
• Coil dimensions (H x W x D): 25 13/16 in x 17.5 in x 20 5/8 in
• Coil weight: 66.5 lbs
• Coil certification: UL Listed
• Notes on venting: 96% AFUE requires plastic/PVC flue venting; not suitable for metal flue without using an 80% efficient furnace
• Equivalent models: Carrier equivalent 59SC5B060E17--14; Tempstar equivalents TN95ESN0601714A / EAM4X18L14A; Bryant equivalents 915SB42060E17 / CAPMP1814ALA
