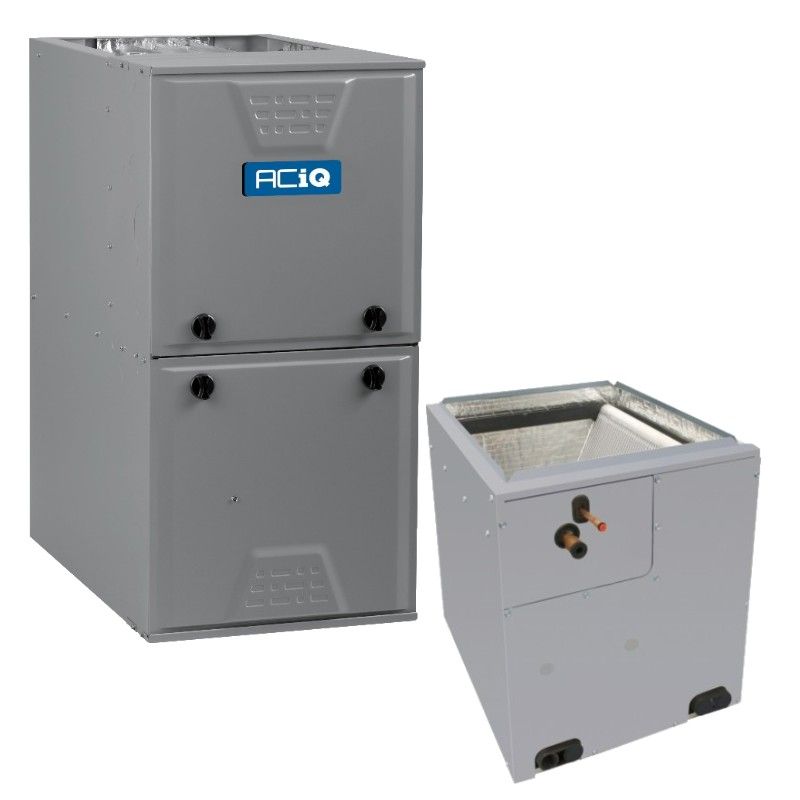

Aciq N96MSN0401712A / EVD5X31M17A 40,000 BTU 2.5 Ton 96% AFUE Furnace and Coil System (17.5 inches Width)

Product Description

The Aciq N96MSN0401712A / EVD5X31M17A is a matched furnace and evaporator coil system combining a 96% AFUE 40,000 BTU single-stage natural gas furnace with a 2.5 ton vertical cased v-coil for upflow/downflow applications. The furnace features a multi-speed ECM blower and is field-convertible to propane; the coil includes a factory-installed TXV, fully insulated casing, and PBT corrosion-resistant drain pan.

• 96% AFUE single-stage natural gas furnace, 40,000 BTU input, multi-speed ECM blower, maximum CFM 1010; electrical 120 V, 1 phase, 60 Hz; field-convertible to propane
• 2.5 ton vertical cased V-coil, 17.5" width, factory-installed TXV, fully insulated cased coil, PBT corrosion-resistant drain pan; refrigerant R454B; liquid line 3/8" and suction line 3/4" with sweat connections
• Multi-positional installation (upflow/downflow/horizontal), requires plastic/PVC exhaust flue, AHRI certified (furnace 213148758)

Product Highlights

Matched high-efficiency furnace and vertical cased coil for retrofit systems with factory TXV, multi-positional installation, and PVC flue requirement.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N96MSN0401712A / EVD5X31M17A

Technical Specifications

• Brand: ACiQ
• MPN: N96MSN0401712A / EVD5X31M17A
• Furnace MPN: N96MSN0401712A
• Coil MPN: EVD5X31M17A
• Furnace AFUE: 96%
• Heating Capacity (Furnace Input): 40,000 BTU
• Furnace Burner Stages: Single
• Blower Motor: Multi Speed - ECM
• Maximum CFM: 1010
• Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Fuel Type: Natural Gas (field convertible to Propane with optional LP kit)
• Input Voltage: 120 V, 1 Phase, 60 Hz
• Exhaust Flue Requirement: Plastic / PVC
• Furnace Dimensions: 35 x 17.5 x 29.5 inches
• Coil Tonnage: 2.5 Ton
• Coil Width: 17.5"
• Coil Style: V-Coil, vertical cased
• Coil Configuration: Upflow / Downflow
• Coil Refrigerant: R454B
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Connection: Sweat
• Coil Certification: UL Listed
• Coil Dimensions: 25.8125 x 17.5 x 20.625 inches
• Coil Features: Factory-installed TXV kit, fully insulated cased V-coil, PBT corrosion-resistant drain pan
• AHRI Certificate Number (Furnace): 213148758
• Energy Star (Furnace): Yes
• Equivalent Models (Furnace): Carrier 59SC5B040E17--12; Tempstar TN95ESN0401712A; Bryant 915SB36040E17
• Equivalent Models (Coil): Carrier CVPVA1814XMC; Tempstar END4X18L14A; Bryant CNPVP1814ALA
• Product ID: 211464
