Aciq N96MSN0401712A 1.5 Ton 96% AFUE 40,000 BTU Furnace and Coil System (Multi-Positional) Replacement MPN EAM5X19M17A

Product Description

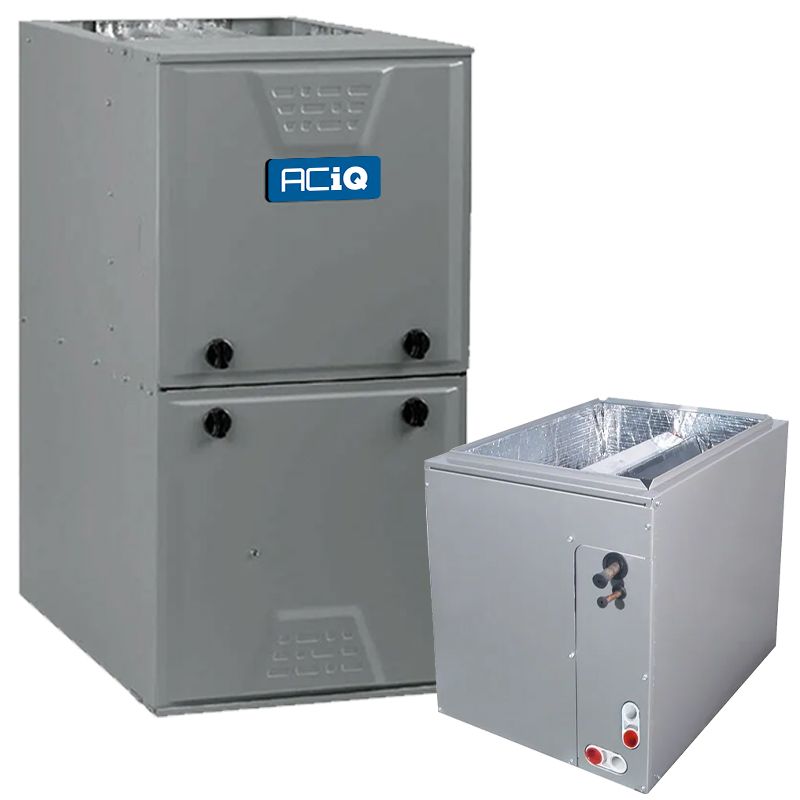

ACIQ N96MSN0401712A / EAM5X19M17A is a matched indoor furnace and evaporator coil system that provides 40,000 BTU input heating and a 1.5 ton multi-positional cased coil. The single-stage natural gas furnace delivers 96% AFUE with a multi-speed ECM blower, onboard self-diagnostics, and requires plastic/PVC flue venting. The coil includes a factory-installed TXV for R454B, sweat connections, and is compatible with AC-only or heat pump condensers.

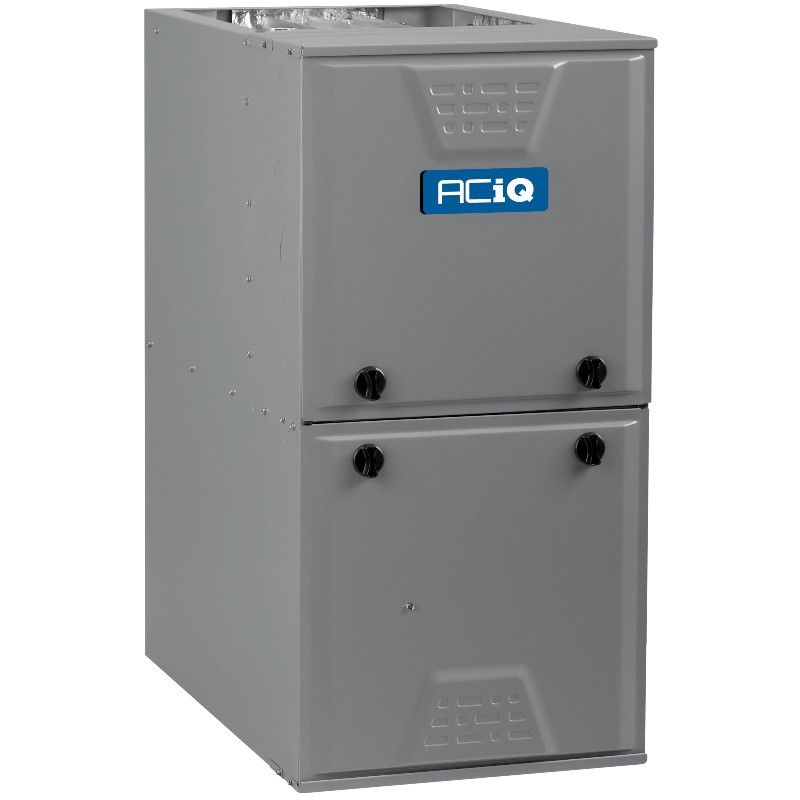

• 40,000 BTU input single-stage furnace, 96% AFUE, multi-speed ECM blower, maximum 1010 CFM
• Multi-positional installation (upflow, downflow, horizontal); field-convertible to propane with optional LP kit; requires plastic/PVC flue

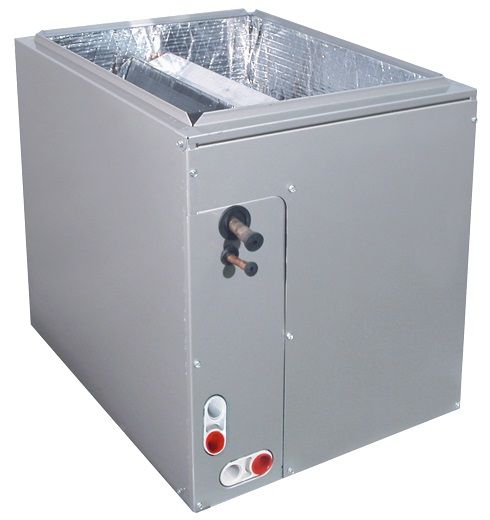

• 1.5 ton multi-positional cased evaporator coil with factory-installed TXV for R454B; sweat connections (3/8" liquid, 5/8" suction)

Product Highlights

Matched 40,000 BTU furnace and 1.5 ton cased coil with factory TXV for R454B; Energy Star certified; multi-positional installation

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N96MSN0401712A / EAM5X19M17A

Technical Specifications

• Brand: ACIQ
• Furnace model: N96MSN0401712A
• Coil model: EAM5X19M17A
• Product ID: 211452
• Heating Capacity (Input): 40,000 BTU
• AFUE Efficiency: 96%
• Burner Stages: Single
• Blower Motor: Multi-speed ECM
• Maximum Airflow: 1010 CFM
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Fuel Type: Natural Gas (field-convertible to Propane with kit)
• Exhaust Flue Requirement: Plastic / PVC
• Input Voltage: 120 V AC, 1 Phase, 60 Hz
• Coil Tonnage: 1.5 Ton
• Coil Refrigerant: R454B
• Coil Connection: Sweat
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 5/8"
• Coil Style: A-Coil / Multi-positional cased evaporator
• Furnace Cabinet Width: 17.5"
• Furnace Height: 35"
• Furnace Depth: 29.5"
• Coil Height: 25 13/16"
• Coil Width: 17 1/2"
• Coil Depth: 20 5/8"
• AHRI Certificate Number: 213148758
• Certifications: Energy Star (furnace); UL Listed (coil)
• Features: Factory-installed TXV on coil; Onboard self-diagnostics; Compatible with AC-only and heat pump condensers; Field-convertible to propane with optional LP kit
• Equivalent models (furnace): Carrier 59SC5B040E17--12; Tempstar TN95ESN0401712A; Bryant 915SB36040E17
• Equivalent models (coil): Carrier CAPMP1814ALA; Tempstar EAM4X18L14A; Bryant CAPMP1814ALA
