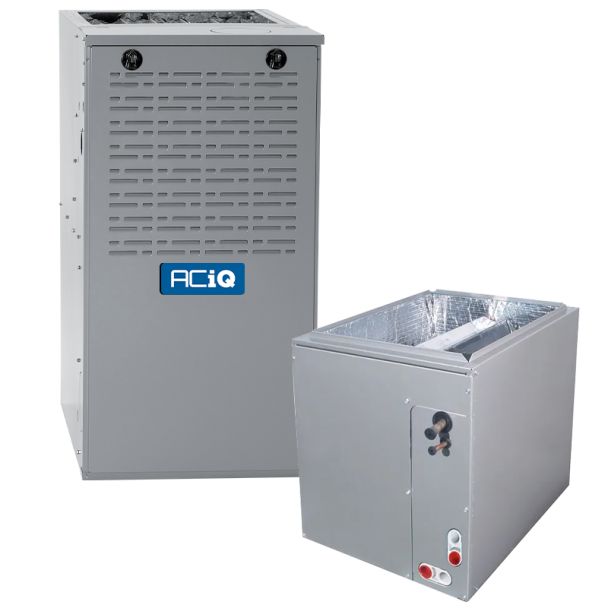

Aciq N80MSN1102420A / EAM5X48M24A 110,000 BTU 4 ton furnace and coil system (multi-positional) replaces EAM4X48L24A

Product Description

The ACIQ N80MSN1102420A / EAM5X48M24A is a matched indoor furnace and evaporator coil system that pairs a 110,000 BTU 80% AFUE single-stage natural gas furnace with a 4-ton multi-positional cased coil using R454B refrigerant. The furnace features a multi-speed ECM blower, direct ignition with a silicon nitride hot surface ignitor, and is field-convertible to propane with an optional LP kit. The coil includes a factory-installed TXV and supports upflow, downflow, or horizontal installation; metal flue venting is required for the 80% furnace.

• 110,000 BTU, 80% AFUE single-stage furnace with multi-speed ECM blower and silicon nitride hot surface ignitor
• 4 Ton 24.5" multi-positional cased evaporator coil with factory-installed TXV using R454B refrigerant
• Supports upflow/downflow/horizontal installation; furnace field-convertible to propane with optional LP kit; metal flue required

Product Highlights

Matched 110,000 BTU furnace and 4-ton R454B cased coil for multi-positional installation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N80MSN1102420A / EAM5X48M24A

Technical Specifications

• Model / MPN: N80MSN1102420A / EAM5X48M24A
• Furnace SKU: N80MSN1102420A
• Coil SKU: EAM5X48M24A
• Heating Capacity (BTU): 110,000
• AFUE: 80%
• Tonnage: 4 Ton
• Refrigerant: R454B
• Coil Width: 24.5"
• Coil Height: 35"
• Coil Depth: 20 5/8"
• Coil Liquid Line: 3/8"
• Coil Suction Line: 7/8"
• Coil Style: A-Coil / cased evaporator coil
• Coil Connection: Sweat
• Coil Certification: UL Listed
• Coil Weight: 90.50 lbs
• Coil Replaces: EAM4X48L24A
• Coil Equivalent: Carrier Equivalent: CAPMP2414ALA; Tempstar Equivalent: EAM4X24L14A; Bryant Equivalent: CAPMP2414ALA
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Coil Configuration: Multi-Positional (upflow, downflow, horizontal)
• Furnace Blower Motor: Multi-Speed ECM
• Maximum CFM: 2005
• Electrical: 115 V, 1 Phase, 60 Hz
• Max Breaker Size: 15 Amps
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Burner Stages: Single
• Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Exhaust Flue Requirement: Metal
• Furnace Weight: 161.00 lbs
• Furnace Dimensions (H x W x D): 33 1/3" x 24 1/2" x 29"
• AHRI Certificate Number: 213146145
• Furnace Equivalent: Carrier Equivalent: 58SB0A110E24--20; Tempstar Equivalent: TN80ESN1102420A; Bryant Equivalent: 810SA60110E24
• Notes: Package requires compatible condenser and blower/furnace; not Low NOx compliant (may have mitigation fee for California).
