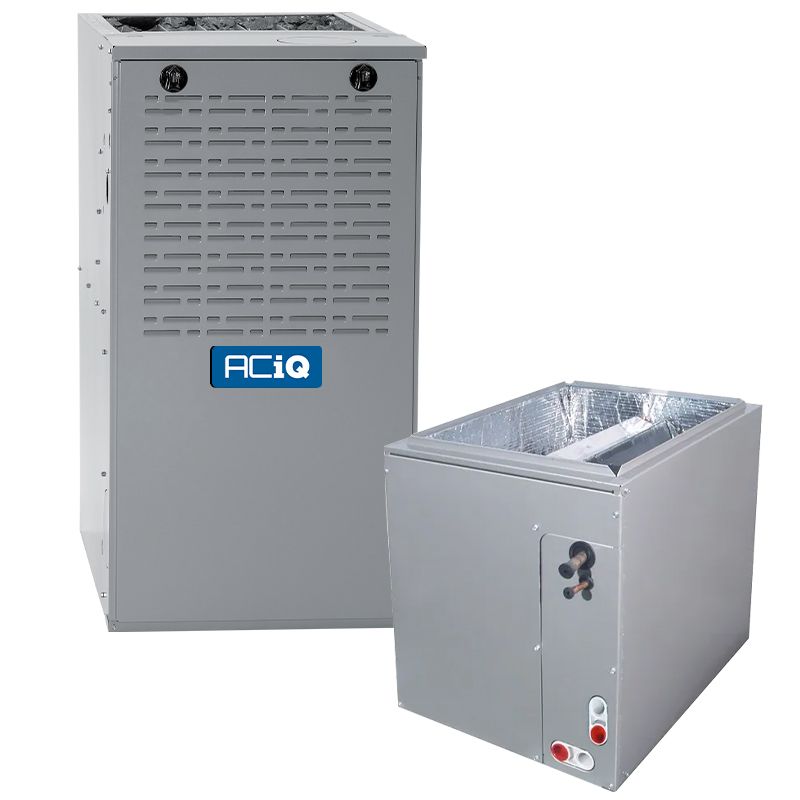

Aciq N80MSN0902420A / EAM5X48M24A 4 Ton 80% AFUE 88,000 BTU Furnace and Coil System Multi-Positional (24.5 in) Replacement EAM5X48M24A

Product Description

The ACIQ N80MSN0902420A / EAM5X48M24A is a matched indoor furnace and evaporator coil system that pairs an 88,000 BTU 80% AFUE single-stage natural gas furnace with a 4-ton multi-positional cased evaporator coil featuring a factory-installed TXV. The furnace uses a multi-speed ECM blower, direct ignition with a silicon nitride hot surface ignitor, requires metal flue venting, and is field-convertible to propane with an optional LP kit.

• Furnace: 88,000 BTU input, 80% AFUE single-stage burner, multi-speed ECM blower, direct silicon nitride hot surface ignition.

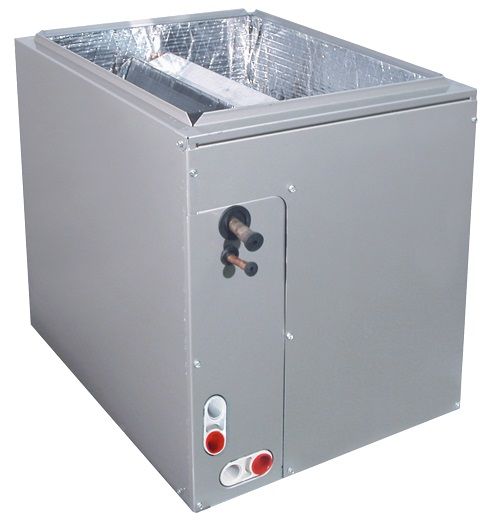

• Coil: 4 ton A-coil, multi-positional, factory-installed TXV, compatible with AC-only or heat pump condensers; refrigerant R454B; sweat connections (3/8 in liquid, 7/8 in suction).
• Electrical and installation: 115V 1 phase 60 Hz, max breaker 15 Amps, cabinet width 24.5 in, metal exhaust flue required.

Product Highlights

Matched 88,000 BTU 80% AFUE furnace with 4-ton R454B multi-positional coil, factory TXV, multi-speed ECM blower, direct ignition, metal flue requirement.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N80MSN0902420A / EAM5X48M24A

Technical Specifications

• Brand: ACiQ
• Model / MPN: N80MSN0902420A / EAM5X48M24A
• Furnace MPN: N80MSN0902420A
• Coil MPN: EAM5X48M24A
• System type: Furnace and coil system
• Furnace heating BTU (input): 88,000 BTU
• Furnace output BTU: 70,400 BTU (approx.)
• AFUE: 80%
• Coil tonnage: 4 Ton (48,000 BTU)
• Furnace configuration: Upflow/Downflow/Horizontal (multi-positional)
• Coil configuration: Multi-positional (upflow, downflow, horizontal)
• Burner stages: Single-stage
• Blower motor: Multi-speed ECM
• Maximum CFM: 1960
• Ignition type: Direct ignition with silicon nitride hot surface ignitor
• Fuel type: Natural Gas
• Field-convertible to propane: Yes (with optional LP kit)
• Exhaust flue requirement: Metal
• Electrical: 115V, 1 Phase, 60 Hz
• Max breaker size: 15 Amps
• Coil refrigerant: R454B
• Coil connection: Sweat
• Coil liquid line size: 3/8 inch
• Coil suction line size: 7/8 inch
• Coil width: 24.5 inches
• Cabinet width: 24.5 inches
• Furnace height: 33.333 inches
• Furnace depth: 29.0 inches
• Coil height: 35.0 inches
• Coil depth: 20.625 inches
• Certifications: UL Listed (coil)
• AHRI certificate number: 213146142
• Coil factory feature: Factory-installed TXV kit
• Compatible with: AC-only or heat pump condensers
• Replaces / Equivalent: Carrier Equivalent: CAPMP2414ALA; Tempstar Equivalent: EAM4X24L14A; Bryant Equivalent: CAPMP2414ALA
