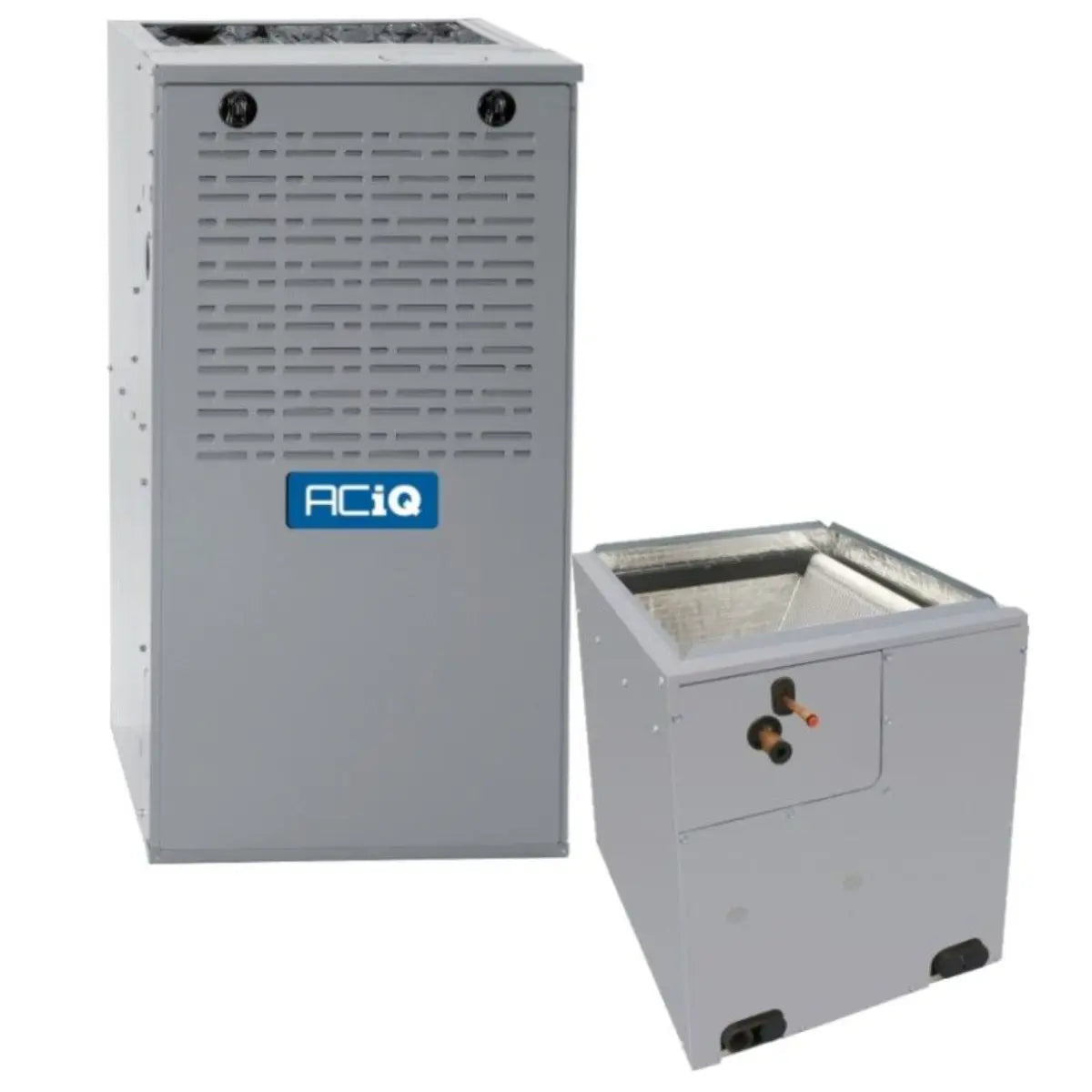

Aciq N80MSN0901714A Furnace and Coil System 88,000 BTU (1.5 Ton) EAM5X19M17A

Product Description

Aciq N80MSN0901714A paired with coil EAM5X19M17A is a matched 1.5 ton furnace and evaporator coil system providing 88,000 BTU input at 80% AFUE. The multi-positional furnace includes a single-stage burner, multi-speed ECM blower, direct ignition with a silicon nitride hot surface ignitor, 115 V 1-phase electrical, and requires metal flue venting. The 17.5-inch wide A-coil is multi-positional with a factory-installed TXV and uses R454B refrigerant.

• 88,000 BTU input furnace with 80% AFUE, single-stage burner and multi-speed ECM blower
• Multi-positional design (upflow/downflow/horizontal) for both furnace and cased A-coil; furnace width 17 1/2"; coil dimensions 17 1/2" W x 25 13/16" H x 20 5/8" D
• Coil uses R454B refrigerant with factory-installed TXV and sweat connections; furnace electrical 115 V 1 ph 60 Hz, max breaker 15 Amps, max airflow 1210 CFM

Product Highlights

Matched indoor replacement system (1.5 ton) with multi-positional furnace and A-coil, factory TXV on coil, field-convertible to propane.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N80MSN0901714A / EAM5X19M17A

Technical Specifications

• Brand: Aciq
• Furnace MPN: N80MSN0901714A
• Coil MPN: EAM5X19M17A
• Tonnage: 1.5 Ton
• Heating BTU (input): 88,000
• AFUE: 80%
• Configuration: Multi-positional (Upflow/Downflow/Horizontal)
• Furnace Width: 17 1/2"
• Furnace Height: 33 1/3"
• Furnace Depth: 29"
• Coil Width: 17 1/2"
• Coil Height: 25 13/16"
• Coil Depth: 20 5/8"
• Coil Refrigerant: R454B
• Coil Liquid Line: 3/8"
• Coil Suction Line: 5/8"
• Coil Connection: Sweat
• Coil Style: A-Coil (Multi-positional, factory TXV kit)
• Coil Certification: UL Listed
• Blower Motor: Multi-Speed ECM
• Maximum CFM: 1210
• Electrical: 115 V 1 Phase 60 Hz
• Max Breaker Size: 15 Amps
• Burner Stages: Single
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural Gas (field convertible to Propane with optional LP kit)
• Exhaust Flue Requirement: Metal
• Furnace MPN Equivalent Models: Carrier 58SB0A090E17--14; Tempstar TN80ESN0901714A; Bryant 810SA42090E17
• Coil Equivalent Models: Carrier CAPMP1814ALA; Tempstar EAM4X18L14A; Bryant CAPMP1814ALA
• Coil Replaces: EAM4X19L17A
• Furnace AHRI Certificate Number: 213146139
• System ID: 212155
