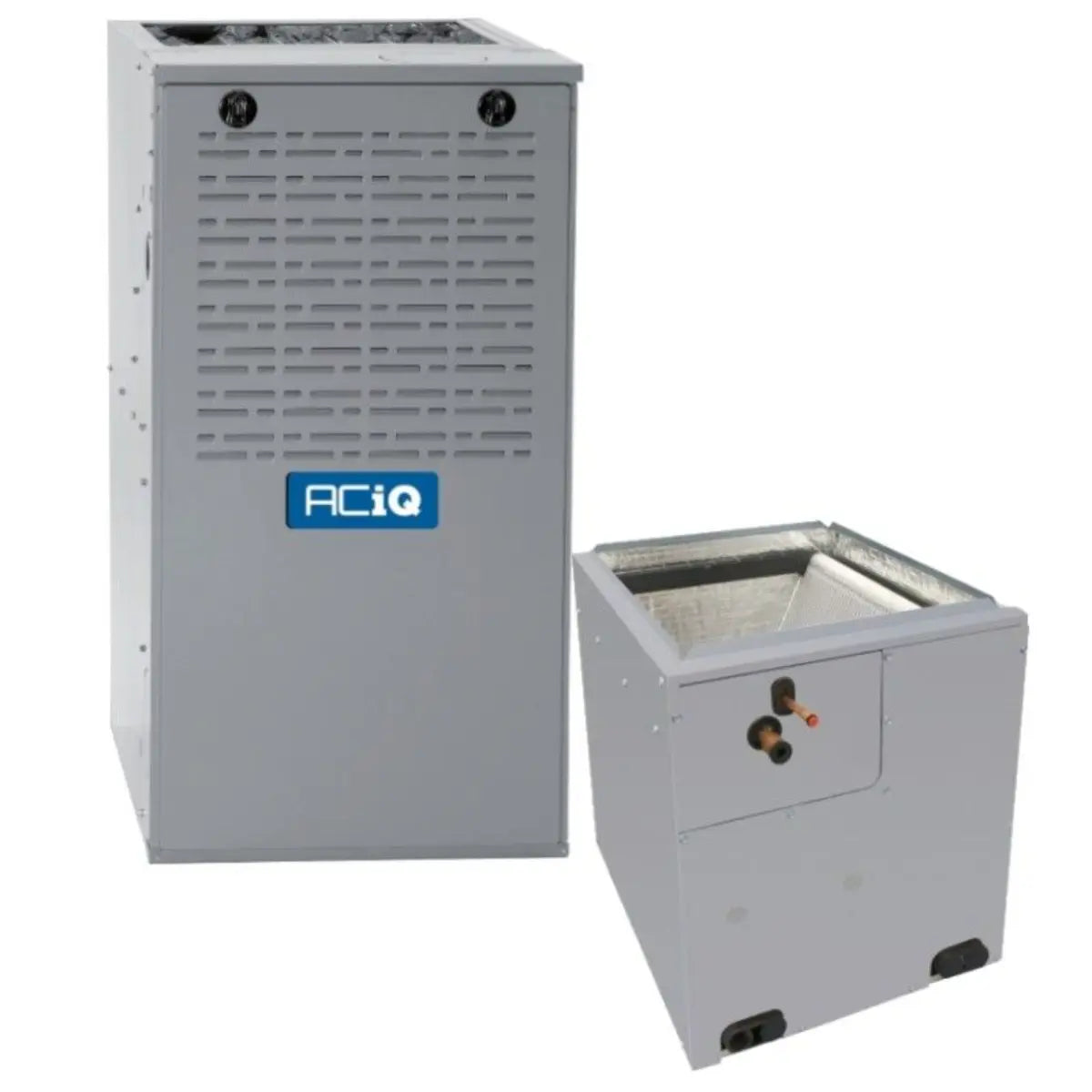

Aciq N80MSN0901714A / EVD5X31M17A 2.5 Ton 80% AFUE 88,000 BTU Furnace and Coil System (17.5 in Width)

Product Description

ACiQ N80MSN0901714A / EVD5X31M17A is a matched furnace and evaporator coil system combining an 88,000 BTU input, 80% AFUE single-stage natural gas furnace with a 2.5 ton vertical cased V-coil. The furnace is multi-positional (upflow/downflow/horizontal), features a multi-speed ECM blower with up to 1210 CFM and direct ignition with a silicon nitride hot surface ignitor. The coil includes a factory-installed TXV, sweat connections, and is charged for R454B refrigerant.

• Furnace: 88,000 BTU input, 80% AFUE, single-stage, 115 V 1 Phase 60 Hz electrical, metal flue required
• Coil: 2.5 ton vertical cased V-coil, 17.5 in width, factory-installed TXV, 3/8 in liquid and 3/4 in suction sweat connections, R454B refrigerant
• Common: Multi-positional installation (upflow/downflow/horizontal), multi-speed ECM blower (up to 1210 CFM)

Product Highlights

Matched 88,000 BTU furnace and 2.5 ton cased evaporator coil for upflow/downflow installations; factory-installed TXV; R454B refrigerant; multi-speed ECM blower.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N80MSN0901714A / EVD5X31M17A

Technical Specifications

• Brand: ACiQ
• Model / MPN: N80MSN0901714A / EVD5X31M17A
• Product ID / SKU: 212173
• Furnace SKU: N80MSN0901714A
• Coil SKU: EVD5X31M17A
• Furnace Heating BTU: 88,000
• Furnace AFUE: 80%
• Furnace Burner Stages: Single
• Furnace Blower Motor: Multi-Speed ECM
• Furnace Maximum CFM: 1210
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Electrical (Input Voltage): 115 V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Exhaust Flue Requirement: Metal
• Furnace Dimensions (H x W x D): 33 1/3 in x 17 1/2 in x 29 in
• Furnace Weight: 131 lb
• Furnace AHRI Certificate Number: 213146139
• Coil Tonnage: 2.5 Ton
• Coil Style: V-Coil (cased, fully insulated)
• Coil Configuration: Upflow / Downflow
• Coil Width: 17 1/2 in
• Coil Height: 25 13/16 in
• Coil Depth: 20 5/8 in
• Coil Refrigerant: R454B
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 3/4 in
• Coil Connection Type: Sweat
• Coil Certification: UL Listed
• Coil Features: Factory-installed TXV kit; corrosion-resistant PBT drain pan; fully insulated cased V-coil
• Equivalent / Replaces (Furnace): Carrier 58SB0A090E17--14; Tempstar TN80ESN0901714A; Bryant 810SA42090E17
• Equivalent / Replaces (Coil): Carrier CVPVA1814XMC; Tempstar END4X18L14A; Bryant CNPVP1814ALA
